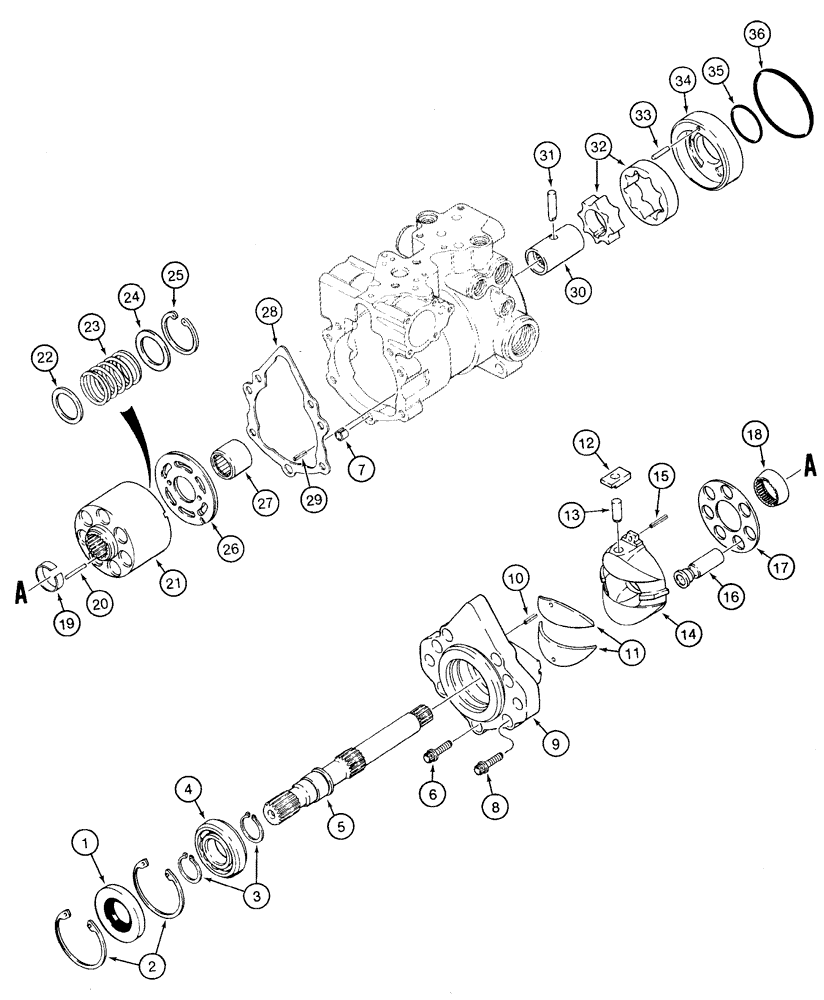

Запчасти Case IH 1835C (6-42) - TANDEM PUMP ASSEMBLY REAR DRIVE PUMP CYLINDER BLOCK AND SHAFT (06) - POWER TRAIN

H672849

PUMP

ASSEMBLY, tandem, Sundstrand No. M91-46209, see Figure 6-24 - 6-42, no longer available, order P/N 127930A1R pump for service, Includes: Ref. 1 - 14, Start Serial: 17940460

1шт.

H672996

PUMP

ASSEMBLY, tandem, Sundstrand No. M91-46223, see Figure 6-24 - 6-42, no longer available, order P/N 127930A1R pump for service, Includes: Ref. 1 - 14, Serial Range: 17940460-JAF0013277

1шт.

H673152

PUMP

ASSEMBLY, tandem, Sundstrand No. M91-46262, see Figure 6-24 - 6-42, no longer available, order P/N 127930A1R pump for service, Includes: Ref. 1 - 14, Serial Range: JAF0013278-JAF0037366

1шт.

H673667

PUMP

ASSEMBLY, tandem, Sundstrand No. M91-46262, see Figure 6-24 - 6-42, no longer available, order P/N 127930A1R pump for service, Includes: Ref. 1 - 14, Serial Range: JAF0037367-JAF0118499

1шт.

127930A1

PUMP

ASSEMBLY, tandem, Sundstrand No. M91-46139, see Figure 6-24 - 6-42, order P/N 127930A1R remanufactured pump, service replacement for all pumps, Includes: Ref. 1 - 14, Start Serial: JAF0118500

1шт.

127930A2

PUMP

1шт.

127930A2R

PUMP

Remanufactured PUMP - N.A. Only

1шт.

127930A2C

PUMP

Return No, PUMP - N.A. Only

1шт.

1

N14103

SEAL

bearing

1шт.

2

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

Ring, Snap, , Seal 2.812", Int, #281

2шт.

3

100-11137

SNAP RING,#137, Ext

Ring, Snap, , shaft, bearing #137, Ext

2шт.

4

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING ball, rear cover

1шт.

5

N13244

SHAFT

rear, tandem

1шт.

6

27279R1

12 PT SCREW,Flg, 3/8" - 16 x 1"

BOLT - 12 point flange, 3/8 NC x 1 inch, grade 8, If used

6шт.

6

223677A1

SCREW,Torx, 7/16"

torx head, special, 7/16 inch, Replaces: P/N 80-1716, 12 point flange bolt, if used

6шт.

7

N13994

SPACER

PIN roll, special, cover locating

1шт.

8

223680A1

SPECIAL BOLT,Torx, 3/8"

SCREW torx head, special, 3/8 inch, Replaces: P/N N14479 bolt

2шт.

9

N13991

COVER

P/N's H672849, H672996 or H673152 pump

1шт.

9

H436703

COVER

P/N H673667 or 127930A1 pump

1шт.

10

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, , Used with P/N N14472 journal 1/8" x 3/8", Slotted

2шт.

10a

193494A1

PIN, ROLL

PIN flanged, used with P/N 193488A1 journal, not shown

2шт.

11

N14472

BEARING

JOURNAL bearing, used with P/N 138-51 roll pin

1шт.

11a

193488A1

BEARING LINER

JOURNAL bearing, used with P/N 193494A1 flanged pin, Replaces: P/N N14472 journal, not shown

2шт.

12

N13224

SLEEVE

RETAINER pin

1шт.

178632A1

COVER

PLATE ASSEMBLY, swash, block, Includes: Ref. 13 - 15

1шт.

13

N13254

PIN

swash plate

1шт.

14

NSS

NOT SOLD SEPARAT

PLATE swash block

1шт.

15

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, 1/4" x 3/4", Slotted

1шт.

140008A1

GASKET KIT

KIT seal, overhaul P/N 12930A1 pump, component parts not serviced seperately

1шт.

REF

INSTRUCTION

PUMP ASSEMBLY, tandem, pump options are P/N's H672849, H672996, H673152, H673667 and H127930A1, Includes: P/N 115952A1 and Ref. 16 - 36

1шт.

115952A1

SET

BLOCK ASSEMBLY, cylinder, Replaces: P/N 4902/10015 block assembly, Includes: Ref. 16 - 25

1шт.

16

NSS

NOT SOLD SEPARAT

PISTON cylinder block

7шт.

17

NSS

NOT SOLD SEPARAT

RETAINER piston

1шт.

18

115942A1

GUIDE

retainer, Replaces: P/N 4902/10008 guide

1шт.

19

115943A1

SNAP RING

RING retaining, Replaces: P/N 4902/10009 ring

1шт.

20

110873A1

PIN,2.38mm OD x 33.53mm L

retaining, Serial Range: guide-shaft

3шт.

21

115944A2

CYLINDER BLOCK

BLOCK, Replaces: P/N 4902/10011 block

1шт.

22

115946A1

WASHER

WASHER spring, outer, Replaces: P/N 4902/10012 seat

1шт.

23

115948A1

SPRING

cylinder block, Replaces: P/N 4902/10013 spring

1шт.

24

115950A1

WASHER

WASHER spring, inner, Replaces: P/N 4902/10014 seat

1шт.

25

NSS

NOT SOLD SEPARAT

RING snap, spring

1шт.

26

N14467

LARGE PLATE

PLATE valve; BSN JAF0118500, Start Serial: JAF0118500

1шт.

26

128928A1

LARGE PLATE

PLATE valve, right-hand rotation, inner, cylinder block; ASN JAF0118500, Start Serial: JAF0118500

1шт.

27

1277297C1

NEEDLE BEARING

needle, shaft

1шт.

28

H436704

GASKET,0.79mm Thk

cover

1шт.

29

38-11207

LOCK PIN,4.76mm OD x 11.11mm L, Slotted

Pin, 3/16" x 7/16", Slotted

1шт.

30

N13234

COUPLING, BREAK AWAY

COUPLING pump shaft

1шт.

31

N13262

PIN

shaft

1шт.

32

N13247

GEAR-SET

GEAR set, gerotor

1шт.

33

181680A1

PIN,3/16" OD x 13/16" L

locating, 3/16 x 13/16 inch

1шт.

34

N13999

PLATE,3.9985" OD x 1.58" ID

COVER gerotor

1шт.

35

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

P/N H672849 pump -224, 70 Duro, 1.734" ID x .139" Thk

1шт.

35

H435776

O-RING,44.04mm ID x 51.10mm OD x 7.06mm W

cover, P/N's H672996, H673152, H673667 or 127960A1 pum

1шт.

36

238-6240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

Front housing, P/N H672849 pump -240, 90 Duro, 3.734" ID x .139" Thk

1шт.

36

238-6238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 6, 90 Duro

Front housing, P/N's H672996, H673152, H673667 or 127960A1 pump -238, 90 Duro, 3.484" ID x .139" Thk

1шт.
