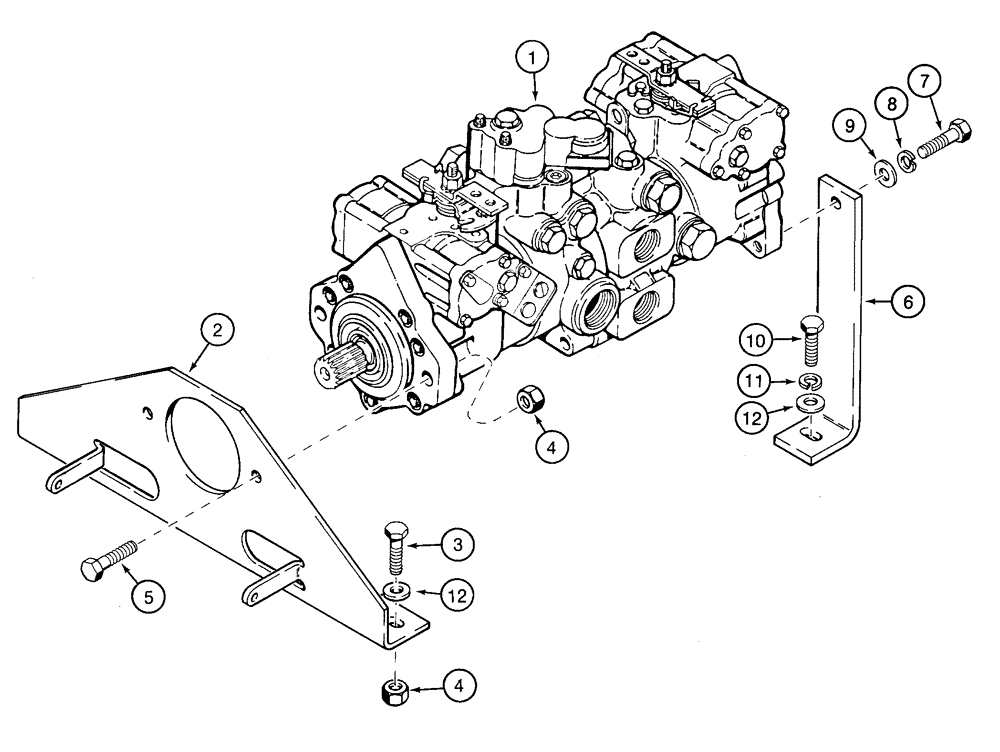

Запчасти Case IH 1835C (6-22) - TANDEM PUMP MOUNTING (06) - POWER TRAIN

1

REF

INSTRUCTION

PUMP ASSEMBLY, tandem, for pump options see Figure 6-24 - 6-42 for correct assembly and components

1шт.

2

H435416

BRACKET

pump support, rear

1шт.

3

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

4

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.

5

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

6

D134264

SUPPORT

BRACKET pump support, front

1шт.

7

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

9

195-533

WASHER,1/2", SAE

flat, 17/32 x 1-1/16 x 3/32 inch

1шт.

10

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

12

496-21053

WASHER,17/32" x 1 1/16" x .134"

flat, 17/32 x 1-1/16 x 1/8 inch, hardened, Replaces P/N 496-81021 washer

3шт.
