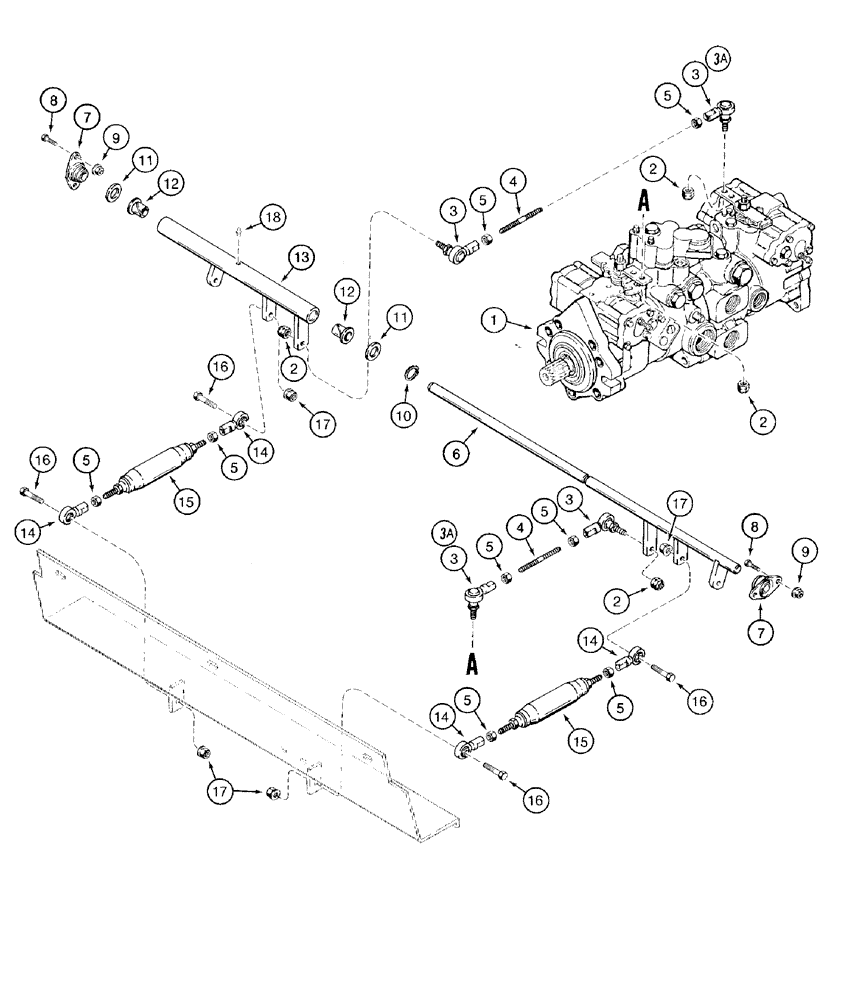

Запчасти Case IH 1835C (6-18) - TANDEM PUMP LINKAGE, P.I.N. JAF0037367 THROUGH JAF0037681 (06) - POWER TRAIN

1

H673667

PUMP

ASSEMBLY, tandem, see Figure 6-24 - 6-42, no longer available, order P/N 127930A1R remanufactured pump, see Figure 6-24 - 6-42, service replacement for all pumps

1шт.

2

231-2446

NUT,3/8"-24, GB

NUT hex, self-locking, 3/8 inch NF

4шт.

3

R47940

BALL JOINT

JOINT ball, 3/8 inch NF, if used

4шт.

3a

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

JOINT ball, with hex slot, 3/8 inch NF, if used

2шт.

4

H435922

ROD

control

2шт.

5

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

8шт.

6

H673315

SHAFT ASSY.

SHAFT cross, pump control

1шт.

7

D139039

BEARING ASSY,19mm ID

BEARING flange type, cross shaft mounting

2шт.

8

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

4шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

4шт.

10

103-1475

SNAP RING,#75, Ext

Ring, Snap, , Cross shaft to bellcrank (Replaces P/N R39773) #75, Ext

1шт.

11

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER special, hardened, spacer

2шт.

12

72323

BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L

nylon

2шт.

13

H674401

CONTROL LEVER

BELLCRANK cross shaft, used without Ref. 12 bushings

1шт.

13

H673316

CRANK

BELLCRANK cross shaft, used with Ref. 12 bushings

1шт.

14

A32398

BALL JOINT

JOINT ball, female, 3/8 inch NF

4шт.

15

D66538

SHOCK ABSORBER

ABSORBER shock, pump controls

2шт.

16

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

4шт.

17

231-5146

FLANGE NUT,3/8"-16

4шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

1шт.
