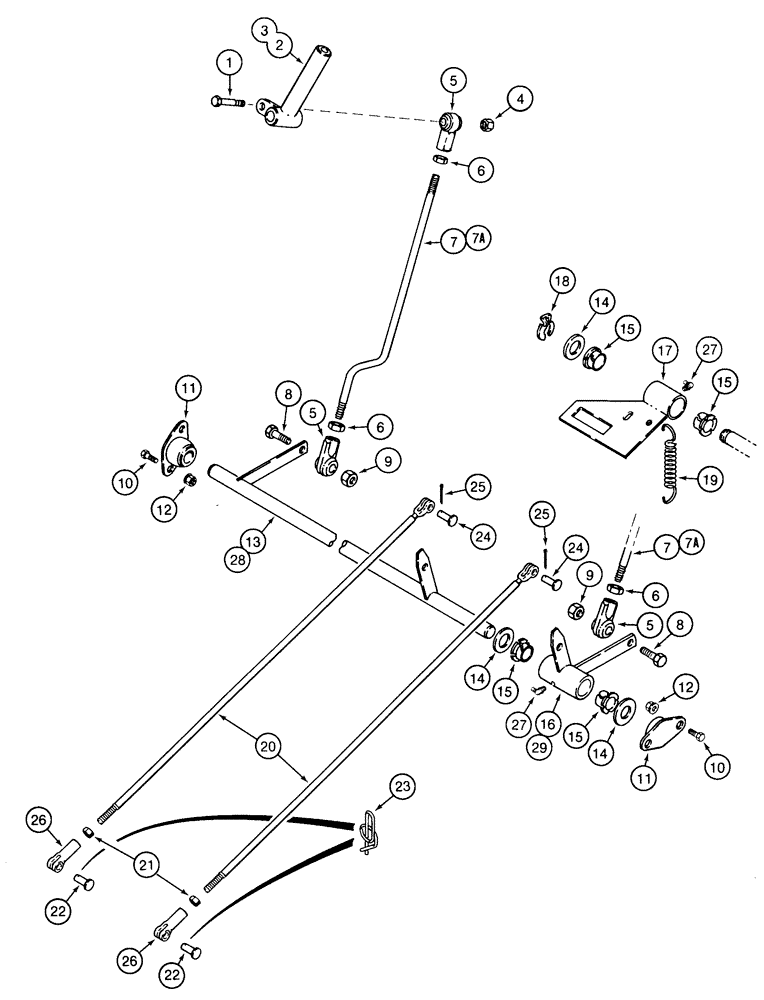

Запчасти Case IH 1835C (6-08) - LOADER CONTROLS, PRIOR TO P.I.N. JAF0037367 (06) - POWER TRAIN

1

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

2шт.

2

D128278

LEVER

pump control, left-hand

1шт.

3

D133283

LEVER

control, pump, right-hand

1шт.

4

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

5

A32398

BALL JOINT

JOINT ball, female, 3/8 inch NF, rod end, Replaces: P/N D59922 joint

4шт.

6

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

4шт.

7

D128461

ROD

loader control, used with Ref. 7 arm see Figure 6-02

2шт.

7a

D128257

ROD

control lever, to cross shaft, used with Ref. 8 and 39 arms on Figure 6-02

1шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

2шт.

9

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

10

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

4шт.

11

D139039

BEARING ASSY,19mm ID

BEARING flange type, cross shaft mounting

2шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

4шт.

13

D128462

SHAFT

cross, loader, used with Ref. 7 arm on Figure 6-02

1шт.

14

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER special, hardened, spacer

1шт.

15

119616A1

BUSHING

bronze, Replaces: P/N 72323 nylon bushing

4шт.

16

D128463

CRANK

BELLCRANK cross shaft, used with Ref. 7 arm on Figure 6-02

1шт.

17

H672918

LOCK

PLATE loader lock

1шт.

18

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

RING retaining, Replaces: P/N D95097 ring

1шт.

19

D124939

SPRING

lock, control lever

1шт.

20

D125169

ROD

loader valve connecting

2шт.

21

425-115

NUT,5/16"-24, G5

hex, 5/16 inch NF

2шт.

22

D50559

CLEVIS,9.53mm OD x 28.32mm L

PIN clevis, loader rod

2шт.

23

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

RETAINER clevis pin, special

2шт.

24

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

2шт.

25

432-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

26

H382283

YOKE,5/16" - 24

CLEVIS adjustable, special

2шт.

27

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

FITTING grease, 1/8 PT self-tap x 3/4 inch, 90°

2шт.

28

H673537

CROSS SHAFT

SHAFT cross, loader, used with Ref. 38 and 39 arms on Figure 6-02

1шт.

29

H674387

LEVER

BELLCRANK cross shaft, Replaces: P/N H673538 bellcrank, used with Ref. 38 and 39 arms on Figure 6-02

1шт.

120923A1

SET

KIT service, parking brake rod, includes instruction sheet

1шт.
