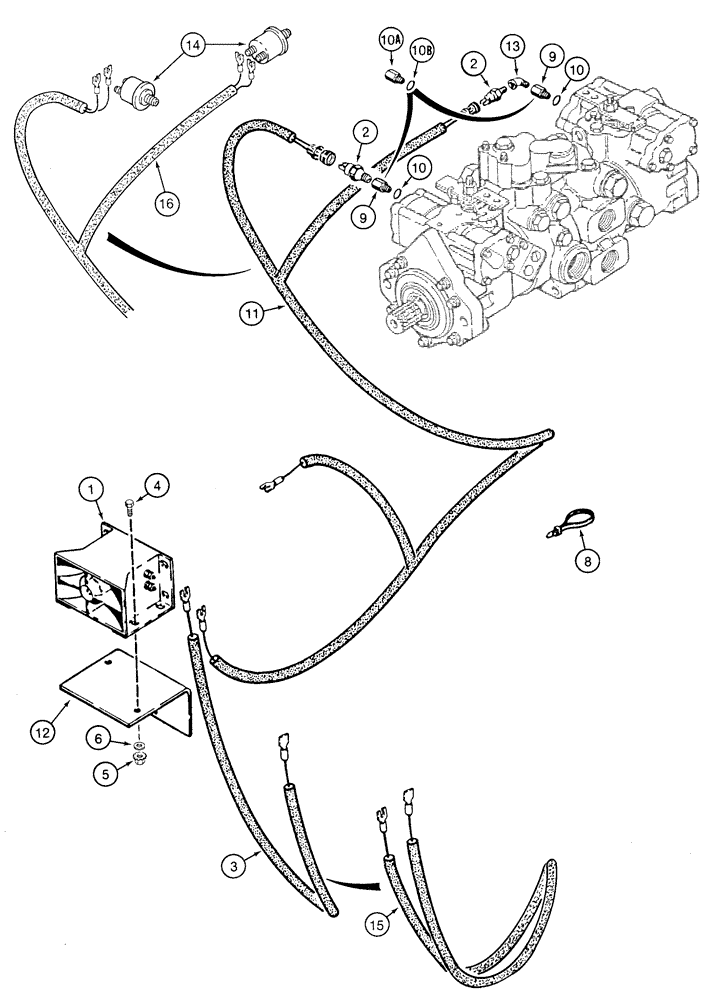

Запчасти Case IH 1835C (4-30) - BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

D121972

ALARM

backup, electric

1шт.

2

D137240

SWITCH

pressure, backup alarm, with spade type connector, no longer available, order P/N 232926A1 switch

2шт.

When replacing switch with P/N 333268A1 switch, and not replacing old harness with new harness P/N H436121, rework the harness by replacing the plastic receptacle with two, P/N 223-59, No. 8 eyelet terminals

1шт.

3

D137134

ELECTRICAL WIRE

WIRE alarm, 292 mm/11-1/2 inch long, no longer available, order P/N H436672 wire

1шт.

4

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

2шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

2шт.

6

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

9

218-5098

FITTING

ADAPTER straight, 7/16-20 O-ring boss x 1/8 inch female PT, used with P/N H672849 pump

2шт.

10

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

10a

D137424

FITTING

ADAPTER straight, 9/16-18 O-ring x 1/8 inch female PT, used with P/N H672996, P/N H673152 and P/N H673667 pumps

2шт.

10b

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

11

D137431

HARNESS

backup alarm, with plastic female connectors at switches, no longer available, order P/N H436121 harness and P/N 232926A1 switch

1шт.

12

D139818

BRACKET

mounting

1шт.

13

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

Street 90º, 1/8"-27 Female x 1/8"-27 Male

1шт.

14

333268A1

SWITCH, PRESSURE

SWITCH pressure, backup alarm, with screw type connectors, Replaces: P/N 135960A1, P/N H436246, P/N D137240 and P/N 232926A1 switches

2шт.

When replacing switch with P/N 333268A1 switch, and not replacing old harness with new harness P/N H436121, rework the harness by replacing the plastic receptacle with two, P/N 223-59, No. 8 eyelet terminals

1шт.

15

H436672

ELECTRICAL WIRE

WIRE alarm, 540 mm long

1шт.

16

H436121

HARNESS

backup alarm, with snap on eyelet connectors at switches, Replaces: P/N D137431 harness

1шт.

17

A42502

GROMMET

wire protector, not shown

1шт.
