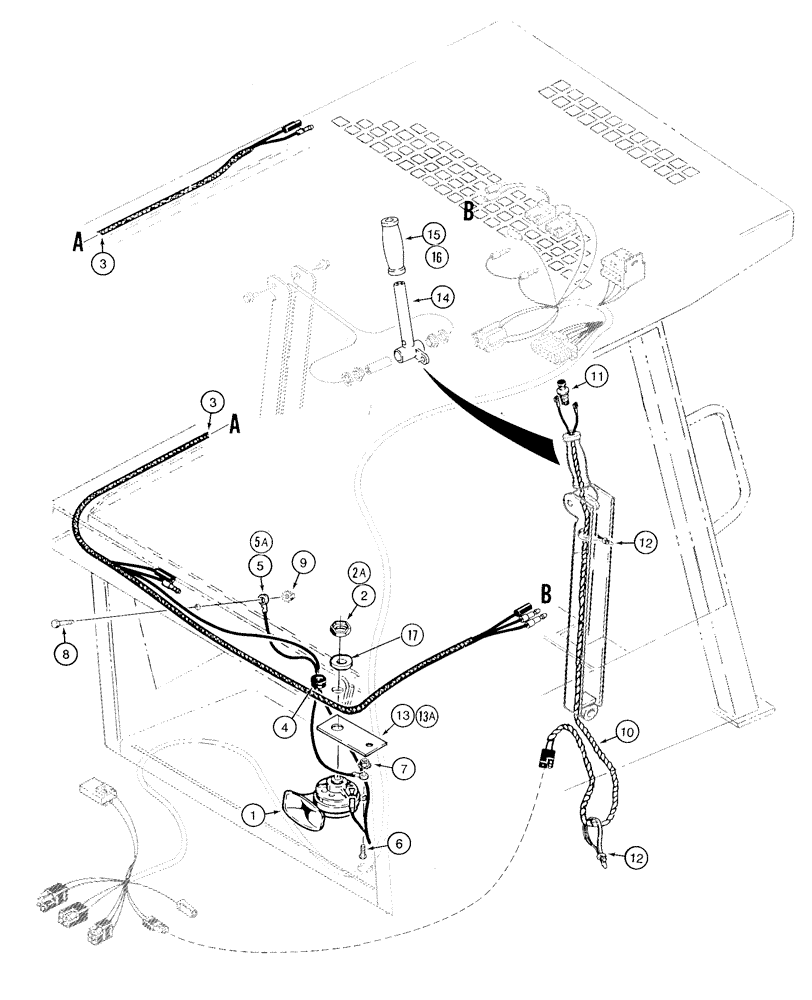

Запчасти Case IH 1835C (4-28) - HORN (04) - ELECTRICAL SYSTEMS

1

D123205

HORN

"A" note, 12 volt, no longer available, order P/N 254130A1 horn and Ref. 2A, 13A and 17

1шт.

1

254130A1

HORN

12 volt, low note

1шт.

2

L30866

LOCK NUT

hex, special, horn mounting used with P/N D123205 horn

1шт.

2a

825-1406

NUT,M6, Cl 8

Horn mounting, used with P/N 254130A1 horn M6, Cl 8

1шт.

3

D139709

HARNESS

horn and lamp

1шт.

4

248-2198

GROMMET,3/8" ID x 5/8" Groove Dia

rubber, 5/8 inch groove diameter, horn

1шт.

5

D134077

ELECTRICAL WIRE

WIRE ground, used with P/N D123205 horn

1шт.

5a

254251A1

ELECTRICAL WIRE

WIRE ground, used with P/N 254130A1 horn

1шт.

6

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, pan Phillips, No. 10 NC x 1/2 inch, used with P/N D122734 bracket

1шт.

7

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT hex, with external tooth lock washer, No. 10 NC, used with P/N D122734 bracket

1шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch

1шт.

9

193-1009

NUT,Keps, w/LW, 5/16"-18

hex, with external tooth lock washer, 5/16 NC

1шт.

10

D134076

HARNESS

horn switch

1шт.

11

D141486

SWITCH

button, horn

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

2шт.

13

D122734

SUPPORT

BRACKET horn mounting, used with P/N D123205 horn

1шт.

13a

253606A1

SUPPORT

BRACKET horn mounting, used with P/N 254130A1 horn

1шт.

14

D133283

LEVER

control, pump, used on models with horn only, right-hand side

1шт.

15

D133282

HANDLE

GRIP control lever, Includes: Ref. 16

1шт.

16

D128268

HANDLE

GRIP control lever, black

1шт.

17

493-41026

LOCK WASHER,Ext Tooth, 1/4"

WASHER external tooth lock, 1/4 inch, used with P/N 254130A1 horn

1шт.
