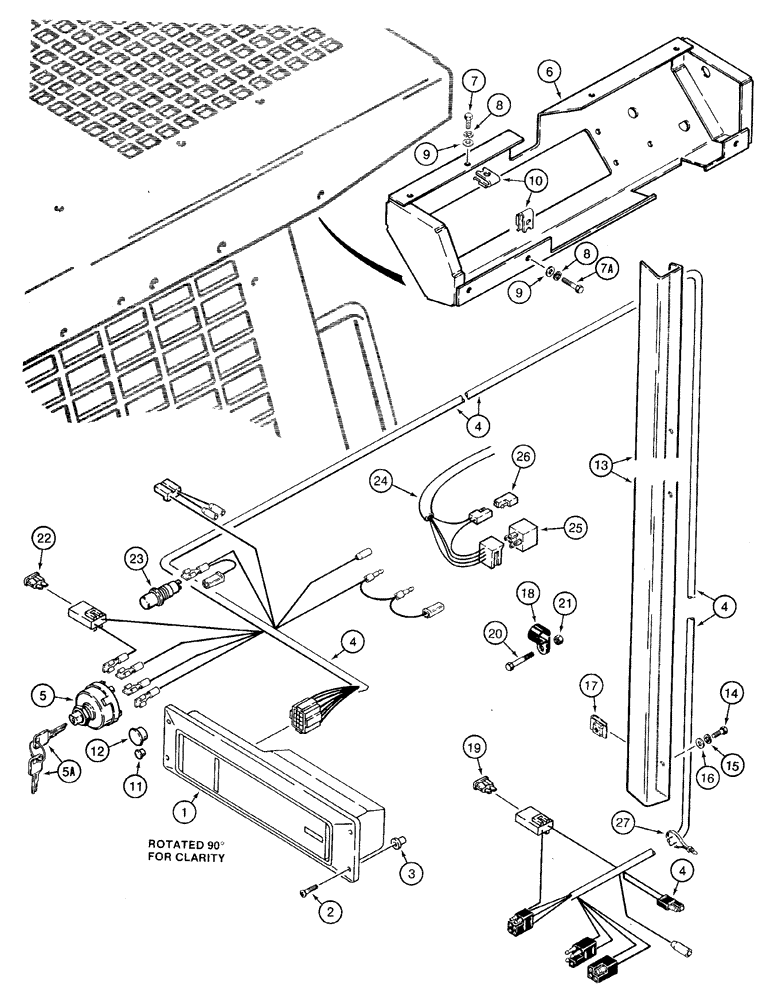

Запчасти Case IH 1835C (4-12) - FRONT HARNESS AND INSTRUMENT CLUSTER PRIOR TO P.I.N. JAF003767 (04) - ELECTRICAL SYSTEMS

1

D139479

PANEL, INSTRUMENTS

CLUSTER instrument, tractor, no longer available, order P/N H438453 cluster below and P/N H439038 harness adapter on Figure 4-14 Ref. 1A

1шт.

1

H438453

PANEL, INSTRUMENTS

CLUSTER instrument

1шт.

2

190-103

SCREW,Cross Pan Hd, #10 - 32 x 1"

machine, pan Phillips, No. 10 NF x 1 inch

4шт.

3

D122634

ISOLATOR,12.7mm OD x 14.1mm L

RETAINER screw

4шт.

4

D139145

HARNESS

front, without a relay socket, used with P/N D128959 rear harness, on Figure 4-18 Ref. 1, if used, Serial Range: -JAF0036406

1шт.

5

3107556R92

SWITCH ASSY

SWITCH ASSEMBLY, ignition, includes two keys, Replaces: P/N K203992 switch assembly, Includes: Ref. 5A

1шт.

5a

K962338

KEY

KEY ignition switch, set of two

1шт.

6

H674342

PANEL, INSTRUMENTS

PANEL instrument, Replaces: P/N D139498 panel

1шт.

7

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

hex, 1/4 NC x 3/4 inch

5шт.

7a

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

hex, 1/4 NC x 1 inch

2шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

9

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

7шт.

10

131-610

SPRING NUT,U, Ret, 1/4"-20

7шт.

11

353-402

PLUG,Dome, .375" hole, Nylon

If used Dome, .375" hole, Nylon

1шт.

12

353-407

PLUG,Dome, .687" hole, Nylon

button, 11/16 inch, gasoline models only

1шт.

13

D139504

COVER

front harness

1шт.

14

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

hex, 1/4 NC x 3/4 inch

3шт.

15

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

16

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3шт.

17

131-610

SPRING NUT,U, Ret, 1/4"-20

3шт.

18

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

P-type, Front harness 3/4", Insul, 5/16" Bolt

2шт.

19

A149804

FUSE

light green, 30 ampere

1шт.

20

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch

2шт.

21

230-4215

NUT,5/16"-18, GA

NUT hex, self-locking, 5/16 inch NC

2шт.

22

A149802

FUSE

yellow, 20 ampere

1шт.

23

H603852

LIGHT

LAMP ASSEMBLY warning, glow plug

1шт.

24

H435964

HARNESS

front, with a relay socket, used with P/N 115741A1 rear harness, see Figure 4-18 Ref. 4, if used, Serial Range: JAF0036406-JAF0037366

1шт.

25

D128310

RELAY

30 ampere, mounts in P/N H435964 harness, near instrument panel, if used

1шт.

26

L71879

DIODE ELEMENT,400V, 3A

DIODE harness, used with P/N H435964 harness, Ref. 24

1шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon 15 inch

1шт.
