Запчасти Case IH 1835C (4-04) - ALTERNATOR ASSEMBLY (04) - ELECTRICAL SYSTEMS

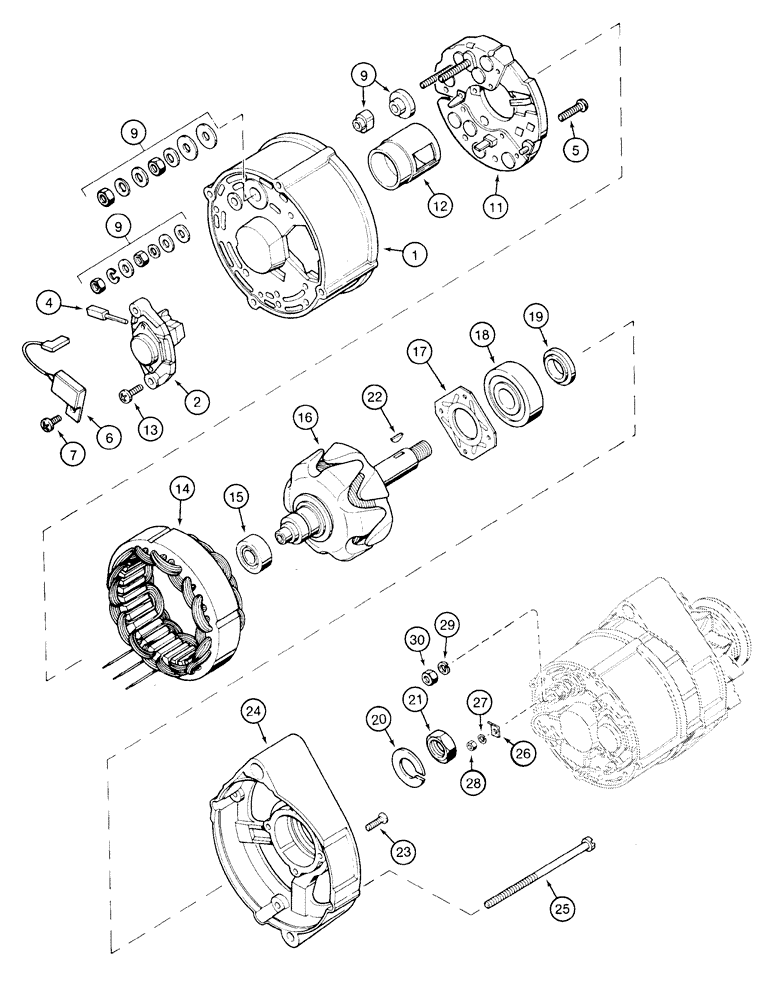

Схема запчастей Case IH 1835C - (4-04) - ALTERNATOR ASSEMBLY (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

A187873

ALTERNATOR,12V, 65A

ALTERNATOR ASSEMBLY, engine, 65 ampere, Includes: Ref. 1 - 25

1шт.

AR187873

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

AC187873

CORE-ALTERNATOR

Return Number

1шт.

A187873GV

ALTERNATOR

Value, 14V, 65 Amp

1шт.

AR186125GV

ALTERNATOR

Value

1шт.

AR186125

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

AC186125

CORE-ALTERNATOR

Return Number

1шт.

87297230

REMAN-ALTERNATOR

REMANUFACTURED 12 VOLT, 65 AMP BOSCH ALTERNATOR

1шт.

87297231

CORE-ALTERNATOR

Return Number, 12 VOLT, 65 AMP BOSCH ALTERNATOR

1шт.

1

A187903

COVER

HOUSING collector ring end

1шт.

2

A187906

VOLTAGE REGULATOR

REGULATOR voltage

1шт.

4

1964968C1

COMMUTATOR BRUSH

BRUSH alternator, set

1шт.

5

A186194

SCREW,M4 x 18mm

SCREW hex flange, special, rectifier bridge retaining

2шт.

6

3079134R1

CAPACITOR

CAPACITOR alternator

1шт.

7

1964969C1

SCREW

SCREW - special, capacitor retaining

1шт.

9

A187904

MULTIPOLE CONNECTOR

SET hardware, terminal

1шт.

11

A187917

RECTIFIER

RECTIFIER alternator

1шт.

12

A187899

INNER SHIELD

SHIELD alternator

1шт.

13

A187504

SCREW

BOLT hex flange, special, voltage regulator retaining

2шт.

15

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

BEARING ball, collector ring end

1шт.

16

1987499C1

ROTOR

ROTOR alternator, Replaces: P/N 1964964C1 rotor

1шт.

17

A187901

FIXING PLATE

PLATE bearing retaining, drive end cover

1шт.

18

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

BEARING ball, rotor, drive end

1шт.

3078897R1

SET OF PARTS

KIT rotor retaining, Includes: Ref. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

RING spacer

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER rotor shaft

1шт.

21

NSS

NOT SOLD SEPARAT

NUT rotor shaft

1шт.

22

NSS

NOT SOLD SEPARAT

KEY pulley retainer, not used in P/N A187873 alternator

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW bearing retaining plate

4шт.

24

A187994

HOUSING

HOUSING drive end, Replaces: P/N A186182 housing

1шт.

25

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

BOLT slotted, special

4шт.

26

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

TERMINAL , regular stud to harness, alternator replacement parts used when replacing P/N A186125 alternator with P/N A187873 alternator Includes: Ref. 26 - 30 Male

1шт.

27

892-11005

LOCK WASHER,M5

WASHER, LOCK, , Alternator replacement parts used when replacing P/N A186125 alternator with A187873 alternator M5

1шт.

28

825-1405

NUT,M5, Cl 8

NUT, , Alternator replacement parts used when replacing P/N A186125 alternator with A187873 alternator M5, Cl 8

1шт.

29

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Alternator Replacement Parts used when replacing P/N A186125 Alternator with A187873 Alternator M8

1шт.

30

825-1408

NUT,M8, Cl 8

Nut, , Alternator replacement parts used when replacing P/N A186125 alternator with A187873 alternator M8, Cl 8

1шт.

Выбрано товаров: 36
