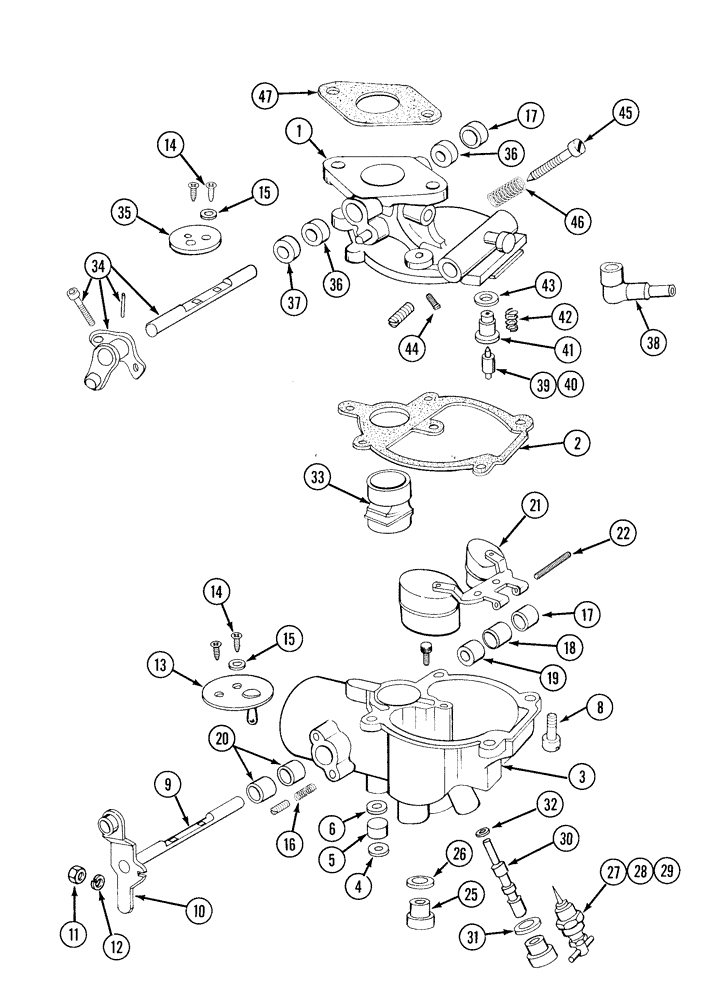

Запчасти Case IH 1835C (3-20) - CARBURETOR ASSEMBLY (03) - FUEL SYSTEM

1960015C2

CARBURETOR

gas engine, up-draft, Includes: Ref. 1 - 48

1шт.

1

NSS

NOT SOLD SEPARAT

BODY throttle

1шт.

2

138473A1

GASKET

, Serial Range: bowl-body

1шт.

Part of Carburetor Kit, P/N 13848A1

1шт.

3

138475A1

BOWL

fuel, Includes: Ref. 4 - 7

1шт.

4

B51439

RETAINER

packing washer

1шт.

Part of Carburetor Kit, P/N 13848A1

1шт.

5

B51509

PLUG

1шт.

Part of Carburetor Kit, P/N 13848A1

1шт.

6

B51533

WASHER

packing

1шт.

7

NSS

NOT SOLD SEPARAT

PIN retaining, not shown

1шт.

8

B51635

SCREW,5/8" x 0.335"

round head

5шт.

9

A43274

SHAFT

choke

1шт.

10

B51378

LEVER

carb air shutter

1шт.

11

225-14208

NUT,#8-36

hex, No. 8 NF

1шт.

12

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

13

138477A1

PLATE ASSY.

PLATE choke

1шт.

14

182-513

SCREW,Sl Pan Hd, #6 - 32 x 1/4"

machine, No. 6 NC x 1/2 inch

4шт.

Part of Carburetor Kit, P/N 13848A1

1шт.

15

492-11006

LOCK WASHER,#6

Washer, Lock, #6

4шт.

Part of Carburetor Kit, P/N 13848A1

1шт.

16

138476A1

SPRING

return

1шт.

17

31860D

PLUG

shaft hole

2шт.

18

B51439

RETAINER

packing washer

1шт.

Part of Carburetor Kit, P/N 13848A1

1шт.

19

NSS

NOT SOLD SEPARAT

PACKING shaft, felt

1шт.

Part of Carburetor Kit, P/N 13848A1

1шт.

20

B59360

RETAINER

WASHER seal retaining

2шт.

Part of Carburetor Kit, P/N 13848A1

1шт.

21

B51359

FLOAT

ASSEMBLY fuel level

1шт.

22

138471A1

FLOAT

AXLE float

1шт.

22a

B51433

AXLE

float pivot, not shown

1шт.

Part of Carburetor Kit, P/N 13848A1

1шт.

23

138472A1

SPRING

float, not shown

1шт.

24

NSS

NOT SOLD SEPARAT

VALVE check, not shown

1шт.

Part of Carburetor Kit, P/N 13848A1

1шт.

25

B51541

PLUG

bowl drain, 1/8 inch PT

3шт.

26

B51442

FILTER

DISC drain

1шт.

Part of Carburetor Kit, P/N 13848A1

1шт.

27

138480A1

JET

main

1шт.

28

A182081

WASHER

main jet adjusting, not shown

2шт.

Part of Carburetor Kit, P/N 13848A1

1шт.

Part of Gasket Kit, P/N 13848A1

1шт.

29

B51619

WASHER

main jet, not shown

1шт.

Part of Carburetor Kit, P/N 13848A1

1шт.

Part of Gasket Kit, P/N 13848A1

1шт.

30

B51323

JET

carb discharge

1шт.

31

A24901

WASHER discharge jet

1шт.

Part of Carburetor Kit, P/N 13848A1

1шт.

Part of Gasket Kit, P/N 13848A1

1шт.

32

B51610

WASHER

discharge jet

1шт.

Part of Carburetor Kit, P/N 13848A1

1шт.

Part of Gasket Kit, P/N 13848A1

1шт.

33

138478A1

VENTURI

1шт.

34

138469A1

SHAFT ASSY.

SHAFT throttle

1шт.

35

138470A1

PLATE

throttle

1шт.

36

A47774

RUBBER SEAL

throttle shaft

2шт.

Part of Carburetor Kit, P/N 13848A1

1шт.

37

B59360

RETAINER

WASHER seal retaining

1шт.

38

138474A1

SCREEN

1шт.

138482A1

SEAT ASSY.

SEAT ASSEMBLY, with needle, Includes: Ref. 39 - 43

1шт.

Part of Carburetor Kit, P/N 13848A1

1шт.

39

NSS

NOT SOLD SEPARAT

NEEDLE fuel valve

1шт.

40

NSS

NOT SOLD SEPARAT

VALVE fuel, not shown

1шт.

41

NSS

NOT SOLD SEPARAT

SEAT fuel valve

1шт.

42

NSS

NOT SOLD SEPARAT

SPRING

1шт.

43

A182081

WASHER

1шт.

Part of Carburetor Kit, P/N 13848A1

1шт.

Part of Gasket Kit, P/N 13848A1

1шт.

44

384863R1

JET

carb idle

1шт.

45

537009R1

ADJUSTMENT SCREW

SCREW needle, idle adjust

1шт.

Part of Carburetor Kit, P/N 13848A1

1шт.

46

B51404

SPRING

idle adjusting needle

1шт.

47

B51459

GASKET

carb flange

1шт.

Part of Carburetor Kit, P/N 13848A1

1шт.

Part of Gasket Kit, P/N 13848A1

1шт.

48

B51338

TUBE

VENT tube, not shown

1шт.

138484A1

GASKET KIT

KIT gasket, Includes: Ref. 28, 29, 31, 32, 43 and 47

1шт.

138483A1

KIT

carburetor, Includes: Ref. 2, 4, 5, 14, 15, 18, 19, 20, 22A, 24, 26, 28, 29, 31, 32, 36, 38 -138482A1, 43, 45 and 47

1шт.
