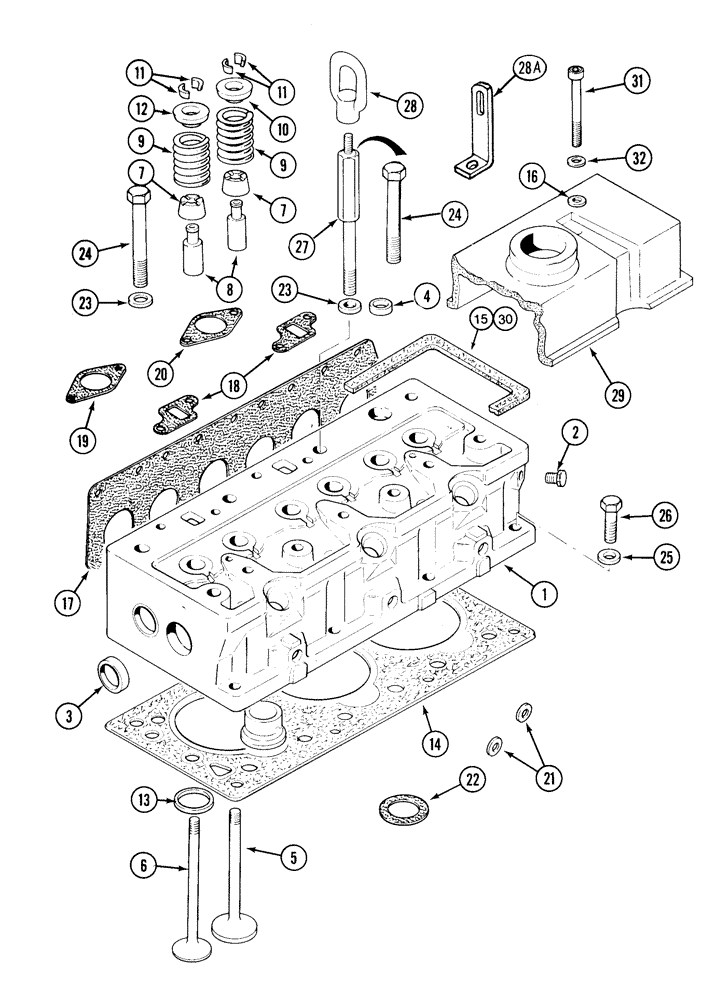

Запчасти Case IH 1835C (2-50) - CYLINDER HEAD, COVER AND VALVES, TM-20 GASOLINE ENGINE (02) - ENGINE

1959991C1

HEAD

ASSEMBLY, cylinder, Includes: Ref. 1 - 12

1шт.

1

1959862C1

HEAD

cylinder, Includes: Ref. 2 - 4

1шт.

2

86643151

PLUG,Hex Hd, 1/8"-27 NPTF

1шт.

3

1959681C1

PLUG

cup, 1-1/8 inch OD

4шт.

4

1959682C1

PLUG

cup, 7/8 inch OD

1шт.

5

1959882C1

VALVE

intake

3шт.

6

1959883C1

VALVE

exhaust

3шт.

7

1959884C1

GUARD

valve stem oil

6шт.

8

1959718C1

GUIDE

valve stem

6шт.

9

1959720C1

SPRING

valve

6шт.

10

1959721C1

RETAINER

valve spring, intake

3шт.

11

1959722C1

RETAINER

locking, valve spring

12шт.

12

1959885C1

COIL

exhaust valve roto

3шт.

13

1959886C1

INSERT

exhaust valve seat

3шт.

1981593C1

GASKET KIT

KIT gasket, cylinder head, upper, Includes: Ref. 14 - 22

1шт.

14

1981592C1

CYLINDER HEAD GASKET

cylinder head

1шт.

15

1959738C1

CYLINDER HEAD GASKET

cylinder head cover

1шт.

16

1959741C1

O-RING,8.05mm ID x 2.7mm Width

cylinder head cover

2шт.

17

1959774C2

MANIFOLD GASKET

manifold

1шт.

18

1959839C2

GASKET

water outlet header

2шт.

19

259576A1

GASKET

thermostat housing

1шт.

20

39256

GASKET

carburetor

1шт.

21

1959995C1

WASHER

flat, special, 8 mm

2шт.

22

1959917C1

GASKET

distributor

1шт.

23

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

flat, 13.5 x 24 x 2.5 mm, One required with P/N 1959680C1 screw, if used

7-8шт.

24

30058R1

BOLT,Hex, M12 x 1.75 x 130mm, Cl 10.9

hex, 12-1.7 x 130 mm, class 10.9, one required with P/N 315267A1 bracket, if used

7-8шт.

25

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

4шт.

26

828-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 40 mm, class 10.9

4шт.

27

1959680C1

SCREW

cylinder head to block, lifting eye to head, special, used with P/N 1959685C1 lifting eye only

1шт.

28

1959685C1

EYE

engine lifting, no longer available, order P/N 315267A1 bracket and 1, P/N 30058R1 bolt, if used

1шт.

28a

315267A1

BRACKET

engine lifting, if used

1шт.

1960017C1

VALVE COVER

KIT cylinder head cover, Includes: Ref. 29 and 30

1шт.

29

NSS

NOT SOLD SEPARAT

COVER cylinder head, order P/N 1960017C1 kit

1шт.

See Figure 2-049 for oil cap with side hose mount.

1шт.

30

1959738C1

CYLINDER HEAD GASKET

cylinder head cover

1шт.

31

864-8085

BOLT

hex socket, 8-1.25 x 85 mm

2шт.

32

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.
