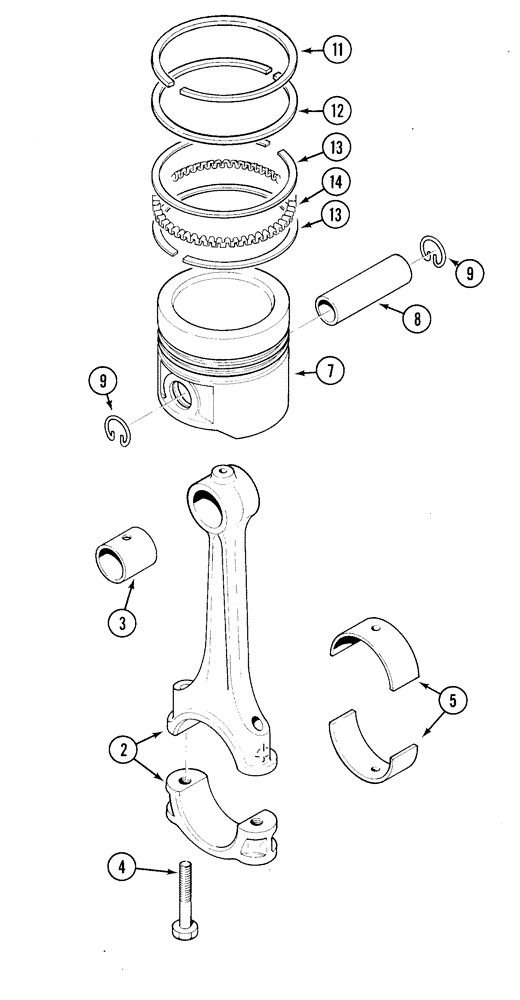

Запчасти Case IH 1835C (2-48) - PISTONS, RINGS AND CONNECTING RODS, TM-20 GASOLINE ENGINE (02) - ENGINE

1959691C2

ROD

ASSEMBLY, connecting, Includes: Ref. 2 - 4

3шт.

2

NSS

NOT SOLD SEPARAT

ROD connecting

1шт.

3

1959692C2

BUSHING

piston pin

1шт.

4

1959693C1

BOLT

hex, special

2шт.

5

1959694C1

KIT

rod bearing, standard

3шт.

5

1959963C1

KIT

rod bearing, 0.25 mm undersize

1шт.

5

1959964C1

KIT

rod bearing, 0.50 mm undersize

1шт.

5

1959965C1

KIT

rod bearing, 0.75 mm undersize

1шт.

5

1959966C1

KIT

rod bearing, 1.00 mm undersize

1шт.

307929A1

KIT

piston, standard, replaces kit P/N 1959863C1

3шт.

1959980C1

KIT

piston, 0.50 mm oversize

1шт.

1959981C1

KIT

piston, 0.75 mm oversize

1шт.

1959982C1

KIT

piston, 1.00 mm oversize, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON engine

1шт.

8

1959958C1

PIN

piston

1шт.

9

1959697C1

RING, SNAP

RING retaining, piston pin

2шт.

1959864C1

KIT

piston ring, standard

3шт.

1959985C1

KIT

piston ring, 0.50 mm oversize

1шт.

1959986C1

KIT

piston ring, 0.75 mm oversize

1шт.

1959987C1

KIT

piston ring, 1.00 mm oversize, Includes: Ref. 11 - 14

1шт.

11

NSS

NOT SOLD SEPARAT

RING piston, compression, upper

1шт.

12

NSS

NOT SOLD SEPARAT

RING piston, compression, middle

1шт.

13

NSS

NOT SOLD SEPARAT

RING piston, oil control

2шт.

14

NSS

NOT SOLD SEPARAT

RING piston, oil spacer

1шт.
