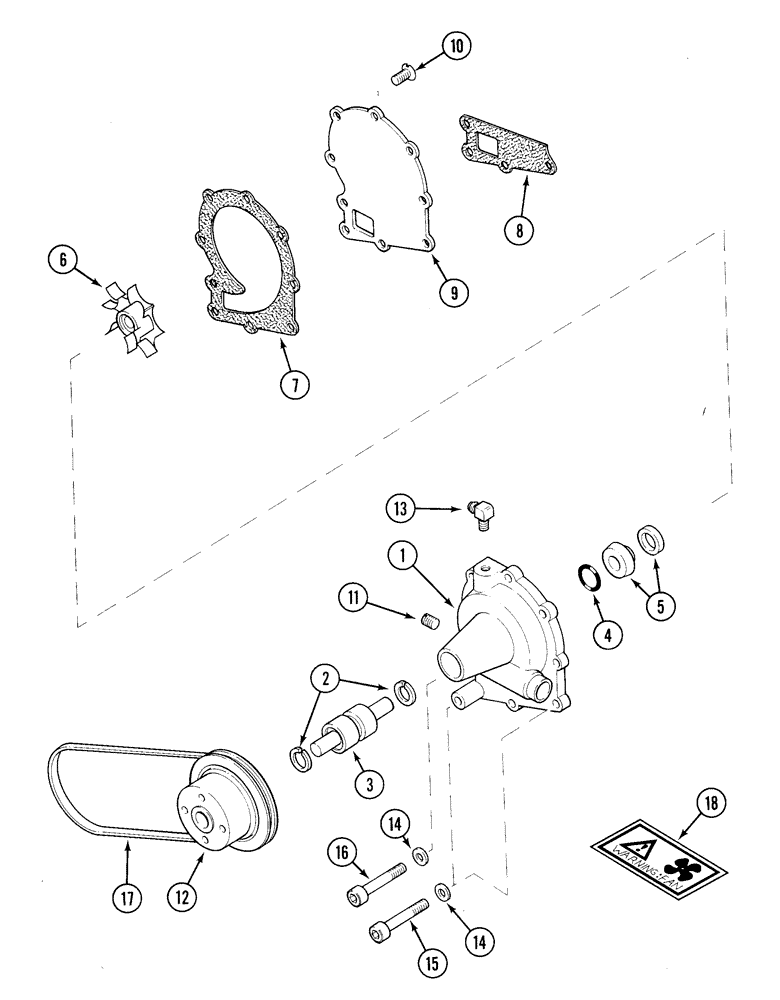

Запчасти Case IH 1835C (2-36) - WATER PUMP, TMD-20 DIESEL ENGINE (02) - ENGINE

244037A1

PUMP, WATER

PUMP ASSEMBLY, water, replaces P/N 1959818C1 pump, Includes: Ref. 1 - 12

1шт.

244037A1R

REMAN-WATER PUMP

1835C (Replaces P/N 1959818C1 Pump,Includes:Ref 1 - 12)

1шт.

244037A1C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

BODY pump

1шт.

1959833C1

KIT

water pump repair, Includes: Ref. 2 - 8

1шт.

2

R13473

RING, SNAP

RING snap

2шт.

3

NSS

NOT SOLD SEPARAT

SHAFT bearing assembly

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING water pump seal

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL water pump

1шт.

6

NSS

NOT SOLD SEPARAT

IMPELLOR water pump

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET, Serial Range: backplate-pump

1шт.

8

1959831C1

GASKET

water pump, included in kit P/N 1959714C1, see Figure 2-18

1шт.

9

NSS

NOT SOLD SEPARAT

PLATE, Serial Range: backplate-pump

1шт.

10

NSS

NOT SOLD SEPARAT

SCREW special, 8 x 16 mm

6шт.

11

217-87

PLUG,Hex Hd, 3/8"-18 NPTF, Brass

hex, 3/8 inch PT

1шт.

12

1959830C1

PULLEY

water pump

1шт.

13

217-332

FITTING,90 Degree Elbow, 5/8" Hose Barb x 3/8" Male NPTF

ELBOW, 5/8 stem end x 3/8 inch PT, 90°

1шт.

14

892-16010

LOCK WASHER,M10, Hvy

lock, 10 mm

3шт.

15

864-10055

HEX SOC SCREW,M10 x 55mm, Cl 8.8

BOLT hex socket, 10-1.5 x 55 mm

2шт.

16

864-10085

BOLT

hex socket, 10-1.5 x 85 mm

1шт.

17

1959837C1

BELT,0.50" W x 50.00" L

V-BELT , Fan, Pump to alternator drive 0.50" W x 50.00" L

1шт.

18

1959939C1

LABEL

DECAL Warning, fan, located on cylinder head cover

1шт.
