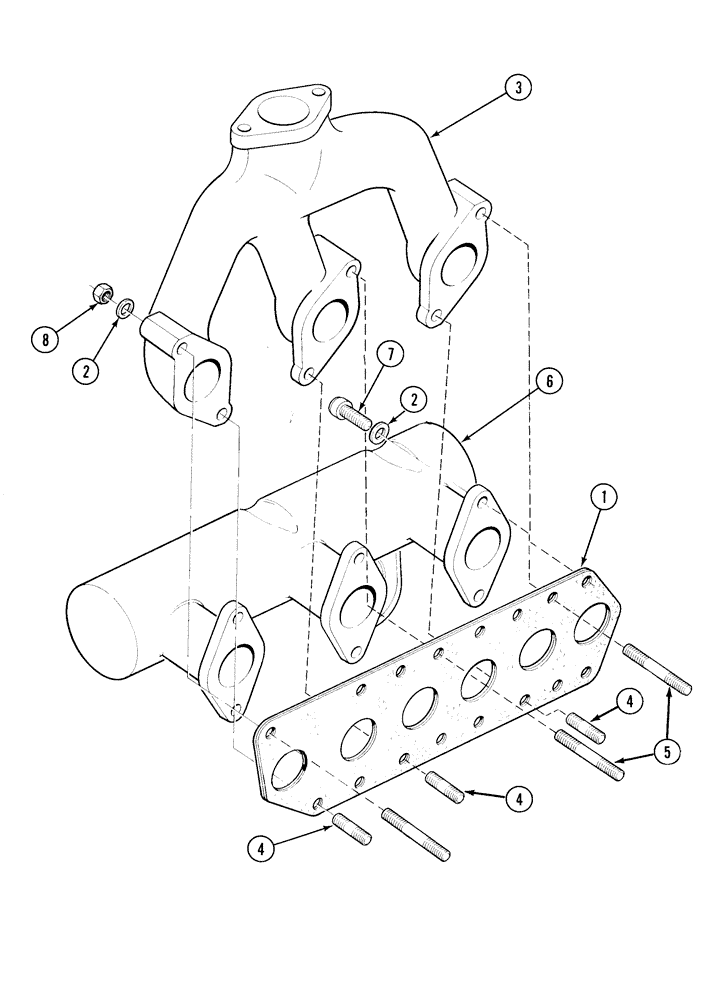

Запчасти Case IH 1835C (2-32) - INTAKE AND EXHAUST MANIFOLDS, TMD-20 DIESEL ENGINE (02) - ENGINE

1

1959774C2

MANIFOLD GASKET

manifold, included in kit P/N 1981593C1, see Figure 2-24

1шт.

2

1959993C1

WASHER

flat, special

12шт.

3

1960004C1

MANIFOLD

exhaust, no longer available, order P/N 132582A1 manifold

1шт.

3

132582A1

MANIFOLD

exhaust

1шт.

4

1959776C1

STUD

manifold mounting, M8 x 40 mm

3шт.

5

1959777C1

STUD

manifold mounting, M8 x 80 mm

3шт.

6

1959778C1

MANIFOLD

intake

1шт.

7

864-8030

HEX SOC SCREW,M8 x 30mm, Cl 8.8

6шт.

8

825-1408

NUT,M8, Cl 8

6шт.
