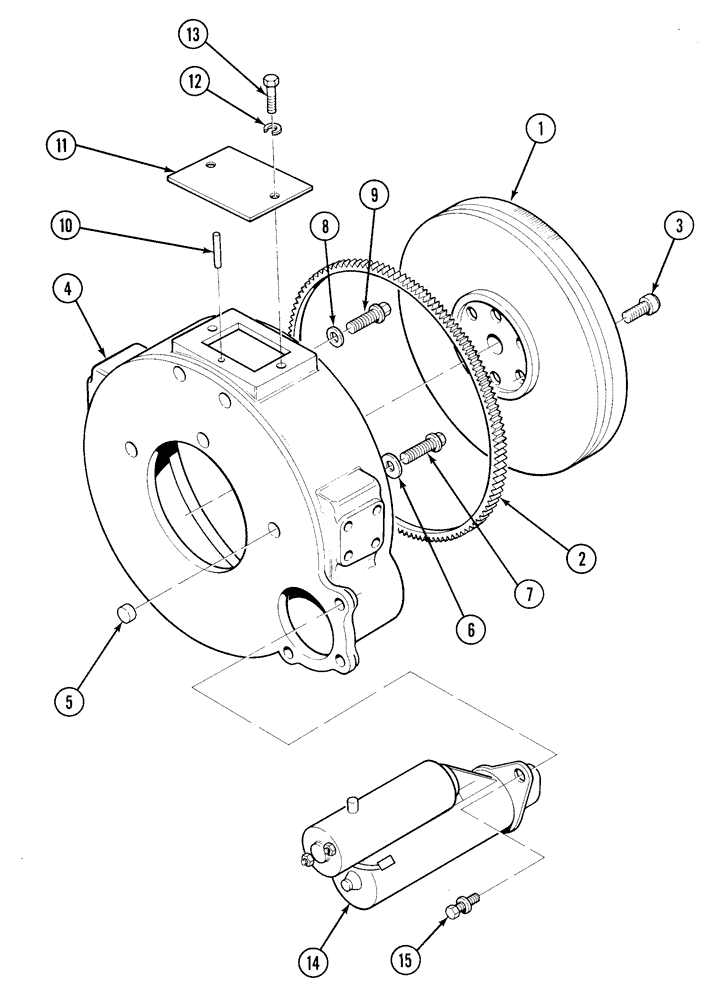

Запчасти Case IH 1835C (2-30) - FLYWHEEL, HOUSING AND STARTER, TMD-20 DIESEL ENGINE (02) - ENGINE

1960006C1

FLYWHEEL

FLYWHEEL ASSEMBLY engine, with ring gear, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

FLYWHEEL without ring gear, order P/N 1960006C1 flywheel assembly

1шт.

2

1959769C1

GEAR

RING gear

1шт.

3

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

6шт.

4

1959770C1

HOUSING

HOUSING flywheel, Serial Range: -96010761

1шт.

4

244032A1

HOUSING

HOUSING flywheel, Start Serial: 96010761

1шт.

5

1959771C1

DOWEL

RING dowel, Serial Range: housing-flywheel

2шт.

6

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

WASHER, 13/32" x 13/16" x .134", HDN

2шт.

7

828-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

BOLT - hex, 10 - 1.5 x 40 mm, class 10.9

2шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

WASHER flat, (13/32 x 13/16 x 1/16")

3шт.

9

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

BOLT, Hex, M10 x 35, 10.9, Full Thd

3шт.

10

1959896C1

PIN

PIN roll, flywheel pointer

1шт.

11

1959897C1

COVER

COVER flywheel timing hole

1шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

BOLT hex, 5/16 NC x 1/2 inch

2шт.

14

1959854C1

STARTING MOTOR

STARTER ASSEMBLY, diesel engine, see Figure 4-06

1шт.

14

87297368

REMAN-STARTER

Remanufactured Starter; For N.A. only

1шт.

14

87297369

CORE-STARTER

Return number - For N.A. only

1шт.

15

80680

LOCK WASHER,3/8 0.381 CST ZND

SCREW with lockwasher, special, 3/8 NC x 1-1/4 inch long, starter to flywheel housing

2шт.
