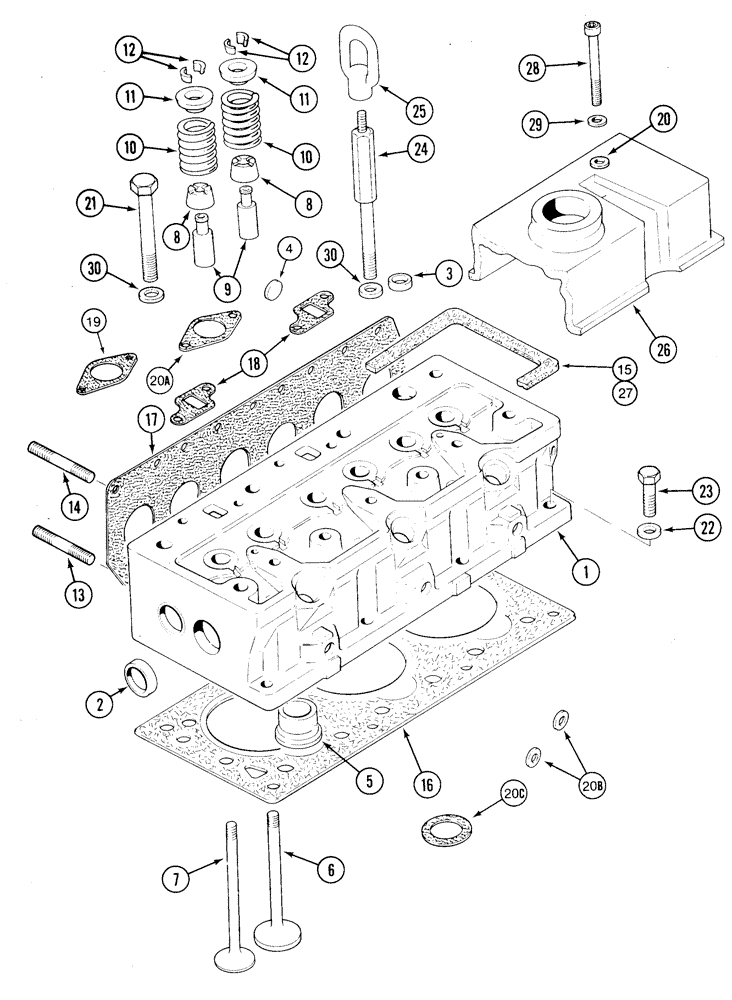

Запчасти Case IH 1835C (2-24) - CYLINDER HEAD, COVER AND VALVES, TMD-20 DIESEL ENGINE (02) - ENGINE

1960016C1

HEAD

KIT cylinder head assembly, Includes: Ref. 1 - 14

1шт.

A190817

CORE-CYLINDER HEAD

NUMBER return

1шт.

Use this part number to return head for credit when using a remanufactured assembly

1шт.

1

1959674C1

HEAD

cylinder, no longer available, order P/N 1960016C1 kit, Includes: Ref. 2 - 5

1шт.

2

1959681C1

PLUG

cup, 1-1/8 inch O.D.

4шт.

3

1959682C1

PLUG

cup, 7/8 inch O.D.

1шт.

4

1959683C1

PLUG

cylinder head

3шт.

5

1959684C1

INSERT

cylinder head

3шт.

6

1959715C1

VALVE

intake

3шт.

7

1959716C1

VALVE

exhaust

3шт.

8

1959719C1

GUARD

valve stem oil

6шт.

9

1959718C1

GUIDE

valve stem

6шт.

10

1959720C1

SPRING

valve

6шт.

11

1959721C1

RETAINER

valve spring

6шт.

12

1959722C1

RETAINER

locking, valve spring

12шт.

13

1959776C1

STUD

manifold mounting, see Figure 2-32

2шт.

14

1959777C1

STUD

manifold mounting, see Figure 2-32

2шт.

1981593C1

GASKET KIT

KIT gasket, cylinder head, upper, Includes: Ref. 15 - 20C

1шт.

Hylomar sealant not required on cylinder head gaskets with grey metallic color and that have Print-O-Seals.

1шт.

15

1959738C1

CYLINDER HEAD GASKET

cylinder head cover

1шт.

16

1981592C1

CYLINDER HEAD GASKET

cylinder head

1шт.

Hylomar sealant not required on cylinder head gaskets with grey metallic color and that have Print-O-Seals.

1шт.

17

1959774C2

MANIFOLD GASKET

manifold

1шт.

18

1959839C2

GASKET

water outlet header

2шт.

19

10553

GASKET

thermostat housing

1шт.

20

1959741C1

O-RING,8.05mm ID x 2.7mm Width

cylinder head cover

2шт.

20a

39256

GASKET

carburetor

1шт.

20b

1959995C1

WASHER

flat, special, 8 mm

2шт.

20c

1959917C1

GASKET

distributor

1шт.

21

30058R1

BOLT,Hex, M12 x 1.75 x 130mm, Cl 10.9

hex, 12-1.7 x 130 mm, class 10.9

7шт.

22

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

4шт.

23

828-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 40 mm, class 10.9

4шт.

24

1959680C1

SCREW

cylinder head to block, lifting eye to head, special

1шт.

25

1959685C1

EYE

engine lifting

1шт.

1960017C1

VALVE COVER

KIT cylinder head cover, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

COVER cylinder head, order P/N 1960017C1 kit

1шт.

27

1959738C1

CYLINDER HEAD GASKET

cylinder head cover

1шт.

28

864-8085

BOLT

hex socket, 8-1.25 x 85 mm

2шт.

29

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

30

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

flat, 13.5 x 24 x 2.5 mm

8шт.
