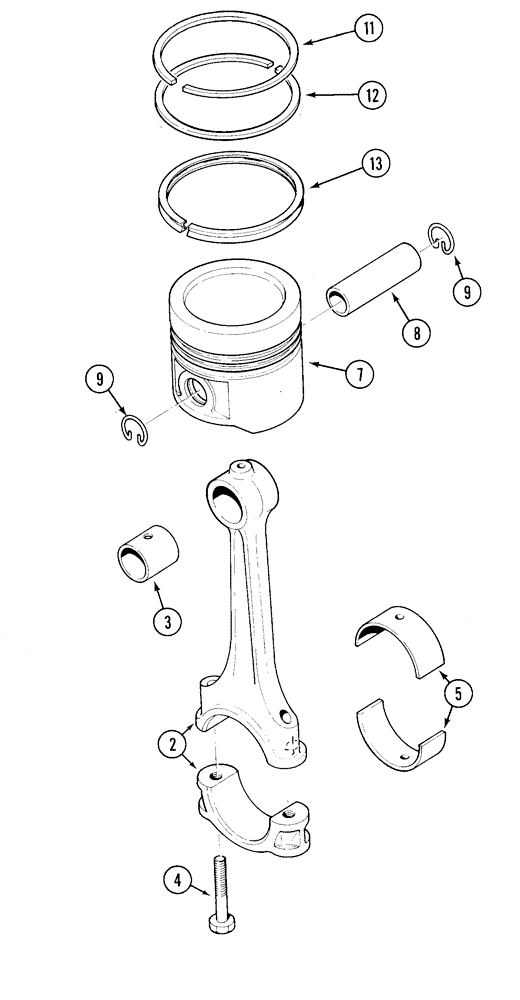

Запчасти Case IH 1835C (2-22) - PISTONS, RINGS AND CONNECTING RODS, TMD-20 DIESEL ENGINE (02) - ENGINE

1959691C2

ROD

ASSEMBLY, connecting, Includes: Ref. 2 - 4

3шт.

2

NSS

NOT SOLD SEPARAT

ROD connecting

1шт.

3

1959692C2

BUSHING

piston pin

1шт.

4

1959693C1

BOLT

hex, special

2шт.

5

1959694C1

KIT

rod bearing, standard

3шт.

5

1959963C1

KIT

rod bearing, 0.25 mm undersize

1шт.

5

1959964C1

KIT

rod bearing, 0.50 mm undersize

1шт.

5

1959965C1

KIT

rod bearing, 0.75 mm undersize

1шт.

5

1959966C1

KIT

rod bearing, 1.00 mm undersize

1шт.

1959695C1

KIT

piston, standard

3шт.

1959970C1

KIT

piston, 0.50 mm oversize

1шт.

1959971C1

KIT

piston, 0.75 mm oversize

1шт.

1959972C1

KIT

piston, 1.00 mm oversize, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON engine

1шт.

8

1959696C1

PIN

piston

1шт.

9

1959697C1

RING, SNAP

RING retaining, piston pin

2шт.

1959698C1

KIT

piston ring, standard

3шт.

1959975C1

KIT

piston ring, 0.50 mm oversize

1шт.

1959976C1

KIT

piston ring, 0.75 mm oversize

1шт.

1959977C1

KIT

piston ring, 1.00 mm oversize, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

RING piston, compression, top

1шт.

12

NSS

NOT SOLD SEPARAT

RING piston, compression, middle

1шт.

13

NSS

NOT SOLD SEPARAT

RING piston, oil

1шт.
