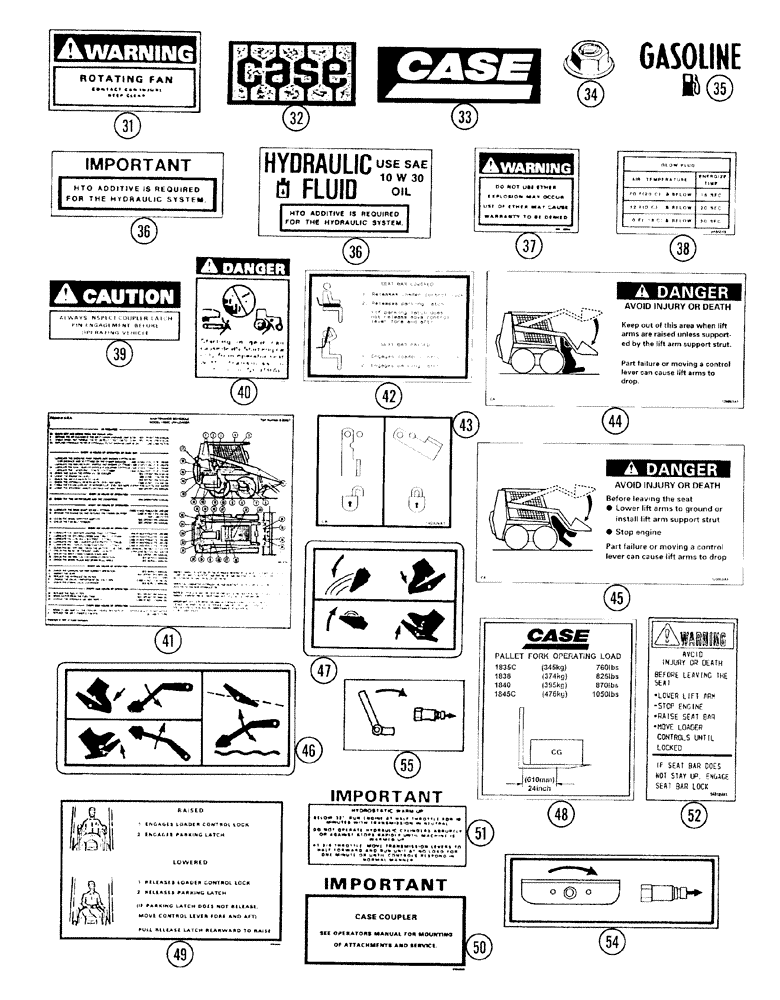

Запчасти Case IH 1835C (9-62) - DECALS (09) - CHASSIS/ATTACHMENTS

31

321-6686

DECAL

Warning, rotating fan, English

1шт.

32

321-4739

EMBLEM

Case, used on brown models

1шт.

33

186989A1

EMBLEM

Case, used on grey models

1шт.

34

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT push-on type, for Ref. 33 medallion

2шт.

35

321-6375

DECAL

gasoline

1шт.

36

H437687

DECAL

hydraulic fluid, use SAE 10-W-30 oil

1шт.

36

275322A1

DECAL

hydraulic fluid, use SAE 10-W-30 oil

1шт.

37

321-6952

DECAL

Warning, do not use ether

1шт.

38

H435049

DECAL

glow plug, diesel models only

1шт.

39

D137186

DECAL

Caution, always inspect coupler-latch pin engagement

1шт.

40

321-7040

DANGER DECAL

DECAL, DANGER, Starting in gear can cause death

1шт.

41

8-80907

DECAL

maintenance schedule, model 1835C Uni-Loader

1шт.

42

133392A1

DECAL

seat bar lowered/seat bar raised, parking latch and operators restraints instructions, used on models with single seat bar

1шт.

43

140326A1

DECAL

seat bar lock

1шт.

44

120951A1

DECAL

Danger, keep out of this area, English

1шт.

45

120950A1

DECAL

Danger, before leaving the seat, English

1шт.

46

H437462

DECAL

loader control

1шт.

47

H437463

DECAL

bucket control

1шт.

48

251734A1

DECAL

capacity, pallet fork

1шт.

49

D134679

DECAL

Raised/Lowered, parking latch and operators restraint instructions, used on models with dual seat bars

1шт.

50

D134680

DECAL

Important, Case coupler, English, Start Serial: JAF0037367

1шт.

51

321-4197

DECAL

Important, hydrostatic warm-up

1шт.

52

140124A1

DECAL

Warning, before leaving the seat, English

1шт.

53

D55216

PAD,2" x 9"

PAD anti-skid, floor plate and loader frame, not shown

1шт.

54

139618A1

DECAL

auxiliary hydraulics

1шт.

55

139617A1

DECAL

auxiliary hydraulics

1шт.
