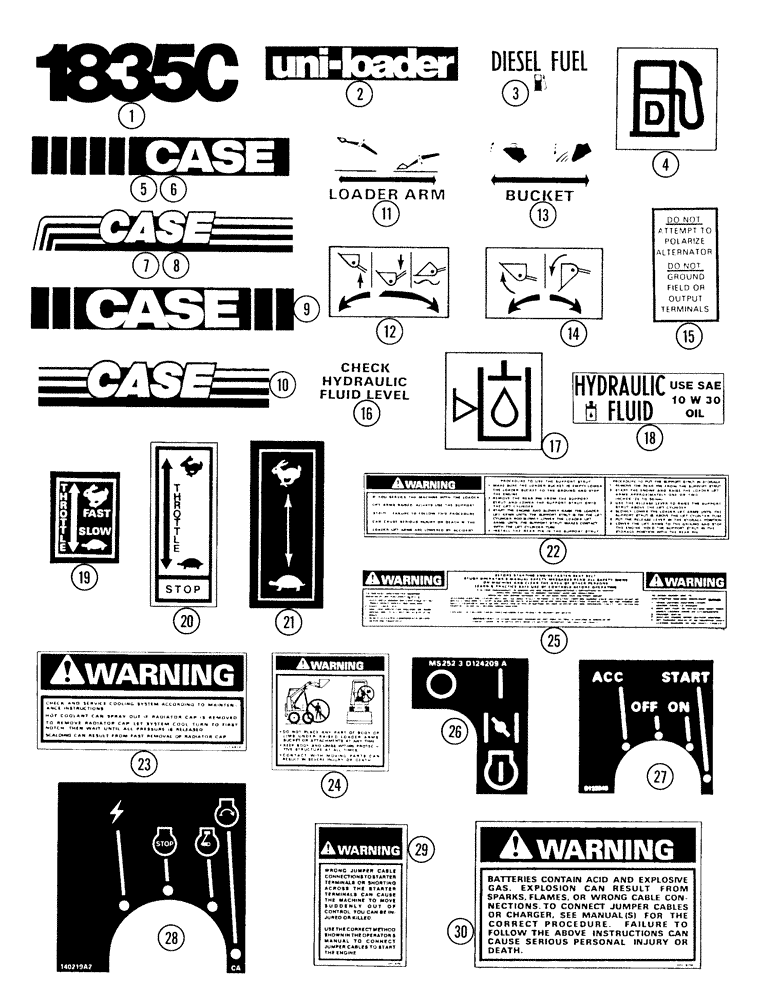

Запчасти Case IH 1835C (9-60) - DECALS (09) - CHASSIS/ATTACHMENTS

1

D138150

DECAL

1835C, used on brown models

2шт.

1

179124A1

DECAL

1835C, used on grey models

2шт.

2

D123964

DECAL

uni-loader, brown

2шт.

3

321-6374

DECAL

diesel fuel

1шт.

4

139879A1

DECAL

diesel fuel

1шт.

5

D138195

DECAL

Case, with treads, left-hand side, 5 inch/127 mm high, used on brown models

1шт.

6

D138196

DECAL

Case, with treads, right-hand side, 5 inch/127 mm high, used on brown models

1шт.

7

179180A2

DECAL

Case, with stripes, left-hand side, 5 inch/127 mm high, used on grey models

1шт.

8

179181A2

DECAL

Case, with stripes, right-hand side, 5 inch/127 mm high, used on grey models

1шт.

9

H427963

DECAL

Case, with treads, 5 inch/127 mm high, used on brown models

1шт.

10

179182A2

DECAL

Case, with stripes, 5 inch/127 mm high, used on grey models

1шт.

11

321-5849

DECAL

loader arm control

1шт.

12

139592A1

DECAL

loader arm control

1шт.

13

321-5850

DECAL

bucket control

1шт.

14

139593A1

DECAL

bucket control

1шт.

15

321-1061

DECAL

do not attempt to polarize alternator

1шт.

16

321-2733

DECAL

check hydraulic fluid level

1шт.

17

139880A1

DECAL

check hydraulic fluid level

1шт.

18

H434891

DECAL

Hydraulic Fluid, use SAE 10-W-30 Oil, Serial Range: -JAF0037367

1шт.

19

321-4470

DECAL

throttle, slow/fast, diesel models only

1шт.

20

H434897

DECAL

speed control, gasoline models only, used on brown models

1шт.

21

178662A1

DECAL

throttle, slow-fast, used on grey models

1шт.

22

321-7029

DECAL

Warning, if you service the machine with loader lift arms raised, Replaces: P/N D134678

1шт.

23

321-6672

DECAL

Warning, check and service cooling system

1шт.

24

D120889

DECAL

Warning, do not place any part of body or limb under raised loader arms, English

1шт.

25

321-6460

DECAL

Warning, before starting engine, fasten seat belt

1шт.

26

D124209

DECAL

ignition switch pattern, universal symbols, used on brown models, if used, Serial Range: -JAF0037367

1шт.

27

D123946

DECAL

ignition switch pattern, used on brown models, if used, Start Serial: JAF0037367

1шт.

28

140219A1

DECAL

ignition switch pattern, universal symbols, used on grey models, if used

1шт.

29

321-6872

DECAL

Warning, wrong jumper cable connections to starter terminals

1шт.

30

321-6714

DECAL

Warning, batteries contain acid and explosive gas

1шт.
