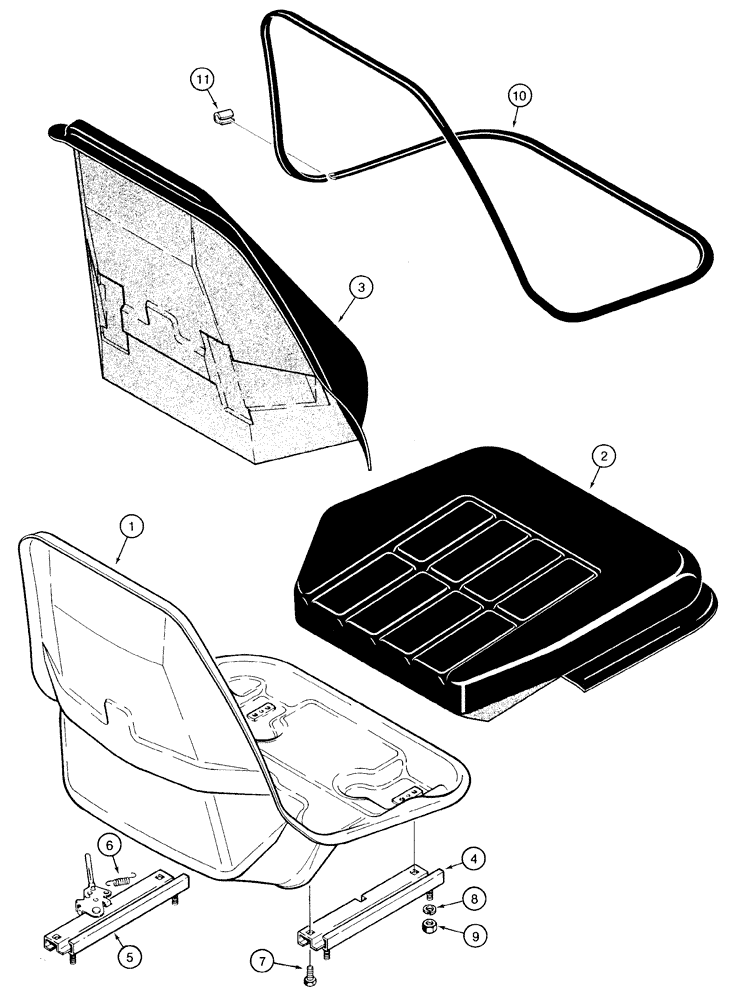

Запчасти Case IH 1835C (9-42) - STANDARD OPERATORS SEAT (09) - CHASSIS/ATTACHMENTS

D124515

SEAT ASSY.

SEAT ASSEMBLY, operators, brown vinyl, molded shell, Includes: Ref. 1 - 11

1шт.

178763A1

SEAT

ASSEMBLY, operators, gray vinyl, molded shell

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL seat

1шт.

2

N8462

CUSHION

KIT seat cushion, includes P/N N7802 clip kit, brown vinyl

1шт.

3

N8461

CUSHION

KIT backrest cushion, includes P/N N7802 clip kit, brown vinyl

1шт.

4

N13607

ADJUSTER

SLIDE seat, right-hand

1шт.

5

N13606

ADJUSTER

SLIDE seat, left-hand, adjustment side, Inlcudes: Ref. 6

1шт.

6

D56889

SPRING

adjustment lever

1шт.

7

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

hex, 5/16 NC x 1/2 inch

4шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

10

NSS

NOT SOLD SEPARAT

RETAINER edging strip, Serial Range: cushion-shell

1шт.

11

NSS

NOT SOLD SEPARAT

CLIP retainer, order P/N N7802 clip kit

1шт.

345-44

ADHESIVE

spray can, 3M No. 74, 23 ounce, for attaching pads to metal surfaces, purchase locally

1шт.

N7802

CLIP

KIT clip, includes Ref. 11 clip, plus 6 additional narrow clips

1шт.
