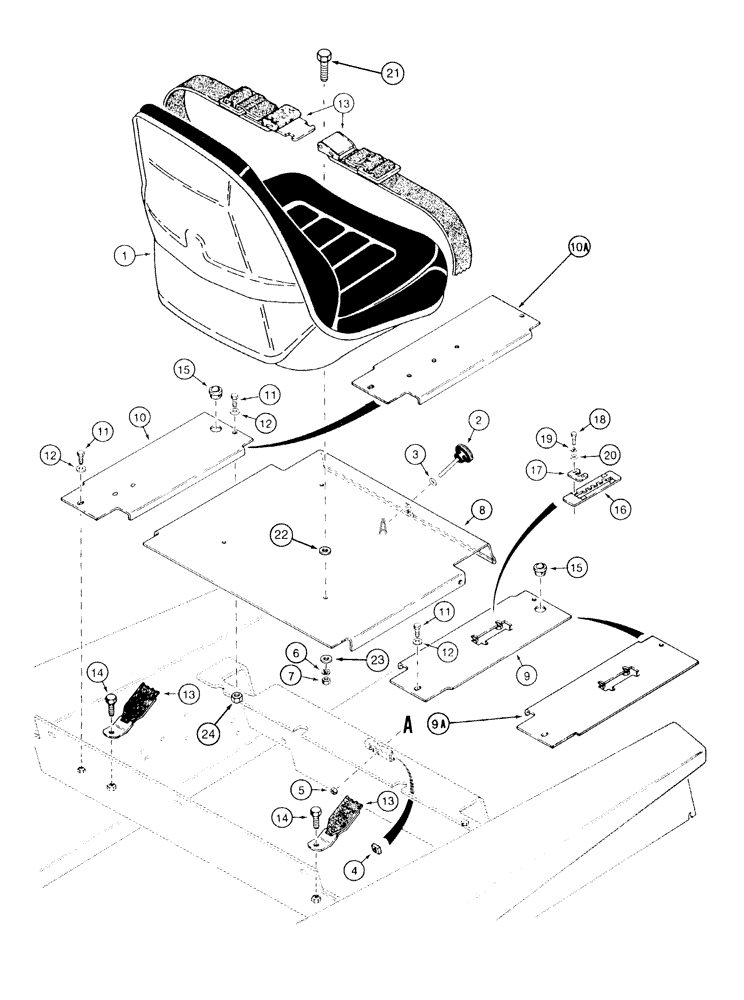

Запчасти Case IH 1835C (9-38) - STANDARD SEAT MOUNTING AND SEAT BELTS P.I.N. JAF0037367 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

D124515

SEAT ASSY.

SEAT ASSEMBLY, operators, brown vinyl, molded shell, see Figure 9-42

1шт.

1

178763A1

SEAT

ASSEMBLY, operators, gray vinyl, molded shell, see Figure 9-42

1шт.

2

D133068

KNOB

seat adjusting

1шт.

3

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

4

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

1шт.

5

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

6

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

8

H435910

PLATE

seat mounting

1шт.

9

H673455

COVER ASSY

PANEL right-hand closure, used on models with dual seat bars, Serial Range: -JAF0097243

1шт.

9

121045A1

COVER ASSY

PANEL right-hand closure, used on models with dual seat bars, Serial Range: JAF0097243-JAF0130837

1шт.

9a

133623A1

COVER ASSY

PANEL right-hand closure, used on models with single seat bar, Start Serial: JAF0130838

1шт.

10

H435912

PLATE

PANEL left-hand closure, used on models with dual seat bars, not shown, Serial Range: -JAF0097243

1шт.

10

121043A1

COVER

PANEL left-hand closure, used on models with dual seat bars, Serial Range: JAF0097243-JAF0130837

1шт.

10a

133621A1

COVER

PANEL left-hand closure, used on models with single seat bar, Start Serial: JAF0130838

1шт.

11

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

4шт.

12

H426775

WASHER

flat, special, hardened

4шт.

13

D133868

SAFETY BELT ,2.00" W

If used 2.00" W

1шт.

13

H438265

SAFETY BELT

SAFETY BELT, Non-retractable, 76 mm/3 inch wide, If used

1шт.

14

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

15

F64486

GROMMET

BUSHING snap, 3/4 inch ID, use with Ref. 9 and 10 only

2шт.

16

H435207

LARGE PLATE

PLATE throttle

1шт.

17

H435208

LARGE PLATE

PLATE throttle stop

1шт.

18

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

hex, 1/4 NC x 3/4 inch

4шт.

19

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

20

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

21

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch

4шт.

22

496-21041

WASHER,13/32" x 13/16" x .089", HDN

flat, hardened, 13/32 x 13/16 x 3/32"

4шт.

23

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

1шт.
