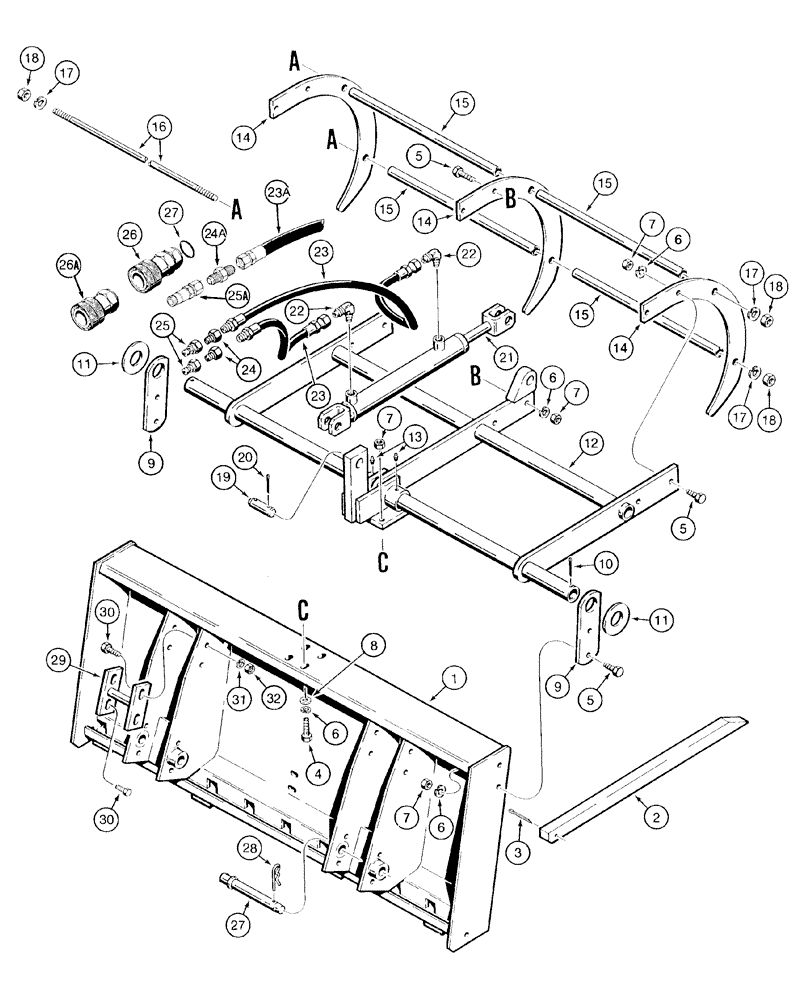

Запчасти Case IH 1835C (9-34) - MANURE FORK AND GRAPPLE (09) - CHASSIS/ATTACHMENTS

1

H673250

FRAME

manure fork, pinned coupler

1шт.

H673761

FORK

FRAME manure fork, Case coupler

1шт.

2

D64911

TINE

Manure fork

11шт.

3

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), . Manure fork 1/4" x 2"

11шт.

4

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Grapple attachment Hex, 1/2"-13 x 1 3/4", G5

4шт.

5

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Grapple attachment Hex, 1/2"-13 x 1 1/2", G5, Full Thd

10шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Grapple attachment 1/2"

14шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Grapple attachment 1/2"-13, G5

14шт.

8

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch, no longer used, not required, Grapple attachment

4шт.

9

D64908

BRACE

pivot, Grapple attachment

2шт.

10

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), , grapple attachment 1/4" x 2 1/2"

2шт.

11

195-116

WASHER,1 5/8"

flat, 1-3/4 x 3-3/4 x 3/16 inch, Grapple attachment

2шт.

12

H673248

FRAME

grapple, Grapple attachment

1шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch, Grapple attachment

2шт.

14

D64909

FORK

grapple, Grapple attachment

3шт.

15

D64907

BUSHING

SPACER fork, Grapple attachment

4шт.

16

D64912

ROD

tie, fork, Grapple attachment

2шт.

17

492-11075

LOCK WASHER,3/4"

grapple attachment 3/4"

4шт.

18

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC, Grapple attachment

4шт.

19

D61036

PIN

pivot, mounting, Grapple attachment

2шт.

20

432-1024

COTTER PIN,5/32" x 1 1/2"

grapple attachment 5/32" x 1 1/2"

4шт.

21

D61075

CYLINDER

ASSEMBLY, 51/2 ID x 203 mm/8 inch stroke, see Figure 8-82, Grapple attachment

1шт.

22

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

3/4-16 flare x 1/2 inch PT, 90°, Grapple attachment

2шт.

23

D66596

HOSE

1676 mm/66 inch long, with ISO coupler, if used, Grapple attachment

2шт.

23a

D51685

HOSE

1676 mm/66 inch long, with flat face coupler, if used, Grapple attachment

2шт.

24

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

pipe, 1/2 male x 3/8 inch female, with ISO coupler, if used, Grapple attachment

1-2шт.

24a

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, with flat face coupler, if used, Grapple attachment 3/4"-16, 37º x 7/8"-14, O-Ring

1-2шт.

25

1272770C2

COUPLING, BREAK AWAY

COUPLING quick disconnect, male, ISO coupler, if used, Grapple attachment

1-2шт.

25a

238243A1

COUPLING, BREAK AWAY

COUPLING quick disconnect, male, flat face, if used, Grapple attachment

1-2шт.

26

H436396

COUPLING

COUPLER self sealing, female, ISO coupler, if used, Includes: Ref. 27, Grapple attachment

1-2шт.

27

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

Coupling, Grapple attachment -210, 70 Duro, .734" ID x .139" Thk

1шт.

26a

143431A1

COUPLING, QUICK, FEM

COUPLING quick disconnect, female, flat face, if used, Grapple attachment

1-2шт.

27

D132172

PIN

lower, pallet fork frame to loader arm, Grapple attachment

2шт.

28

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

PIN cotter, hair, 1/2 x 3-1/4 inch, Grapple attachment

2шт.

29

D61308

PIN

BRACKET upper, manure fork frame, Grapple attachment

2шт.

30

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

hex, 1/2 NC x 1-1/4 inch, Grapple attachment

8шт.

31

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Grapple attachment 1/2"

8шт.

32

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Grapple attachment 1/2"-13, G5

8шт.
