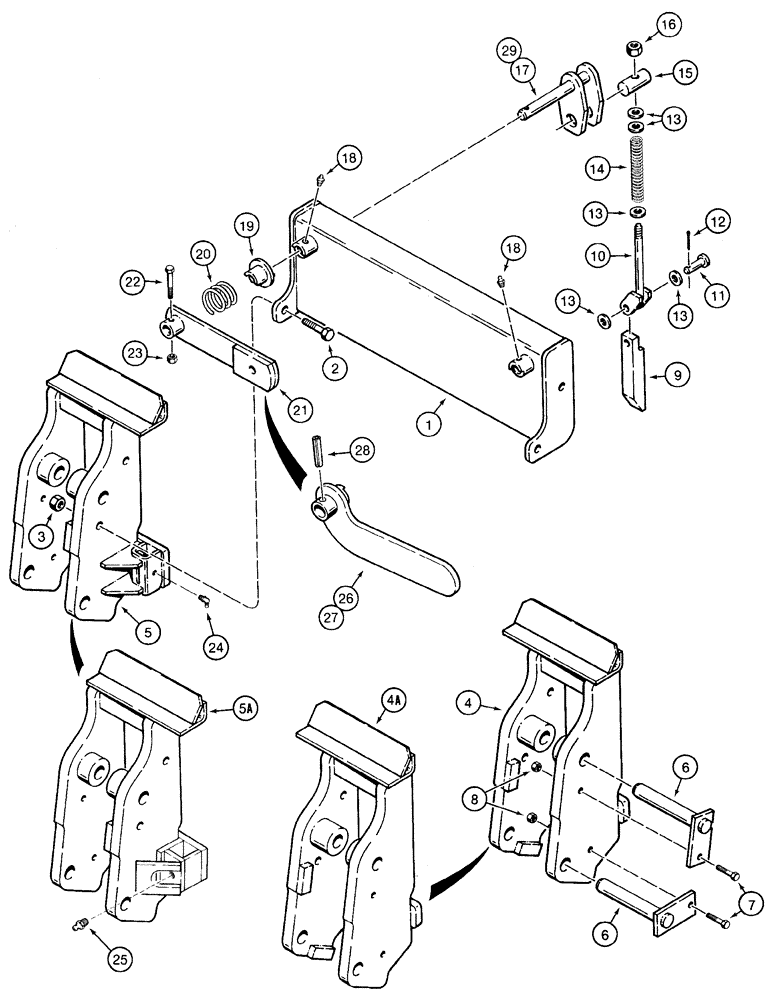

Запчасти Case IH 1835C (9-26) - CASE COUPLER, PRIOR TO P.I.N. JAF0183047 (09) - CHASSIS/ATTACHMENTS

1

H673348

CROSSMEMBER

torque, coupler

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

3

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.

4

H673343

COUPLING

COUPLER frame, right-hand, no longer available, order P/N H674801 coupler, Ref. 4A

1шт.

4a

H674801

COUPLING

COUPLER frame, right-hand

1шт.

5

H673342

COUPLING

COUPLER frame, left-hand, no longer available, order P/N H674802 coupler, Ref. 5A

1шт.

5a

H674802

COUPLING

COUPLER frame, left-hand

1шт.

6

H673520

PIN

coupler

4шт.

7

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

4шт.

8

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

9

H436000

WEDGE

lock

2шт.

10

H673349

ROD

clevis

2шт.

11

427-8168

CLEVIS PIN,12.7mm OD x 42.88mm L

PIN clevis, hardened, 1/2 x 1-11/16 inch

2шт.

12

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

13

496-21053

WASHER,17/32" x 1 1/16" x .134"

flat, hardened, 17/32 x 1-1/16 x 1/8 inch

10шт.

14

D124197

SPRING

coupler lever

2шт.

15

H436001

TRUNNION

crank

2шт.

16

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

17

H673346

CRANK

coupler, used with P/N H673344 lever, Ref. 21, no longer available, order P/N H673856 crank, Ref. 29

2шт.

18

219-86

LUBE NIPPLE,1/8" NPTF

FITTING grease, straight, self-tap 1/8 PT x 5/8 inch, if used

2шт.

19

H673583

SLEEVE

crank

2шт.

20

H436051

SPRING

crank

2шт.

21

H673344

LEVER

coupler, used with Ref. 4 and 5 couplers, no longer available, order Ref. 26 or 27 lever

2шт.

22

426-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8

hex, 5/16 NC x 1-3/4 inch, grade 8

2шт.

23

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

24

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Used with Ref. 4 or 5 coupler only, 90° 90º, 1/8" NPT x .84" lg

2шт.

25

219-86

LUBE NIPPLE,1/8" NPTF

FITTING grease, straight, self-tap 1/8 PT x 5/8 inch, used with Ref. 4A or 5A coupler only

2шт.

26

H436936

LEVER

coupler, left-hand, used with Ref. 5A coupler only, Replaces: P/N H673714 lever

1шт.

27

H436937

LEVER

coupler, right-hand, used with Ref. 4A coupler only, Replaces: P/N H673715 lever

1шт.

28

438-12020

LOCK PIN,5/16" x 1 1/4", Slotted

Pin, , used with ref.26 or 27 lever only, no longer used, order ref. 22 and 23 5/16" x 1 1/4", Slotted

2шт.

29

H673856

CRANK

coupler, used with levers Ref. 26 and 27

2шт.

H675086

SET

KIT service, coupler reinforcement, includes 2 gussets, 2 reinforcing bars and instruction sheet, Serial Range: -JAF0077457

1шт.
