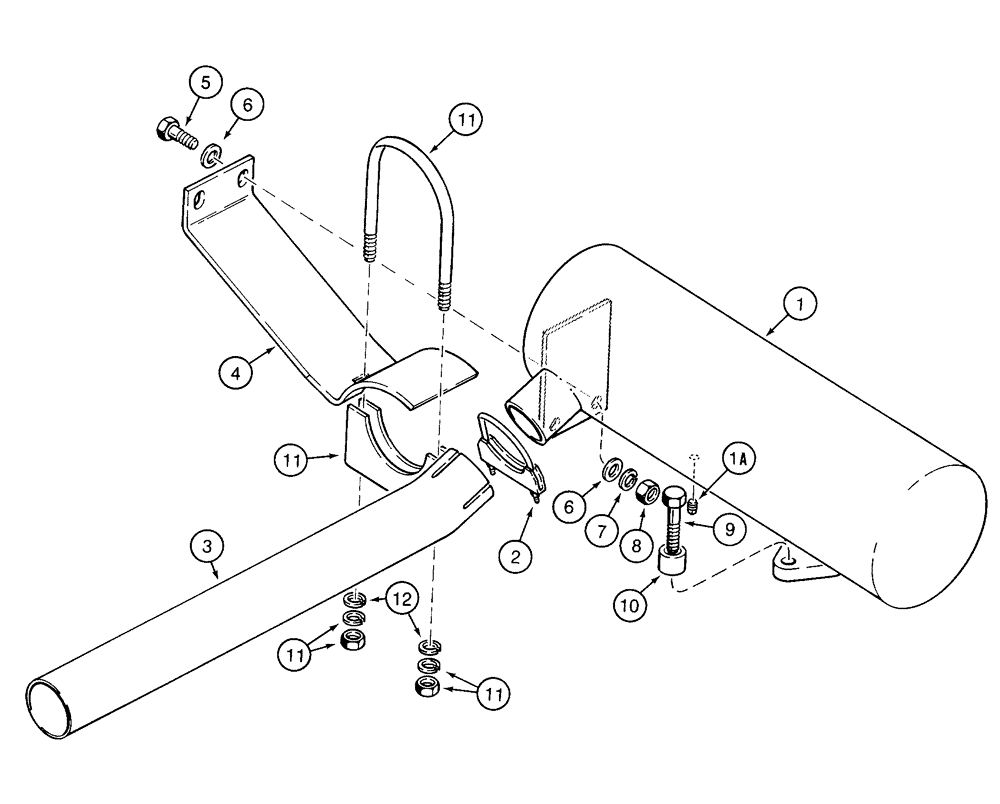

Запчасти Case IH 1835C (2-10) - MUFFLER AND EXHAUST SYSTEM, DIESEL MODELS ONLY (02) - ENGINE

1

A184843

MUFFLER

exhaust, standard, no longer available, order P/N A184864 muffler

1шт.

1

A184864

MUFFLER

exhaust, spark arresting, Includes: Ref. 1A

1шт.

1a

217-77

PLUG

square, 3/8 inch PT, brass, used with spark arresting muffler only

1шт.

2

L73301

CLAMP,51mm ID

ASSEMBLY, includes hardware

1шт.

3

D139191

PIPE, EXHAUST SYSTEM

PIPE exhaust

1шт.

4

H435636

BRACKET

muffler mounting, Replaces: P/N A184682 bracket

1шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

2шт.

6

496-21041

WASHER,13/32" x 13/16" x .089", HDN

flat, hardened, 13/32 x 13/16 x 3/32"

4шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

9

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

- hex head, 12 mm - 1.75 x 60 mm (8.8)

2шт.

10

R24325

SPACER

, Serial Range: muffler-manifold

2шт.

11

L100055

CLAMP

bracket to intake manifold, includes hardware

1шт.

12

492-11038

LOCK WASHER,3/8"

2шт.
