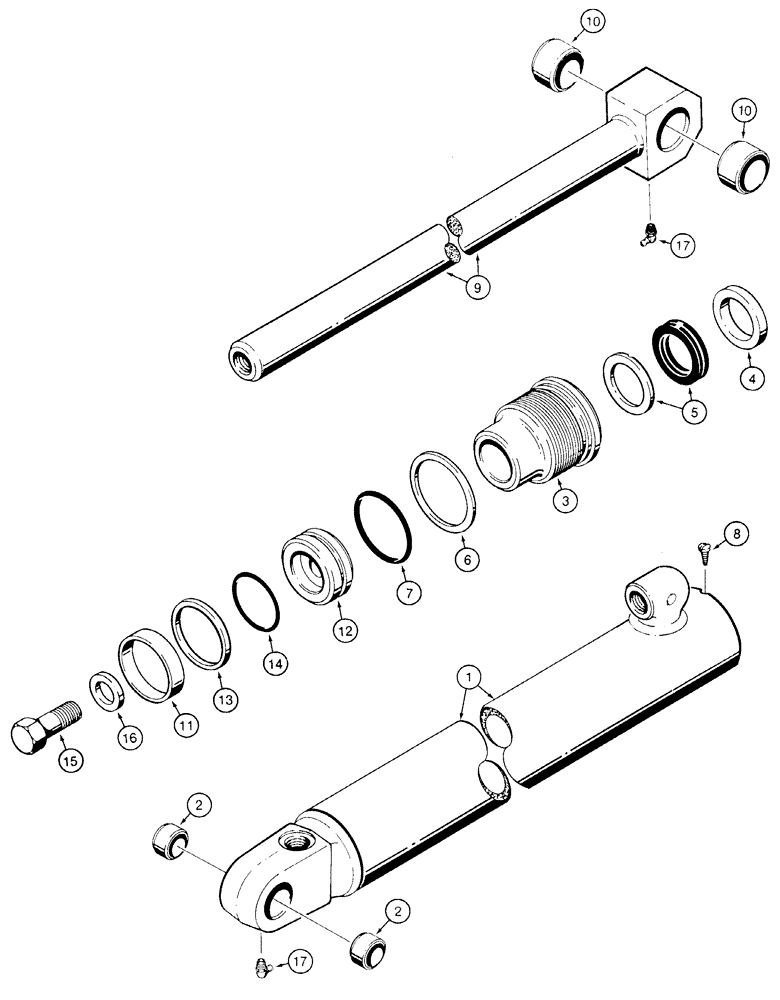

Запчасти Case IH 1835C (8-74) - LOADER LIFT CYLINDER, P.I.N. JAF0130838 AND AFTER (08) - HYDRAULICS

117824A1

CYLINDER,Double Acting, 38.1mm Rod, 679.4mm Stroke

ASSEMBLY, 64/2-1/2 ID x 679 mm/26-3/4 inch stroke, see Figure 9-10 for mounting hardware, Includes: Ref. 1 - 17

2шт.

1

117825A1

TUBE,63.42 mm ID, 862 mm Length

ASSEMBLY, cylinder, Includes: Ref. 2

1шт.

2

D34359

BUSHING,25.63mm ID x 34.92mm OD x 15.75mm L

tube

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY, cylinder, Includes: Ref. 3 - 7

1шт.

3

117830A1

GLAND

cylinder

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod

1шт.

Part of Seal Kit, P/N 128725A1

1шт.

5

NSS

NOT SOLD SEPARAT

PACKAGE rod and buffer seal, order P/N 128725A1 kit

1шт.

Part of Seal Kit, P/N 128725A1

1шт.

6

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

RING backup, gland O-ring

1шт.

Part of Seal Kit, P/N 128725A1

1шт.

7

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

Gland -228, 70 Duro, 2.234" ID x .139" Thk

1шт.

Part of Seal Kit, P/N 128725A1

1шт.

8

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

9

242311A1

PISTON ROD

ROD ASSEMBLY, piston, 38 mm/1-1/2 inch diameter, Replaces: P/N 128301A1 rod assembly, Includes: Ref. 10

1шт.

10

G35361

BUSHING,25.7mm ID x 31.82mm OD x 15.7mm L

rod

2шт.

G35267

PISTON ASSY.

PISTON ASSEMBLY, cylinder, no longer available, order component parts separately, Includes: Ref. 11 - 14

1шт.

11

G100714

RING

wear

1шт.

Part of Seal Kit, P/N 128725A1

1шт.

12

S220090

PISTON

cylinder, Replaces: P/N G104100 piston

1шт.

13

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

SEAL piston

1шт.

Part of Seal Kit, P/N 128725A1

1шт.

14

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

Piston -226, 70 Duro, 1.984" ID x .139" Thk

1шт.

Part of Seal Kit, P/N 128725A1

1шт.

15

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

16

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, hardened, special

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

128725A1

SEAL KIT

KIT seal, Includes: Ref. 4 - 7, 11, 13 and 14 with P/N 238-5230 O-ring and P/N G32129 backup ring not used with this cylinder

1шт.
