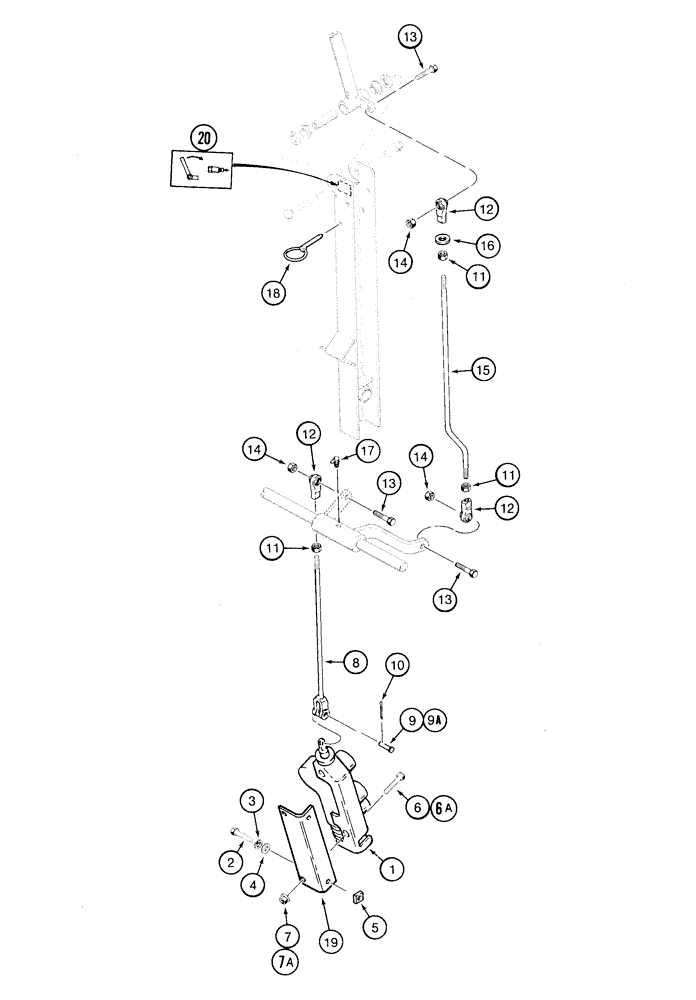

Запчасти Case IH 1835C (8-64) - AUXILIARY CONTROL VALVE AND LINKAGE USED ON MODELS WITH FOOT OPERATED LOADER CONTROLS (08) - HYDRAULICS

1

H674465

VALVE

ASSEMBLY, auxiliary control, see Figure 8-66

1шт.

2

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

3

492-11038

LOCK WASHER,3/8"

2шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

2шт.

5

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

2шт.

6

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

hex, 5/16 NC x 2-1/2 inch, if used

2шт.

6a

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

hex, 5/16 NC x 2-1/4 inch, if used

2шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC, if used

2шт.

7a

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

square, 5/16 inch NC, if used

2шт.

8

H439251

ROD

valve connecting, cast, Replaces: P/N H673903 welded connecting valve rod, also order P/N H32961 clevis pin, Ref. 9

1шт.

9

H32961

CLEVIS COUPLING,7.94mm OD x 29.34mm L

PIN clevis, special, used with P/N H439251 control rod, if used

1шт.

9a

H35279

AXLE PIN,4.72mm OD x 23.76mm L

PIN clevis, 3/16 x 57/64 inch, used with P/N H673903 control rod, if used

1шт.

10

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

11

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

3шт.

12

A32398

BALL JOINT

JOINT ball, female, 3/8 inch NF

3шт.

13

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

3шт.

14

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

3шт.

15

D128257

ROD

control lever to cross shaft

1шт.

16

495-81002

WASHER,3/8"

flat, 7/16 x 1-3/8 x 5/64 inch

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

18

H437134

LINCH PIN,6.3mm OD

PIN self-locking

1шт.

19

D128116

BRACKET

auxiliary control valve

1шт.

20

139617A1

DECAL

auxiliary hydraulics

1шт.
