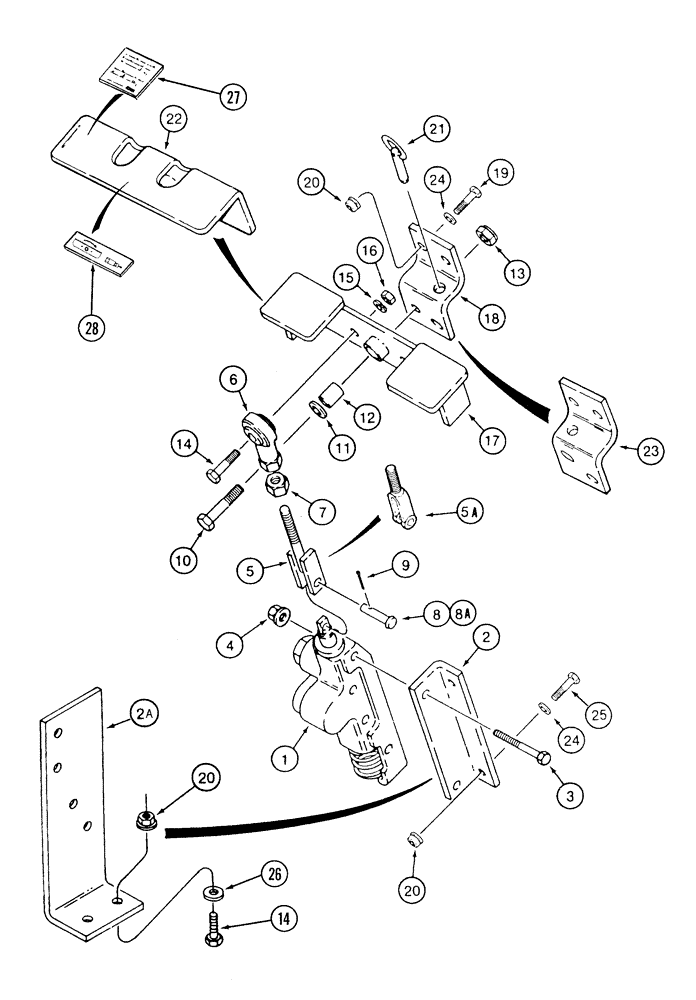

Запчасти Case IH 1835C (8-62) - AUXILLIARY CONTROL VALVE AND PEDAL MOUNTING USED ON MODELS WITH HAND OPERATED LOADER CONTROLS (08) - HYDRAULICS

1

H674465

VALVE

ASSEMBLY, auxiliary control, see Figure 8-66

1шт.

2

D128116

BRACKET

auxiliary control valve, Serial Range: -JAF0097243

1шт.

2a

121022A1

SUPPORT

BRACKET auxiliary control valve, Start Serial: JAF0097243

1шт.

3

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

hex, 5/16 NC x 2-1/2 inch

2шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

2шт.

5

D70292

ROD

control, used with P/N H35279 pin, Ref. 8, if used

1шт.

5a

H439250

CLEVIS,3/8" - 24

ROD control, cast, Replaces: P/N D70292 welded control rod, also order P/N H32961 clevis pin, Ref. 8A, if used

1шт.

6

A32398

BALL JOINT

JOINT ball, female, 3/8 inch NF

1шт.

7

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

8

H35279

AXLE PIN,4.72mm OD x 23.76mm L

PIN clevis, 3/16 x 57/64 inch, used with P/N D70292 control rod, Ref. 5, if used

1шт.

8a

H32961

CLEVIS COUPLING,7.94mm OD x 29.34mm L

PIN clevis, special, used with P/N H439250 control rod, Ref. 5A, if used

1шт.

9

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

10

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

11

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

12

L14781

BUSHING,12.8mm ID x 15.94mm OD x 25.4mm L

pedal

1шт.

13

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

14

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

1шт.

15

492-11038

LOCK WASHER,3/8"

1шт.

16

425-106

NUT,3/8"-16, Cl 5

1шт.

17

H673491

PEDAL

control valve, used with Ref. 18 bracket, Replaces: P/N D60607 pedal, Serial Range: -JAF0037077

1шт.

18

D126741

BRACKET

pedal mounting, used with Ref. 17 pedal, Serial Range: -JAF0037077

1шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

2шт.

20

231-5146

FLANGE NUT,3/8"-16

4шт.

21

D94535

PIN,9.52mm OD

locking, pedal bracket

1шт.

22

H673491

PEDAL

control valve, used with Ref. 23 bracket, Start Serial: JAF0037077

1шт.

23

H435821

BRACKET

pedal mounting, used with Ref. 22 pedal, Start Serial: JAF0037077

1шт.

24

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16"), 2 used with Ref. 2 only

4шт.

25

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch, Used with Ref. 2 only

2шт.

26

496-21041

WASHER,13/32" x 13/16" x .089", HDN

flat, hardened, 13/32 x 13/16 x 3/32", Used with Ref. 2A bracket only

2шт.

27

H439275

SEALING STRIP

STRIP anti-skid, 76/3 x 76 mm/3 inch, cut from P/N H433994 bulk strip

2шт.

28

139618A1

DECAL

auxiliary hydraulics

1шт.
