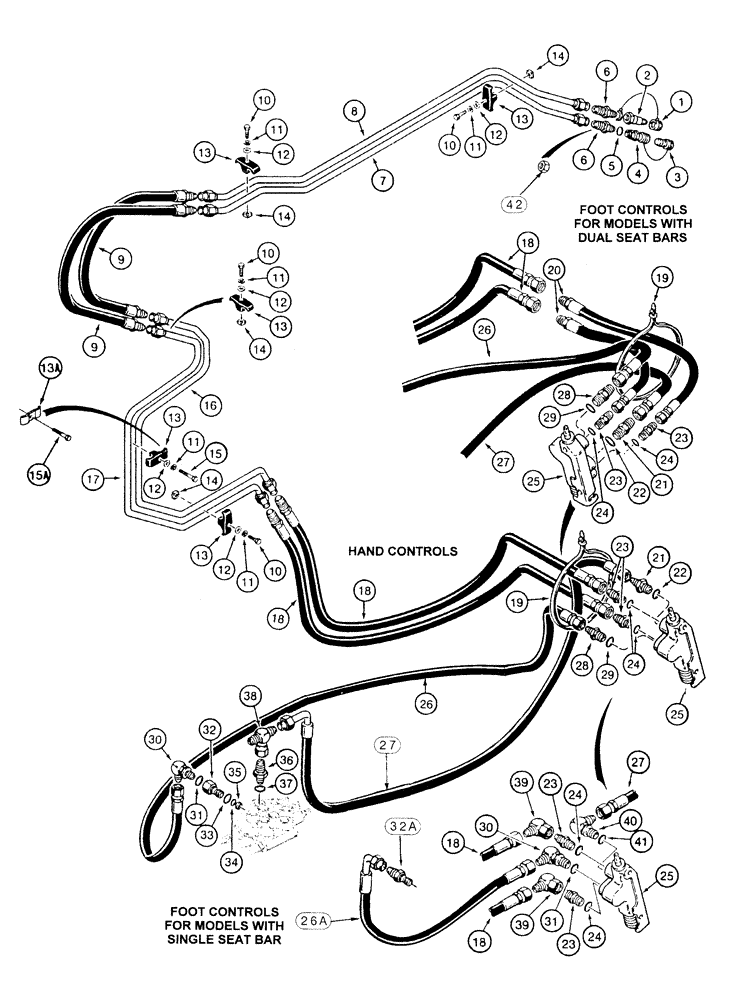

Запчасти Case IH 1835C (8-58) - AUXILIARY HYDRAULIC CIRCUIT, P.I.N. JAF0037911 AND AFTER (08) - HYDRAULICS

1

T40759

PLUG

dust, quick disconnect

1шт.

2

1272770C2

COUPLING, BREAK AWAY

COUPLING quick disconnect, male, ISO coupler, if used

1шт.

2

122180A1

COUPLING, BREAK AWAY

COUPLING quick disconnect, male, flat face, if used

1шт.

2a

238243A1

COUPLING, BREAK AWAY

COUPLING quick disconnect, male, flat face, pressure relieving, if used, not shown

1шт.

3

T40274

CAP

PLUG dust, quick disconnect

1шт.

4

H436396

COUPLING

COUPLER self sealing, female, ISO coupler, if used

1шт.

4

143431A1

COUPLING, QUICK, FEM

COUPLING quick disconnect, female, flat face, if used, Includes: Ref. 5

1шт.

5

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

Quick disconnect -210, 70 Duro, .734" ID x .139" Thk

1шт.

6

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER straight, 7/8-14 flare x 1/2 inch PT, used with ISO coupler

2шт.

6

184602A1

FITTING

ADAPTER straight, flat face, if used

2шт.

7

H673489

TUBE ASSY.,15.88 mm OD x 1102.6, 200 mm L

TUBE lower, to quick disconnect

1шт.

8

H673490

TUBE ASSY.,15.88 mm OD

TUBE upper, to quick disconnect

1шт.

9

D126740

HOSE,12.7mm ID x 850mm L, SAE 100R2

850 mm/33-1/2 inch long, intermediate

2шт.

10

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

4шт.

11

492-11038

LOCK WASHER,3/8"

1шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

1шт.

13

D120613

CLAMP,20mm ID

tube, spacer type, if used

5шт.

13a

H435737

CLAMP

tube, if used

5шт.

14

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

1шт.

15

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

hex, 3/8 NC x 2-1/2 inch

1шт.

15a

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

1шт.

16

104014A1

HYD TUBE,360786 mm Length

TUBE, crossover to intermediate hose return to "A" port of auxiliary control valve

1шт.

17

104012A1

HYD TUBE

TUBE, crossover to intermediate hose supply from "B" port of auxiliary control valve

1шт.

18

D134508

HOSE

1750 mm/68-7/8 inch long, from tube at auxiliary control valve

2шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

20

H436880

HOSE

600 mm/23-5/8 inch long, crossover tubes to control valve, used on models with foot controls and self-leveling

2шт.

21

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

23

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. Ref. 24

2шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

25

H674465

VALVE

ASSEMBLY, auxiliary control, see Figure 8-66

1шт.

26

H435865

HOSE ASSY.,15.88mm ID x 2150mm L

HOSE, 2150 mm/84-5/8 inch long, for models with dual seat bar

1шт.

26a

130470A1

HOSE ASSY.,15.88mm ID x 2150mm L

HOSE, 2150 mm/84-5/8 inch long, supply, to"In" port of loader control valve, for models with single seat bar

1шт.

27

H436149

HOSE,19.05mm ID x 1950mm L, SAE 100R1

1950 mm/76-3/4 inch long, return, to "Out" port of loader control valve

1шт.

28

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

30

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8-14 inch flare x adj O-ring boss, 90°, Incl. Ref. 31

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

H436154

FITTING,7/8" - 14

ADAPTER power beyond, for models with dual seat bar, Includes: Ref. 32 - 35

1шт.

32

NSS

NOT SOLD SEPARAT

SLEEVE power beyond

1шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

34

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

35

A52424

BACK-UP RING

RING backup, small

1шт.

129878A1

FITTING

SLEEVE ASSEMBLY, power beyond, for models with single seat bar, Includes: Ref. 32A - 35

1шт.

36

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss, Includes: Ref. 37

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

38

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

1-1/16-12 inch swivel branch x flare x flare

1шт.

39

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.

40

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

1-1/16-12 flare x 7/8-14 inch adjusting O-ring boss, 90°, Includes: Ref. 41

1шт.

41

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, If used

1шт.

42

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, , Used with P/N 184602A1, flat face coupler Blkhd, 7/8"-14

2шт.
