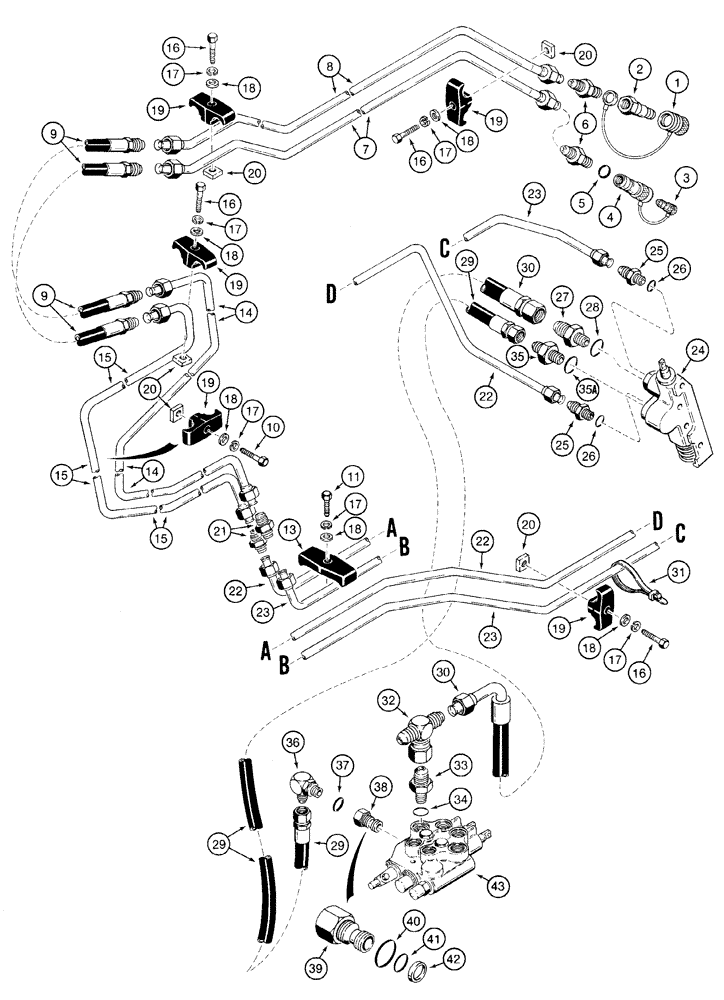

Запчасти Case IH 1835C (8-56) - AUXILLARY HYDRAULIC CIRCUIT P.I.N. JAF0037367 THROUGH JAF0037910 (08) - HYDRAULICS

1

T40759

PLUG

dust, quick disconnect

1шт.

2

1272770C2

COUPLING, BREAK AWAY

COUPLING quick disconnect, male

1шт.

3

T40274

CAP

PLUG dust, quick disconnect

1шт.

4

H436396

COUPLING

COUPLER self sealing, female, Includes: Ref. 5

1шт.

5

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

Quick disconnect -210, 70 Duro, .734" ID x .139" Thk

1шт.

6

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER straight, 7/8-14 flare x 1/2 inch PT

2шт.

7

H673489

TUBE ASSY.,15.88 mm OD x 1102.6, 200 mm L

TUBE lower, to quick disconnect

1шт.

8

H673490

TUBE ASSY.,15.88 mm OD

TUBE upper, to quick disconnect

1шт.

9

D126740

HOSE,12.7mm ID x 850mm L, SAE 100R2

850 mm/33-1/2 inch long, intermediate

2шт.

10

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

hex, 3/8 NC x 2-1/2 inch

1шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

1шт.

13

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

plastic, tubes to quick disconnects

1шт.

14

H673588

TUBE,0.625" OD

crossover to intermediate hose

1шт.

15

H673587

TUBE,0.625" OD

crossover to intermediate hose

1шт.

16

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

4шт.

17

492-11038

LOCK WASHER,3/8"

6шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

6шт.

19

D120613

CLAMP,20mm ID

tube, spacer type

5шт.

20

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

5шт.

21

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR straight, 7/8-14 inch flare

2шт.

22

H673303

TUBE ASSY.,0.625" OD

TUBE crossover, upper

1шт.

23

H673302

TUBE ASSY.,0.625" OD

TUBE crossover, lower

1шт.

24

REF

INSTRUCTION

VALVE ASSEMBLY auxiliary control, for correct assembly and components see Figure 8-66

1шт.

25

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. Ref. 26

2шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

27

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss, Includes: Ref. 28

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

29

H435865

HOSE ASSY.,15.88mm ID x 2150mm L

HOSE, 2150 mm/84-5/8 inch long, supply, from control valve

1шт.

30

H436149

HOSE,19.05mm ID x 1950mm L, SAE 100R1

1950 mm/76-3/4 inch long, return, to control valve

1шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

32

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

1-1/16-12 inch swivel branch x flare x flare

1шт.

33

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss, Includes: Ref. 34

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

35

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 35A

1шт.

35a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

36

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8-14 inch flare x adjusting O-ring boss, Incl. Ref. 37

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

38

H436154

FITTING,7/8" - 14

ADAPTER power beyond, Includes: Ref. 37 - 42

1шт.

39

NSS

NOT SOLD SEPARAT

SLEEVE power beyond

1шт.

40

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

41

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

42

A52424

BACK-UP RING

RING backup, sleeve

1шт.

43

REF

INSTRUCTION

VALVE ASSEMBLY, loader control, for correct assembly and components see Figure 8-16 - 8-22

1шт.
