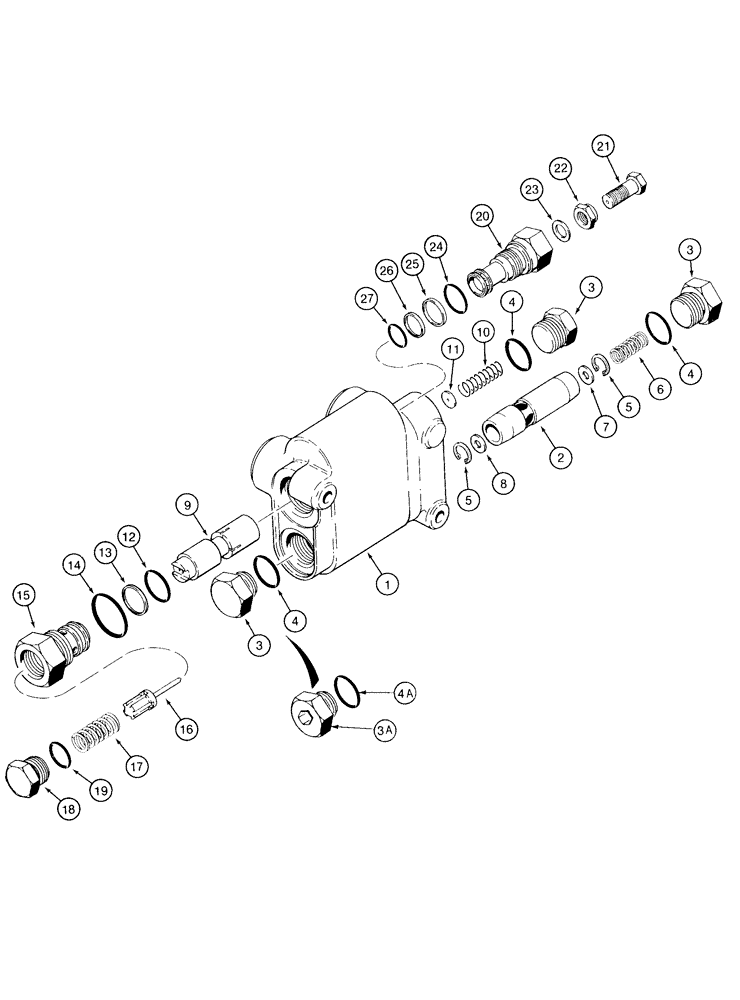

Запчасти Case IH 1835C (8-24) - SELF-LEVELING VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
H673705
VALVE
ASSEMBLY, self-leveling, see Figure 8-06 for mounting hardware, Includes: Ref. 1 - 27
1шт.
1
NSS
NOT SOLD SEPARAT
BODY valve
1шт.
2
NSS
NOT SOLD SEPARAT
SPOOL flow divider
1шт.
3
86512512
PLUG,7/8" - 14 ORB
hex, 7/8-14 inch O-ring boss, If used, Incl. Ref. 4
3шт.
4
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
4a
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
5
A59973
SNAP RING,0.50", Int, #50
Ring, Snap, 0.50", Int, #50
2шт.
6
H438336
SPRING
flow divider spool
1шт.
7
H438330
LARGE PLATE
PLATE orifice, .173 inch diameter, outer
1шт.
8
H438331
LARGE PLATE
PLATE orifice, .204 inch diameter, inner
1шт.
9
NSS
NOT SOLD SEPARAT
SPOOL metering
1шт.
10
H438335
SPRING
metering spool, plug end
1шт.
11
H438332
LARGE PLATE
PLATE orifice
1шт.
12
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
13
A52424
BACK-UP RING
RING backup
1шт.
14
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
15
H438333
JACK SCREW
CARTRIDGE metering spool
1шт.
16
H438334
VALVE
POPPET cartridge
1шт.
17
H438337
SPRING
metering spool, cartridge end
1шт.
18
214389
PLUG,3/4" - 16 ORB
1шт.
19
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
H674615
VALVE
ASSEMBLY, relief, Includes: Ref. 20 - 27
1шт.
20
NSS
NOT SOLD SEPARAT
BODY relief valve
1шт.
21
H438229
ADJUSTMENT SCREW
relief valve
1шт.
22
H438228
NUT
relief valve
1шт.
23
H438328
SEAL,7.94mm ID x 11.11mm OD x 1.59mm Thk
Teflon
1шт.
24
238-6017
O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro
1шт.
25
H438329
GASKET
RING backup, large
1шт.
26
H438044
GASKET
RING backup, small
1шт.
27
238-6015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro
1шт.
Выбрано товаров: 31
