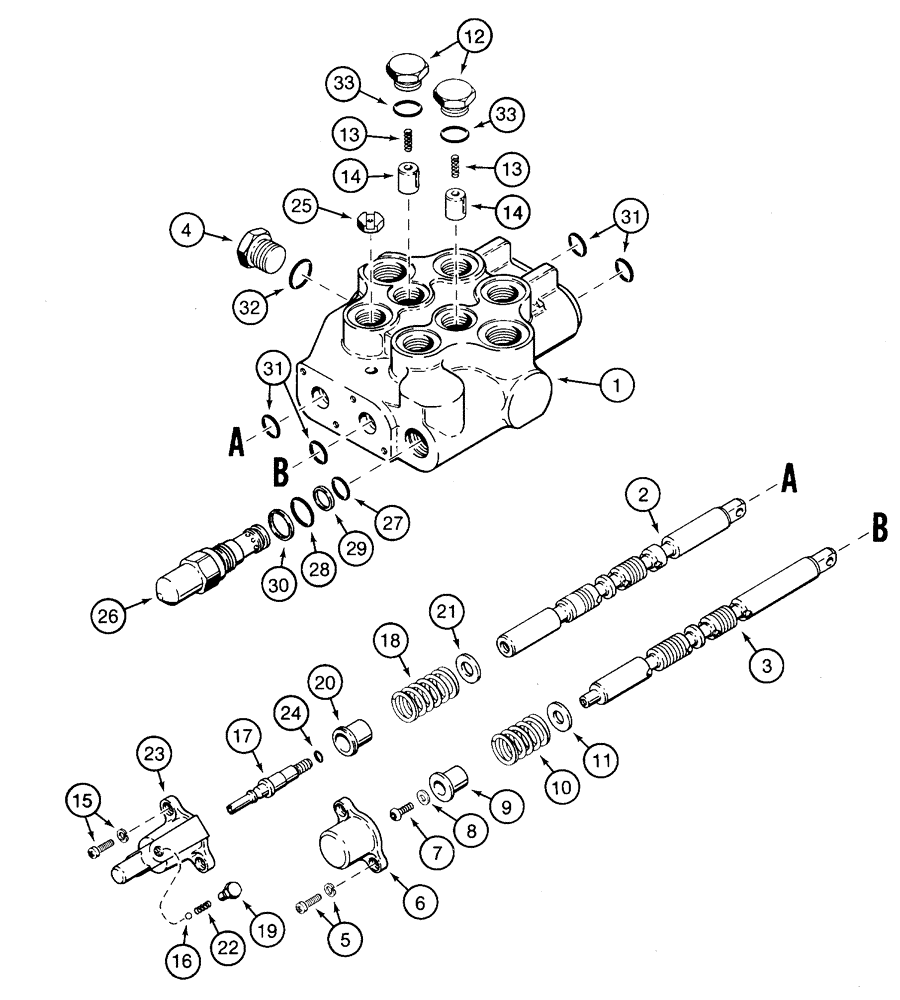

Запчасти Case IH 1835C (8-16) - LOADER CONTROL VALVE USED ON MODELS WITHOUT SELF-LEVELING PRIOR TO P.I.N. JAF0118550 (08) - HYDRAULICS

H673218

VALVE

ASSEMBLY, loader control, no longer available, order P/N H674734 valve, Includes: Ref. 2 - 24, Serial Range: JAF0037367-JAF0037681

1шт.

P/N H674734 valve may be used on models prior to P.I.N. JAF0037367 if used with 4, P/N 218-5059 adapters and 1, P/N H436154 power beyond sleeve. See Figure 8-58 for sleeve.

1шт.

H674307

VALVE

ASSEMBLY, loader control, no longer available, order P/N H674734 valve, Includes: Ref. 2 - 24, Serial Range: JAF0037682-JAF0037784

1шт.

P/N H674734 valve may be used on models prior to P.I.N. JAF0037367 if used with 4, P/N 218-5059 adapters and 1, P/N H436154 power beyond sleeve. See Figure 8-58 for sleeve.

1шт.

H674734

VALVE

ASSEMBLY, loader control, Includes: Ref. 2 - 24, Start Serial: JAF0037785

1шт.

P/N H674734 valve may be used on models prior to P.I.N. JAF0037367 if used with 4, P/N 218-5059 adapters and 1, P/N H436154 power beyond sleeve. See Figure 8-58 for sleeve.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

2

H674795

CONVERSION PACKAGE

KIT spool, loader lift, for P/N H673218 and H674307 valves, code white, if used, Includes: Ref. 5 - 11

1шт.

2

H674796

CONVERSION PACKAGE

KIT spool, loader lift, for P/N H673218 and H674307 valves, code black, if used, Includes: Ref. 5 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL loader lift

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL loader bucket

1шт.

4

H436435

PLUG

power beyond

1шт.

H673571

KIT

centering spring

1шт.

5

NSS

NOT SOLD SEPARAT

SCREW, includes lock washer, end cap

2шт.

6

N9528

CAP

bucket spool end

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW spring seat, bucket spool

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER spring seat, bucket spool

1шт.

9

N9529

SEAT

spring, bucket spool

1шт.

10

N9539

TENSION SPRING

SPRING centering, bucket spool

1шт.

11

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

142999A1

KIT

load check, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

PLUG load check

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING load check

1шт.

14

NSS

NOT SOLD SEPARAT

POPPET load check

1шт.

H673573

KIT

detent float, used with P/N H673218 control valve, Includes: Ref. 15 - 24

1шт.

H674617

SET

KIT detent float, used with P/N H674307 or H674734 control valve, Includes: Ref. 15 - 24

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW includes lock washer, detent float

2шт.

16

NSS

NOT SOLD SEPARAT

BALL detent cap

2шт.

17

NSS

NOT SOLD SEPARAT

SPOOL detent

1шт.

18

D86558

SPRING

return

1шт.

19

D86560

SCREW

PLUG detent

2шт.

20

D86559

SEAT

spring, lift spool

1шт.

21

D86557

WASHER

lift spool

1шт.

22

N9506

COIL SPRING

SPRING detent

2шт.

23

N9540

COVER

HOUSING detent

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING detent spool

1шт.

P/N 1959793C1 is being substituted to C2 cap, replace this hose and P/N 1959795C1 plug

1шт.

H673218

VALVE

ASSEMBLY, loader control, no longer available, order P/N H674734 valve, Includes: Ref. 25 - 33, Serial Range: JAF0037367-JAF0037681

1шт.

H674307

VALVE

ASSEMBLY, loader control, no longer available, order P/N H674734 valve, Includes: Ref. 25 - 33, Serial Range: JAF0037682-JAF0037784

1шт.

H674734

VALVE

ASSEMBLY, loader control, Includes: Ref. 25 - 33, Start Serial: JAF0037785

1шт.

25

H436436

PLATE

orifice

1шт.

26

H673574

VALVE, PRESSURE RELI

VALVE ASSEMBLY, main relief, Includes: Ref. 27 - 36

1шт.

H674535

GASKET KIT

KIT seal, main relief valve; Incl 27 - 36

1шт.

H673570

SEAL PACKAGE

Seal Kit, Incl 27 - 30

1шт.

27

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

Relief valve, inner -017, 90 Duro, .676" ID x .070" Thk

1шт.

28

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

Relief valve, outer -015, 90 Duro, .551" ID x .070" Thk

1шт.

29

H438329

GASKET

RING backup, relief valve, inner

1шт.

30

H438044

GASKET

RING backup, relief valve, outer

1шт.

34

H438328

SEAL,7.94mm ID x 11.11mm OD x 1.59mm Thk

Teflon, valve body, not shown

1шт.

35

H438228

NUT

relief valve, power beyond plug, not shown

1шт.

36

H438229

ADJUSTMENT SCREW

relief valve, load check plug, not shown

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

H673569

KIT

seal

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING detent spool

1шт.

31

H438030

O-RING

valve body

4шт.

32

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Power beyond plug

1шт.

33

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Load check plug

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

H673570

SEAL PACKAGE

KIT seal, external, main relief valve, Includes: Ref. 27 - 30

1шт.
