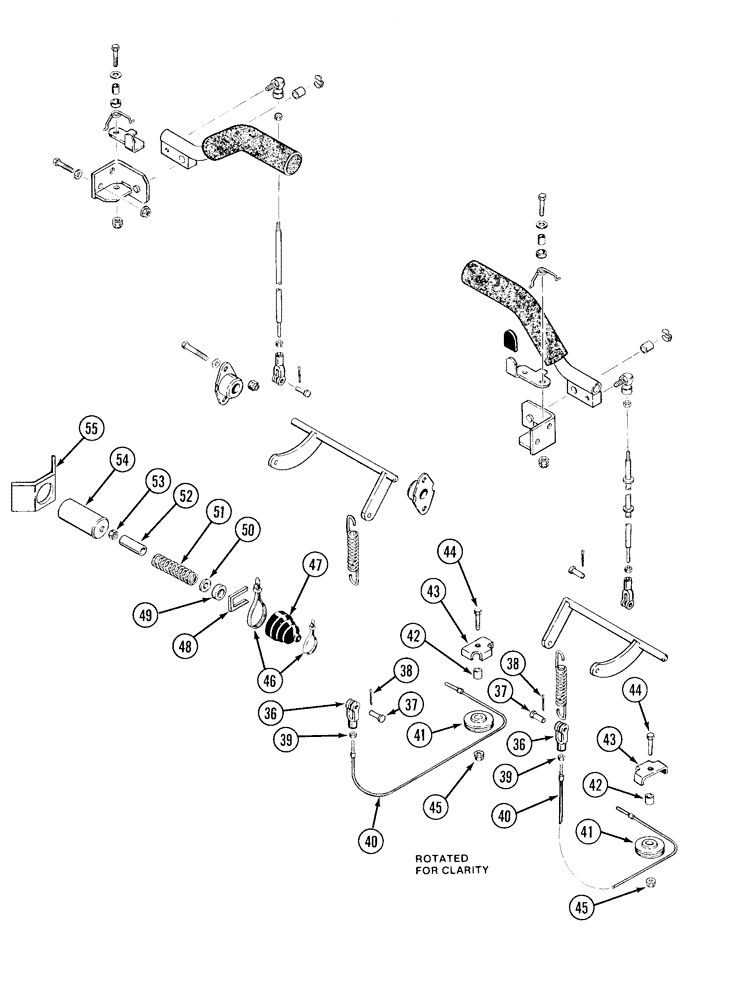

Запчасти Case IH 1835C (7-14) - PARKING LATCH AND SEAT BARS USED ON MODELS WITH DUAL SEAT BARS AND ONE PULLEY PER SIDE (07) - BRAKES

36

H169300

CLEVIS

adjustable, 1/4 inch NC

2шт.

37

D23693

AXLE PIN

PIN clevis, 1/4 x 1 inch long

2шт.

38

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

RETAINER clevis pin, special

2шт.

39

425-144

JAM NUT,Jam, 1/4"-20, G5

hex, jam, 1/4 inch NC

2шт.

40

H438180

CABLE

at pulleys, lower

2шт.

41

D124465

PULLEY,54mm OD

cable

2шт.

42

D95743

SPACER

cable pulley

2шт.

43

D124466

RETAINER

cable pulley

2шт.

44

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

2шт.

45

231-5146

FLANGE NUT,3/8"-16

2шт.

109017A1

SET

KIT service, parking brake tube, with instruction sheet, Includes: Ref. 46 - 55, Start Serial: JAF0037911

2шт.

46

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

2шт.

47

D70018

BOOT

rubber, seal

1шт.

48

H438614

CLIP

retaining

1шт.

49

T28521

SPACER

clip

1шт.

50

495-81108

WASHER,.281" x 1" x .109"

flat, 9/32 x 1 x 1/8 inch

1шт.

51

D91040

SPRING

at latch pin

1шт.

52

H435266

SPACER

tubular

1шт.

53

425-144

JAM NUT,Jam, 1/4"-20, G5

hex, jam, 1/4 inch NC

1шт.

54

D64228

PIN,25.45mm OD x 53.34mm L

latch

1шт.

55

D136906

BRACKET

support

1шт.
