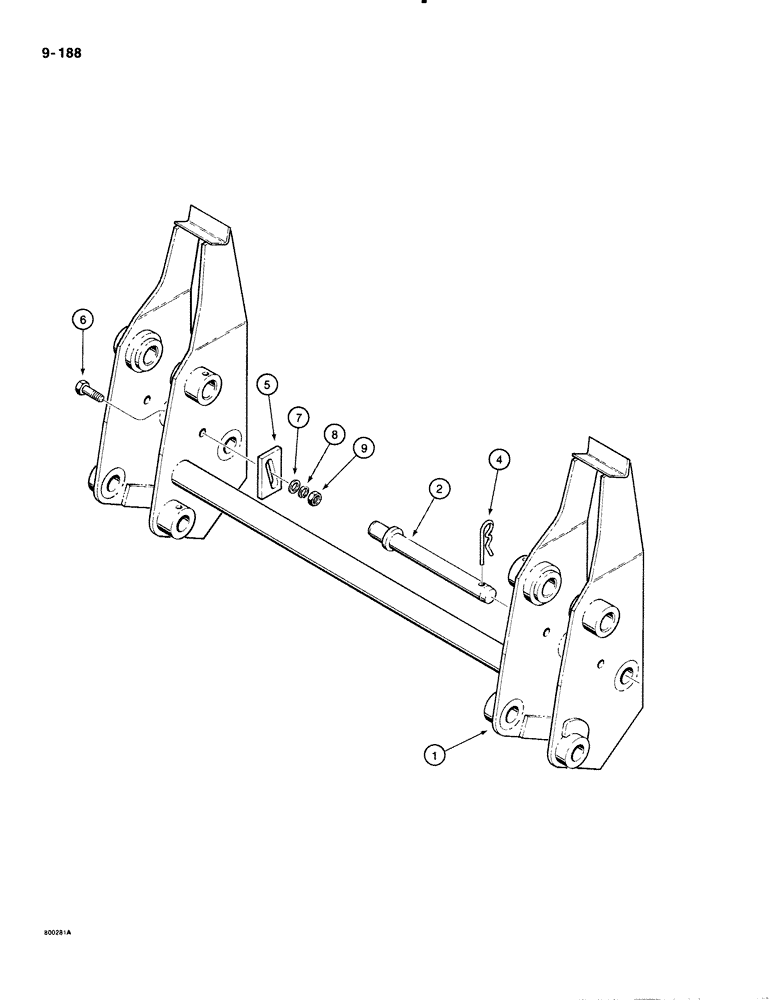

Запчасти Case IH 1835B (9-188) - LOADER ATTACHMENT BAR (09) - CHASSIS/ATTACHMENTS

1

D90661

BAR ASSY.

BAR loader attachment

1шт.

2

D132172

PIN

loader attachment, Serial Range: bar-bucket

2шт.

3

RESERVED

1шт.

4

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

HAIR PIN loader attachment bar pin

2шт.

5

T40044

WEDGE

STOP bucket

2шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

7

195-525

WASHER,3/8", SAE

flat, 3/8", plated

2шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
