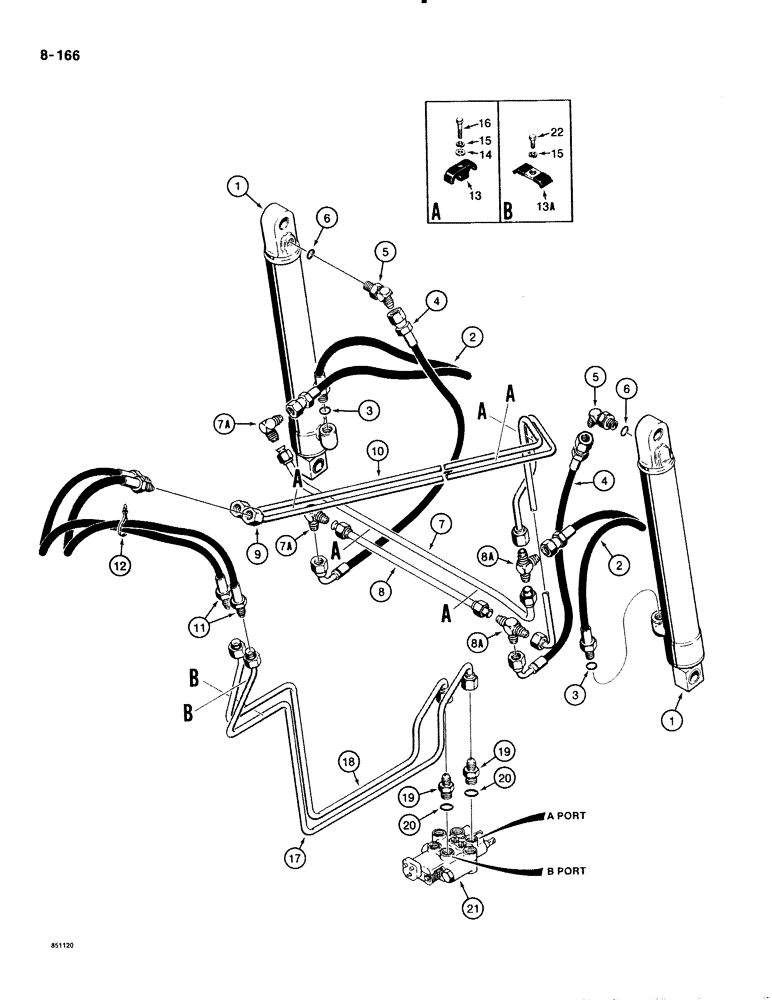

Запчасти Case IH 1835B (8-166) - LOADER BUCKET CYLINDER HYDRAULIC CIRCUIT, (*PIN 9862050 AND AFTER) (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER bucket tilt, parts list Fig. 8-180

2шт.

2

D61499

HOSE

hydraulic, bucket cylinder, rod end, 18", 457 mm long, Includes: Ref. 3

2шт.

4

D61500

HOSE

hydraulic, bucket cylinder closed end, 22", 559 mm long

2шт.

5

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

45 degree, male, adjustable, Incl. Ref 6

2шт.

7

D123613

TUBE

bucket, crossover, rod end

1шт.

See Fig. 8-164 for tractors with brazed bucket crossover tubes and metal tube clamps.

1шт.

7a

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

2шт.

See Fig. 8-164 for tractors with brazed bucket crossover tubes and metal tube clamps.

1шт.

8

D123609

TUBE

bucket, crossover, closed end

1шт.

See Fig. 8-164 for tractors with brazed bucket crossover tubes and metal tube clamps.

1шт.

8a

218-594

TEE,3/4"-16, 37 Degree

male

2шт.

See Fig. 8-164 for tractors with brazed bucket crossover tubes and metal tube clamps.

1шт.

9

D123611

TUBE

bucket, on lift arm, outer

1шт.

See Fig. 8-164 for tractors with brazed bucket crossover tubes and metal tube clamps.

1шт.

10

D61497

TUBE

bucket, on lift arm, inner

1шт.

11

D61484

HOSE

hydraulic, bucket, 29", 737 mm long

2шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.

13

D120679

CLAMP,Tube, 1/2"

tube, plastic

5шт.

See Fig. 8-164 for tractors with brazed bucket crossover tubes and metal tube clamps.

1шт.

13a

D33316

CLAMP

tube, metal with plastic coated ends

2шт.

See Fig. 8-164 for tractors with brazed bucket crossover tubes and metal tube clamps.

1шт.

14

195-103

WASHER,5/16"

flat, , plated 5/16"

5шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

7шт.

16

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex head, 5/16" - 18 NC x 1-1/4", plated

5шт.

17

D90193

HYD TUBE,0.5" OD x 32.06, 23" L

TUBE to valve, front

1шт.

18

D90262

HYD TUBE,0.5" OD x 29.11, 23" L

TUBE to valve, rear

1шт.

19

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, Incl. Ref 20 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

adapter

1шт.

21

REF

INSTRUCTION

VALVE hydraulic, 2 spool, parts list Fig. 8-172

1шт.

22

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
