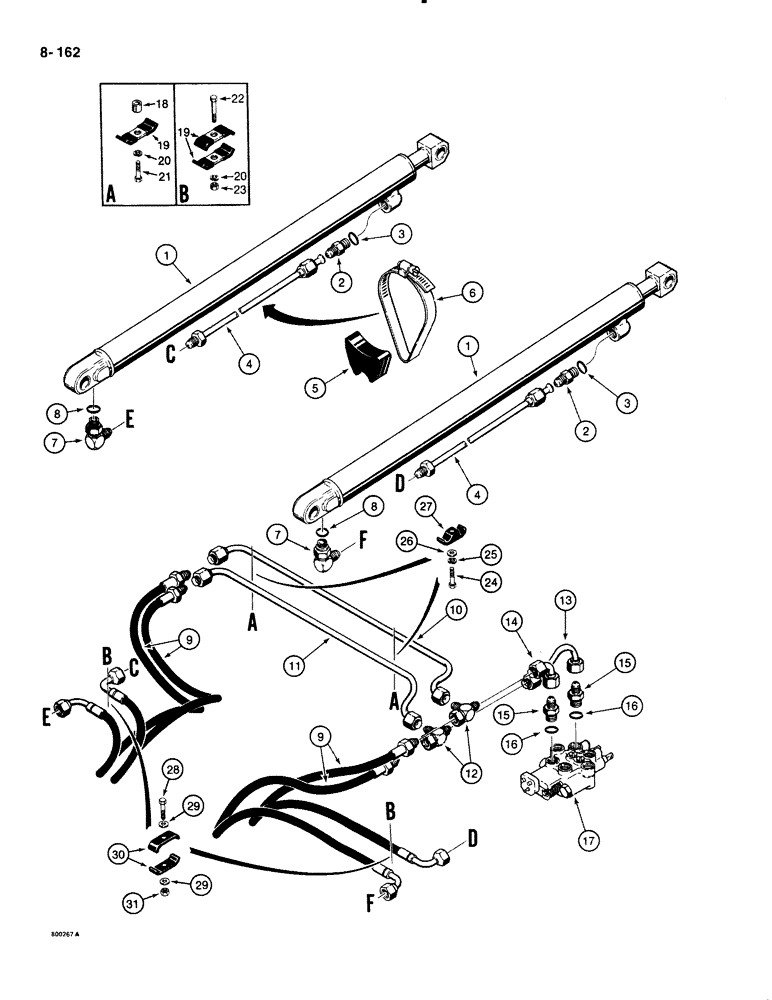

Запчасти Case IH 1835B (8-162) - LOADER LIFT CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER lift, parts list Fig. 8-178

2шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Male, Incl. Ref 3 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

4

D123901

TUBE

lift cylinder, rod end

2шт.

Ref. 18-23 depict the clamping arrangement for models with metal clamps. Ref. 24-31 depict the clamping arrangement for models with plastic clamps.

1шт.

5

D38648

BLOCK

SADDLE rubber, lift cylinder

2шт.

6

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP lift cylinder

2шт.

7

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, adjustable, Includes: Ref. 8

2шт.

9

D93312

HOSE,9.53mm ID x 500mm L, SAE 100R2

lift, 24", 610 mm long

4шт.

10

D94331

HYD TUBE,0.5" OD x 28.1, 3.1" L

TUBE lift, crossover, front

1шт.

Ref. 18-23 depict the clamping arrangement for models with metal clamps. Ref. 24-31 depict the clamping arrangement for models with plastic clamps.

1шт.

11

D94333

HYD TUBE,0.5" OD x 26.1, 2.5" L

TUBE lift, crossover, rear

1шт.

Ref. 18-23 depict the clamping arrangement for models with metal clamps. Ref. 24-31 depict the clamping arrangement for models with plastic clamps.

1шт.

12

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

male

2шт.

13

D87736

HYD TUBE,0.5" OD x 4.55, 5.2" L

TUBE lift, A port

1шт.

14

D87738

HYD TUBE,0.5" OD x 2.35" L

TUBE lift, B port

1шт.

15

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, Incl. Ref 16 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

adapter

1шт.

17

REF

INSTRUCTION

VALVE hydraulic, 2 spool, parts list Fig. 8-172

1шт.

18

D33551

BUSHING

SPACER tube, used with D33316 clamp

2шт.

19

D33316

CLAMP

tube, metal with plastic coated ends, if used

6шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

21

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

22

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

If used Hex, 5/16"-18 x 1 3/4", G5

2шт.

23

9635082

NUT,5/16" - 18, Gr 5

If used 5/16"-18, G5

2шт.

24

113-520

BOLT,Hex, 9/16" - 12 x 3-1/4", Gr 5

hex head, 5/16" - 18 NC x 1-1/4", plated

2шт.

Ref. 18-23 depict the clamping arrangement for models with metal clamps. Ref. 24-31 depict the clamping arrangement for models with plastic clamps.

1шт.

25

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

Ref. 18-23 depict the clamping arrangement for models with metal clamps. Ref. 24-31 depict the clamping arrangement for models with plastic clamps.

1шт.

26

195-103

WASHER,5/16"

flat, , plated, used with D120679 clamp 5/16"

2шт.

Ref. 18-23 depict the clamping arrangement for models with metal clamps. Ref. 24-31 depict the clamping arrangement for models with plastic clamps.

1шт.

27

D120679

CLAMP,Tube, 1/2"

tube, plastic, if used

2шт.

Ref. 18-23 depict the clamping arrangement for models with metal clamps. Ref. 24-31 depict the clamping arrangement for models with plastic clamps.

1шт.

28

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5, Used with D120614 clamp

2шт.

Ref.18-23 depict the clamping arrangement for models with metal clamps. Ref. 24-31 depict the clamping arrangement for models with plastic clamps.

1шт.

29

195-103

WASHER,5/16"

flat, , plated, used with D120614 clamp 5/16"

4шт.

Ref. 18-23 depict the clamping arrangement for models with metal clamps. Ref. 24-31 depict the clamping arrangement for models with plastic clamps.

1шт.

30

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

tube, plastic, if used

4шт.

Ref. 18-23 depict the clamping arrangement for models with metal clamps. Ref. 24-31 depict the clamping arrangement for models with plastic clamps.

1шт.

31

131-4

LOCK NUT,5/16"-18, GB

NUT hex, self locking, 5/16" - 18 NC, used with D120614 clamp

2шт.

Ref. 18-23 depict the clamping arrangement for models with metal clamps. Ref. 24-31 depict the clamping arrangement for models with plastic clamps.

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
