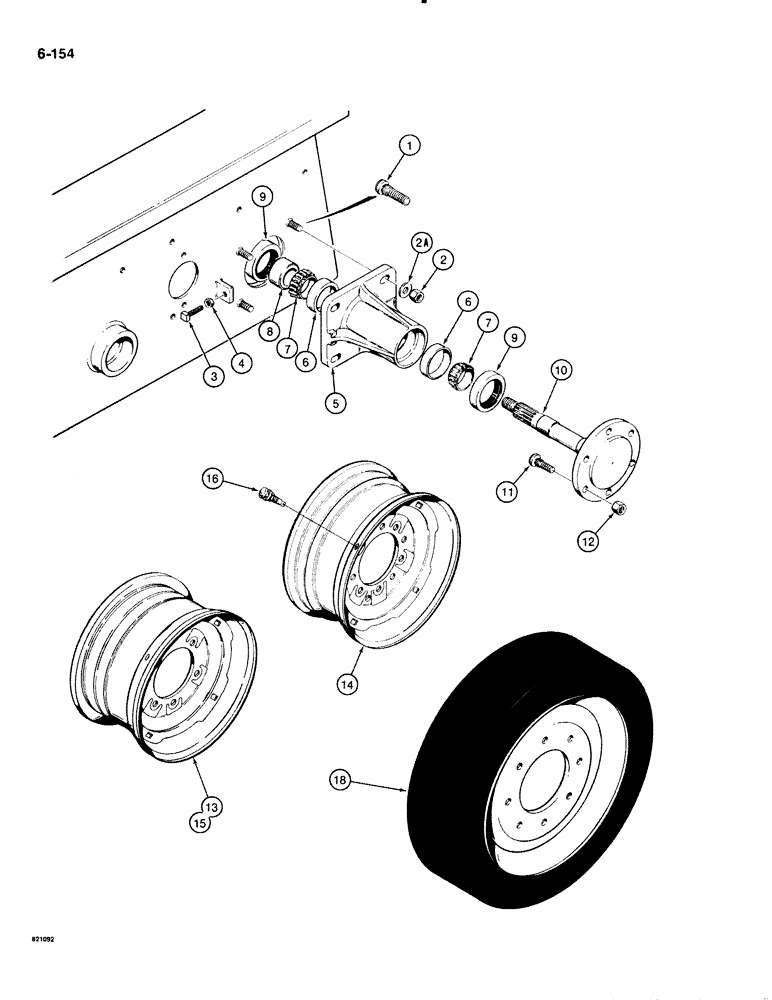

Запчасти Case IH 1835B (6-154) - AXLES AND WHEELS (06) - POWER TRAIN

1

D79943

BOLT

special, press in

16шт.

2

131-915

FLANGE NUT,Flg, 1/2"-20, G5

hex, flange type, 1/2" - 20 NF

16шт.

2a

D73296

WASHER,14.22mm ID x 31.75mm OD x 4.75mm Thk

special

16шт.

3

85-636

SET SCREW,Sq Hd, 3/8"-16 x 2 1/4"

square head, cup point, 3/8" - 16 NC x 2-1/4"

3шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

D90258

HUB

ASSEMBLY axle, Includes: Ref. 5-6

4шт.

5

NSS

NOT SOLD SEPARAT

HUB axle

1шт.

6

D53762

BEARING CUP,2.892" OD x 0.62"

CUP bearing, race

2шт.

7

D53766

TAPERED BEARING,1.7812" ID x 0.78"

BEARING cone

8шт.

8

D58925

SPACER

axle

4шт.

9

D53767

OIL SEAL,57.15mm ID x 85.75mm OD x 11mm Thk

oil

8шт.

D59095

AXLE

AXLE ASSEMBLY axle and bolts, Includes: Ref. 10-11

4шт.

10

NSS

NOT SOLD SEPARAT

AXLE wheel

1шт.

11

D91709

WHEEL BOLT

BOLT special, wheel

6шт.

12

F23214

WHEEL NUT

special, wheel

24шт.

13

T40663

WHEEL

one piece, used with 7.00" x 15" tire

4шт.

14

T40839

WHEEL

one piece, used with 10.00" x 16.5" flotation tire

4шт.

15

G57007

WHEEL

one piece, offset, used with 7.00" x 15" tire

4шт.

16

D48692

VALVE

STEM wheel

4шт.

Ref #16A - T57461 Valve Stem with D1366529 Wheels 03/21/96

1шт.

17

D55063

CHAIN (AG)

CHAIN tire, for use with item 19 or 20, not shown

4шт.

18

REF

INSTRUCTION

TIRE solid rubber, Includes wheel, 7.00" x 15", machinery item, see Fig. 2 for ordering

4шт.

18

REF

INSTRUCTION

TIRE solid rubber, Includes wheel, 6.50" x 16", machinery item, see Fig. 2 for ordering

4шт.

19

REF

INSTRUCTION

TIRE 7.00" x 15", 6 ply, nylon, not shown, machinery item, see Fig. 2 for ordering

4шт.

20

REF

INSTRUCTION

TIRE 7.00" x 15", 6 ply, steel cap, not shown, machinery item, see Fig. 2 for ordering

4шт.

21

REF

INSTRUCTION

TIRE 10" x 16.5", 6 ply, flotation, not shown, machinery item, see Fig. 2 for ordering

4шт.
