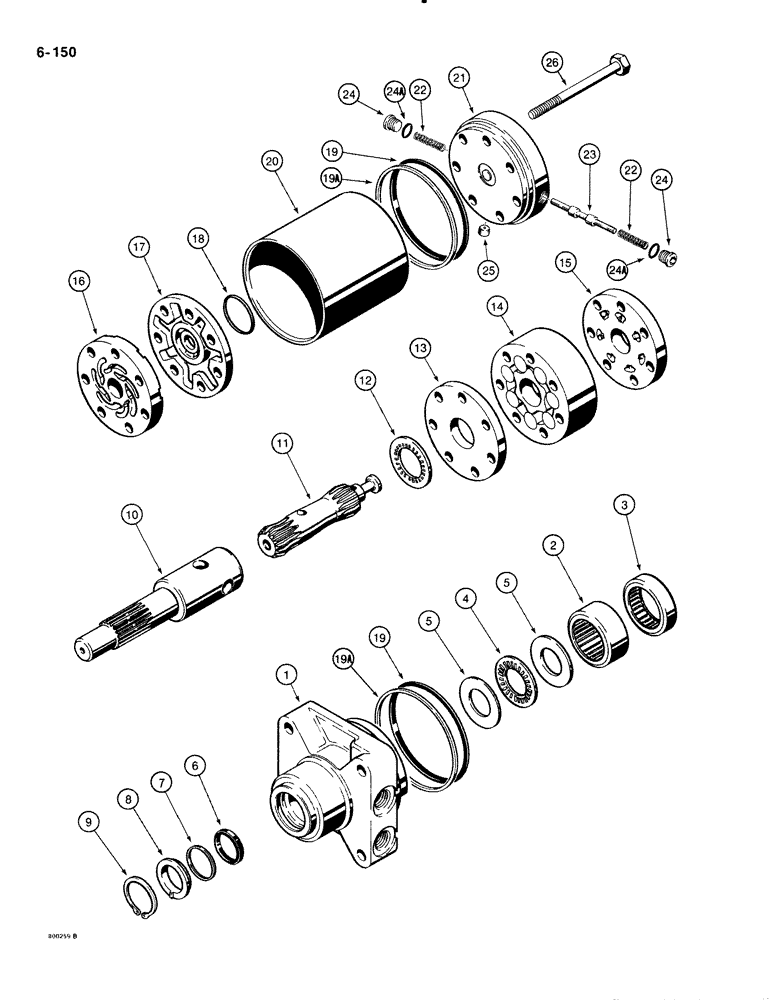

Запчасти Case IH 1835B (6-150) - D127145 HYDROSTATIC DRIVE MOTOR (06) - POWER TRAIN

D127145

MOTOR, HYDRAULIC

MOTOR hydrostatic drive, Includes P/N N7603 and Ref. 1-26

2шт.

D137338R

REMAN-HYD MOTOR

1835B, Reman For New P/N D127145

2шт.

D137338C

Return Number

CORE-HYDRAULIC PUMP

1шт.

N7603

HOUSING

ASSEMBLY motor, Includes Ref. 1-5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING motor

1шт.

2

D60862

NEEDLE BEARING

large

1шт.

Ref #2 - Description should be Small 03/21/96

1шт.

3

A32424

NEEDLE BEARING,1.875" ID x 2.2505" OD x 1"

small

1шт.

Ref #3 - Description should be Large 03/21/96

1шт.

4

D60860

THRUST BEARING,1.366" ID x 2.24" OD x 0.125"

shaft

1шт.

5

D60861

WASHER

THRUST WASHER bearing

2шт.

6

N9703

SEAL

shaft, inner

1шт.

Part of seal kit P/N N6972

1шт.

7

N9516

SHIM

SEAL shaft, outer

1шт.

Part of seal kit P/N N6972

1шт.

8

N6702

RING

BACKUP RING seal

1шт.

Part of seal kit P/N N6972

1шт.

9

N9702

RING, SNAP

RETAINING RING backup ring

1шт.

10

N6703

SHAFT

coupling

1шт.

11

N6704

LINK

drive

1шт.

12

D59698

THRUST BEARING,1.25" ID x 2.247" OD x 0.1094"

link

1шт.

13

N6705

PLATE

wear

1шт.

14

N6706

KIT

ROTOR drive motor

1шт.

15

N6707

PLATE

manifold

1шт.

16

N6708

MANIFOLD

plate

1шт.

17

D60857

COMMUTATOR

Includes center ring

1шт.

18

N6709

RING,39.47mm ID x 42.67mm OD x 1.65mm Thk

seal, small

1шт.

Part of seal kit P/N N6972

1шт.

19

N9509

SEALING RING

RING seal, large

2шт.

Part of seal kit P/N N6972

1шт.

19a

N8747

RING

BACKUP RING teflon, seal

2шт.

Part of seal kit P/N N6972

1шт.

20

N6710

SLEEVE

motor

1шт.

N8441

CAP

ASSEMBLY end, Includes Ref. 21, 22, 23, 24 and 25

1шт.

21

NSS

NOT SOLD SEPARAT

CAP end

1шт.

22

N8442

SPRING

end cap

2шт.

23

N7783

VALVE

end cap

1шт.

24

278548

PLUG,Hex, 7/16"-20 ORB

End cap, Incl Ref 24A Hex Soc, 7/16"-20 ORB

2шт.

24a

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

plug

1шт.

25

N7760

FITTING

ORIFICE end cap

1шт.

26

D121739

BOLT

special

7шт.

N6972

SEAL KIT

KIT Includes: Ref. 6, 7, 8, 18, 19, 19A; N6972 Seal Kit Used to Contain Seals for a 1-1/2", Must Order Seal Kit 174397C2 for the 1-1/4" Shaft

1шт.

N9544 Dust Shield not shown goes on shaft outside Ref #9 Retaining Ring

1шт.
