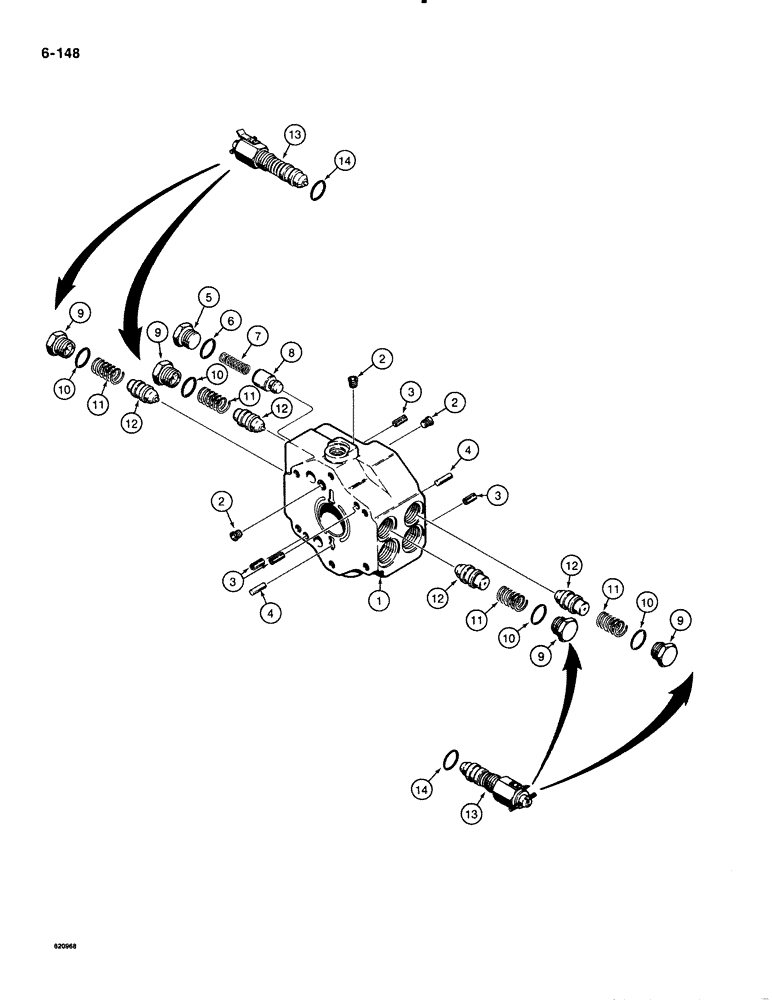

Запчасти Case IH 1835B (6-148) - TANDEM PUMP ASSEMBLY, VALVE BLOCK, OPTIONAL DRIVE CIRCUIT RELIEF VALVE, ALLOWS MACHINE TO BE TOWED (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
D94119
PUMP
ASSEMBLY tandem, Sperry Vickers, right hand and left hand drive, also Includes parts on Figs. 6-144 and 6-146, tandem pump assembly valve block
1шт.
NSS
NOT SOLD SEPARAT
VALVE BLOCK ASSEMBLY tandem pump, Includes: Ref. 1-12, tandem pump assembly alve block
1шт.
1
N8299
BLOCK
valve, tandem pump assembly valve block
1шт.
2
221-841
PLUG
hex socket head, 1/4" NPT, tandem pump assembly valve block
3шт.
3
A47301
PIN
DOWEL PIN valve block to pump housing, tandem pump assembly valve block
4шт.
4
A47309
PIN
headless, 1/4" x 1/2", tandem pump assembly valve block
2шт.
5
N8324
PLUG
charge circuit relief valve, tandem pump assembly valve block
1шт.
6
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
charge circuit relief valve, tandem pump assembly valve block
1шт.
7
N8325
SPRING
charge circuit relief valve, tandem pump assembly valve block
1шт.
8
N8300
VALVE POPPET
POPPET charge circuit relief valve, tandem pump assembly valve block
1шт.
Ref #8 - Replaced by 115834A1 03/21/96
1шт.
9
N7923
PLUG
drive circuit relief valve, tandem pump assembly valve block
4шт.
10
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
drive circuit relief valve, tandem pump assembly valve block
4шт.
11
N7925
SPRING
drive circuit relief valve, tandem pump assembly valve block
4шт.
12
N7926
VALVE
CARTRIDGE drive circuit relief valve, tandem pump assembly valve block
4шт.
D123773
VALVE
CIRCUIT RELIEF VALVE optional, must be installed in all four circuit relief valve locations, Replaces: Ref. 9-12 above, if used, Allows Machine to be towed
4шт.
13
NSS
NOT SOLD SEPARAT
CARTRIDGE ASSEMBLY circuit relief valve, Optional drive allows machine to be towed
1шт.
14
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
circuit relief valve, Optional drive allows machine to be towed
1шт.
Выбрано товаров: 18
