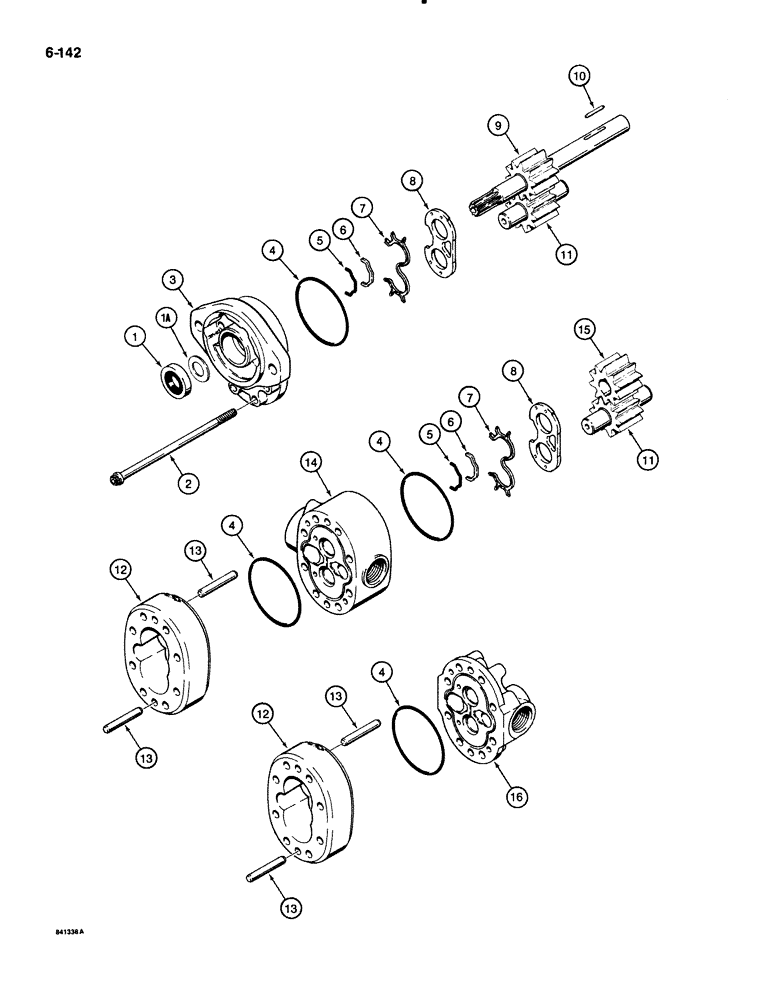

Запчасти Case IH 1835B (6-142) - D121753 DUAL PUMP (06) - POWER TRAIN

D121753

PUMP, HYDRAULIC

PUMP dual, Cessna No. 25389-RAA, Includes: Ref. 1-11

1шт.

1

H83733

SEAL

shaft

1шт.

Part of seal kit P/N N8933

1шт.

1a

N13135

WASHER

special, shaft seal

1шт.

2

166-78

SCREW,Flg, 5/16" - 18 x 6 1/2", Gr 8

BOLT Ferry head, 5/16" - 18 NC x 6-1/2"

8шт.

3

N8932

COVER

front

1шт.

4

H758599

O-RING,2.989" ID x 3.129" OD

pump body

4шт.

Part of seal kit P/N N8933

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING molded

2шт.

Part of seal kit P/N N8933

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL bearing

2шт.

Part of seal kit P/N N8933

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET wear plate

2шт.

Part of seal kit P/N N8933

1шт.

8

NSS

NOT SOLD SEPARAT

WEAR PLATE pump body

2шт.

Part of seal kit P/N N8933

1шт.

9

N8931

GEAR-SET

DRIVE GEAR AND SHAFT pump

1шт.

10

N8934

KEY

drive gear shaft

1шт.

11

N8929

GEAR-SET

DRIVEN GEAR AND SHAFT pump

2шт.

N8927

BODY

ASSEMBLY pump, Includes: Ref. 12-13

2шт.

12

NSS

NOT SOLD SEPARAT

BODY pump

1шт.

13

71120

VALVE

DOWEL PIN body

4шт.

14

N8930

PLATE ASSY.

BODY center

1шт.

15

N8928

GEAR

rear, drive gear shaft

1шт.

16

N8926

PLATE

COVER rear

1шт.

N8933

PACKAGE, REPAIR

KIT seal, Includes: Ref. 1, 4, 5, 6, 7 and 8

1шт.
