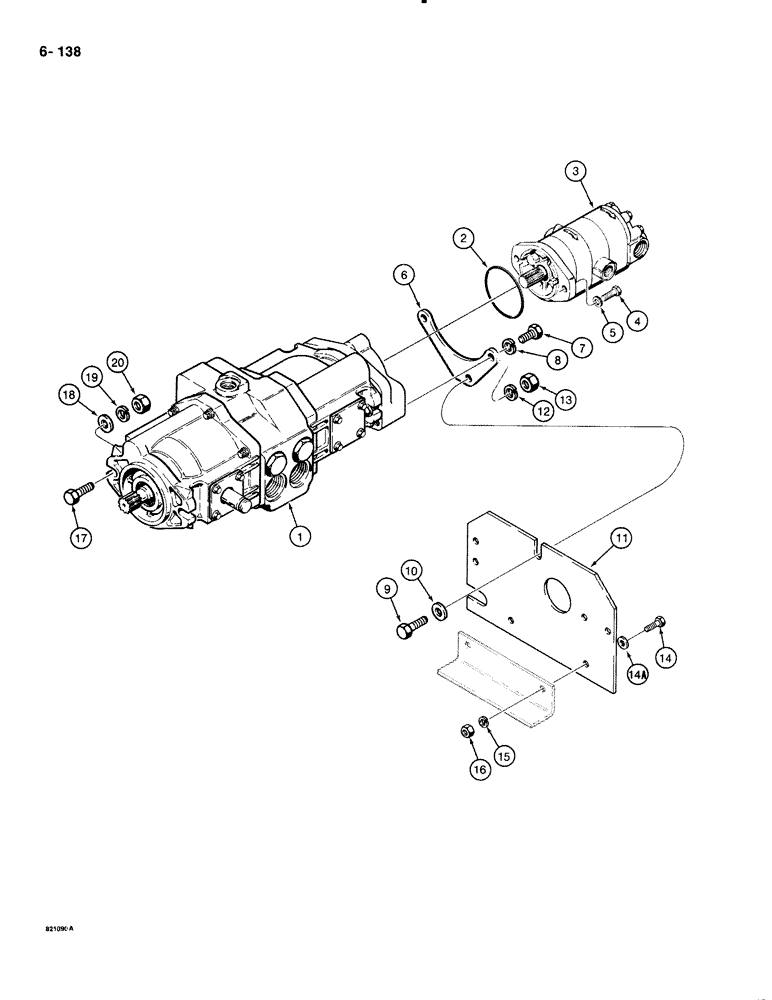

Запчасти Case IH 1835B (6-138) - TANDEM PUMP ASSEMBLY AND MOUNTING (06) - POWER TRAIN

1

D94119

PUMP

ASSEMBLY tandem, right hand and left hand drive, parts list Figs. 6-144 thru 6-148

1шт.

2

A32190

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

tandem pump to dual pump

1шт.

3

D82186

PUMP

dual, parts list Fig. 6-140

1шт.

363595A1R

REMAN-HYD PUMP

1835B Reman for new P/N D82186

1шт.

363595A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

D121753

PUMP, HYDRAULIC

PUMP dual, parts list Fig. 6-142

1шт.

4

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

5

195-2028

WASHER,.391" x 5/8" x .065"

flat, 3/8"

2шт.

6

D124392

BRACKET

pump

1шт.

7

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

10

195-533

WASHER,1/2", SAE

flat, 1/2", plated

1шт.

11

D124391

PLATE

pump support

1шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

14a

195-2028

WASHER,.391" x 5/8" x .065"

flat, 3/8"

2шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

17

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

18

196-16

WASHER,.521" x 1" x .179", HDN

hardened, 1/2"

2шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

20

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.
