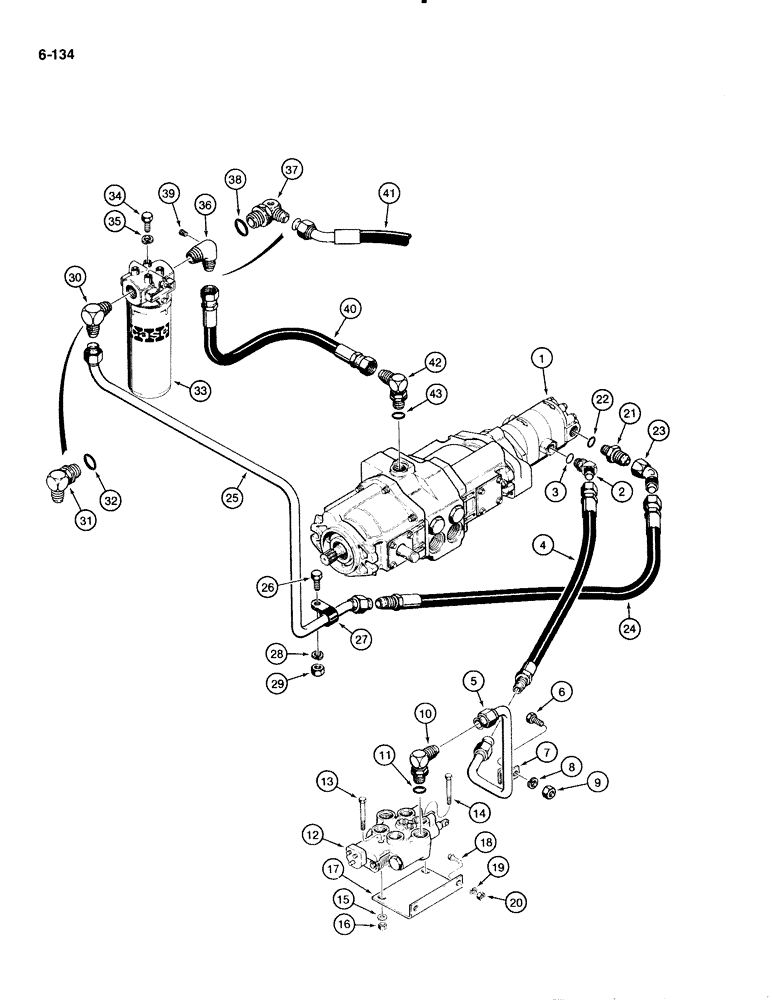

Запчасти Case IH 1835B (6-134) - TANDEM PUMP HYDRAULIC CIRCUIT, CHARGING AND LOADER CONTROL VALVE LINES (06) - POWER TRAIN

1

REF

INSTRUCTION

PUMP tandem, mounting and parts list Fig. 6-138

1шт.

2

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

45 degree, adjustable, used on models with D82186 pump, see Fig. 6-140 for pump identification

1шт.

2

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

45 degree, adjustable, used on models with D121753 pump, see Fig. 6-142 for pump identification, Includes: Ref. 3

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

elbow

1шт.

4

D61392

HOSE

pump to valve, 20", 508 mm long, used on models with D82186, pump, see Fig. 6-140 for pump identification

1шт.

4

36570

HOSE ASSY.

HOSE pump to valve, 20-1/2", 521 mm long, used on models with D121753 pump, see Fig. 6-142 for pump identification

1шт.

5

D83969

HYD TUBE,0.75" OD x 7, 10.18" L

TUBE valve inlet

1шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

7

D41165

CLAMP,19mm ID, 10.5mm Bolt Hole, J Type

tube

1шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

10

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

90 degree, adjustable, Includes: Ref. 11

1шт.

12

REF

INSTRUCTION

VALVE loader control, see parts list Fig. 8-172

1шт.

13

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

14

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

15

195-521

WASHER,5/16", SAE

flat, 5/16", plated

2шт.

16

131-665

LOCK NUT,5/16"-18, GB

NUT hex, self locking, 5/16" - 18 NC, plated

2шт.

17

D60089

BRACKET

loader control valve

1шт.

18

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

21

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, male, used on models with D82186 pump, see Fig. 6-140 for pump identification

1шт.

21

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, male, used on models with D121753 pump, see Fig. 6-142 for pump identification, Incl. Ref. 22

1шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

adapter

1шт.

23

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

45 degree, used on models with D82186 pump, see Fig. 6-140 for pump identification

1шт.

24

720-8197

HOSE ASSY.

HOSE charge pump to charge filter, 31-1/2", 800 mm long

1шт.

25

D94329

HYD TUBE,0.75" OD x 22.4, 18.2" L

TUBE charge circuit outlet

1шт.

26

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

27

49855

CLAMP

charge circuit outlet

1шт.

28

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

29

192-102

WASHER

NUT hex, 3/8" - 16 NC, plated

1шт.

30

218-1046

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

90 degree, used on models with D126666 filter, see Fig. 8-176 for filter identification

1шт.

31

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90 degree, adjustable, used on models with D131330 filter, see Fig. 8-176 for filter identification, Includes: Ref. 32

1шт.

32

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

elbow

1шт.

33

REF

INSTRUCTION

FILTER hydraulic oil, parts list Fig. 8-176

1шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

36

D94355

ELBOW

90 degree, special, used on models with D126666 filter, see Fig. 8-176 for filter identification

1шт.

37

D131329

FITTING

ELBOW 90 degree, special, used on models with D131330 filter, see Fig. 8-176 for filter identification, Includes: Ref. 38

1шт.

38

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

elbow, used with D131329

1шт.

39

221-1661

PLUG

elbow, if used

1шт.

40

L77087

HOSE

pump to filter, 20-1/2", 521 mm long, used on models with D82186 pump, see Fig. 6-140 for pump identification

1шт.

41

D125973

HOSE ASSY.

HOSE pump to filter, 16-1/2", 420 mm long, used on models with D121753 pump, see Fig. 6-142 for pump identification

1шт.

42

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

90 degree, adjustable, Includes: Ref. 43

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

43

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
