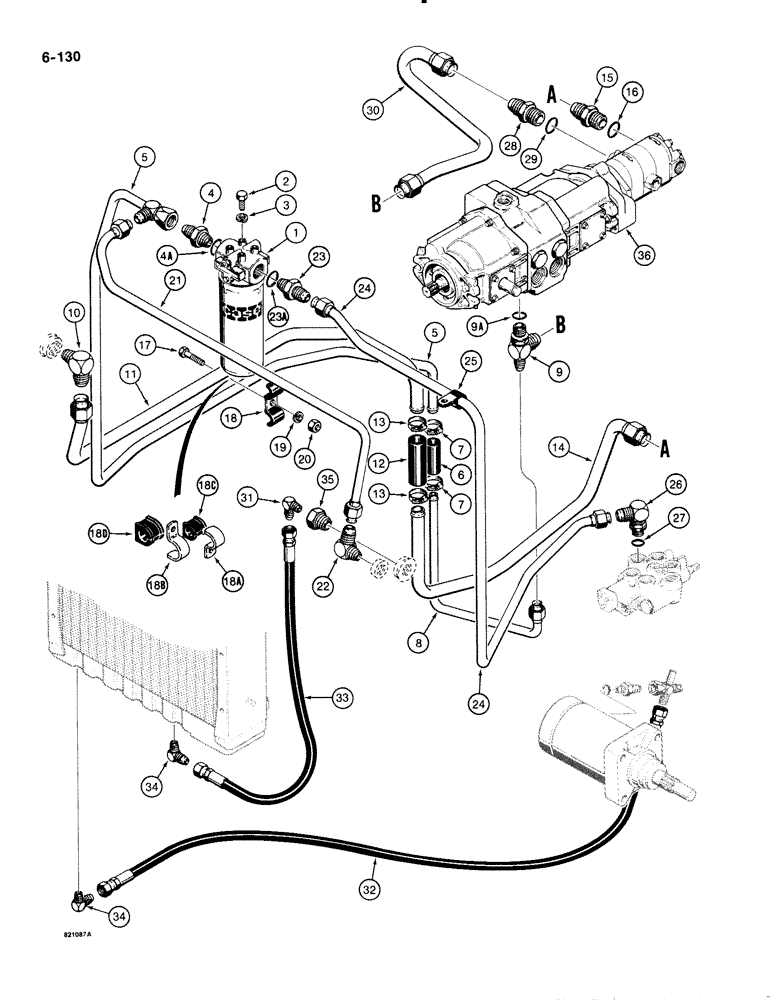

Запчасти Case IH 1835B (6-130) - TANDEM PUMP HYDRAULIC CIRCUIT, SUCTION, RETURN, AND OIL COOLER LINES (06) - POWER TRAIN

1

REF

INSTRUCTION

FILTER hydraulic oil, part list Fig. 8-176

1шт.

2

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

218-1027

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

ADAPTER straight, equipment filter, used on tractors with D126666 filter, see page 177 for filter identification

1шт.

4

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER straight, equipment filter, used on tractors with D131330 filter, see page 177 for filter identification, Incl. Ref. 4A

1шт.

4a

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

used with 218-5077 adapter

1шт.

5

D125328

TUBE

filter to case drain, used on tractors with D82186 pump, see Fig. 6-140 for pump identification

1шт.

5

D132716

TUBE ASSY.

TUBE filter to case drain, used on tractors with D121753 pump, see Fig.

1шт.

6

D121521

HYDRAULIC HOSE,15.88 mm ID x 75.00 mm

Tube to Tube, Used on tractors with D82186 pump, See Fig. 6-140 for pump identification, Order D125080 bulk hose, Item 6A, and cut to length 15.88 mm ID x 75.00 mm

1шт.

6

R20804

HOSE,19.00 mm ID x 76.20 mm, SAE 100R3

Tube to Tube, Used on Tractors with D121753 Pump, See Fig. 6-142 for Pump Identification, Order D65488 Bulk Hose, Item 6B, and Cut to Length 19.00 mm ID x 76.20 mm, SAE 100R3

1шт.

6a

D125080

HYDRAULIC HOSE,15.88 mm ID x 150.00 mm

15.90 mm ID x 150.00 mm, Not Shown

1шт.

6b

D65488

HOSE,0.75" ID x 40.00"

Not Shown 0.75" ID x 40.00"

1шт.

7

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP hose

2шт.

8

D94354

HYD TUBE,0.625" OD x 11, 9.3" L

TUBE hose to case drain, used on tractors with D82186 pump, see Fig. 6-140 for pump identification

1шт.

8

D125330

TUBE

hose to case drain, used on tractors with D121753 pump, see Fig. 6-142 for pump identification

1шт.

9

218-5247

TEE,37 Degree, 7/8"-14, 1 1/16"-12 O-Ring Run, 1 5/16"-12

pump drain, used on tractors with D82186 pump, see Fig. 6-140 for pump identification

1шт.

9

218-5298

TEE,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring Run

pump drain, used on tractors with D121753 pump, see Fig. 6-142 for pump identification, Includes: Ref. 9A

1шт.

9a

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

tee

1шт.

10

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

90 degree, male

1шт.

11

D90165

HYD TUBE,1" OD x 31.73, 7.3" L

TUBE equipment suction

1шт.

12

R12351

LARGE HOSE

HOSE 1", 25 mm ID x 4", 102 mm long, order D32678 bulk hose, Ref. 12A, and, Serial Range: cut-length

1шт.

12a

D32678

HOSE

1", 25 mm ID x 31", 787 mm long, not shown

1шт.

13

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP hose

2шт.

14

D94321

HYD TUBE,1" OD x 22.2, 8.4" L

TUBE charge pump suction, used on tractors with D82186 pump, see Fig. 6-140 for pump identification

1шт.

14

D124165

PIPE

TUBE charge pump suction, used on tractors with D121753 pump, see Fig. 6-142 for pump identification

1шт.

15

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

ADAPTER equipment pump, used on tractors with D82186 pump, see Fig. 141 for pump identification

1шт.

15

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter equipment pump, used on tractors with D121753 pump, see Fig. 1432 for pump identification, Incl. Ref. 16

1шт.

16

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

adapter

1шт.

17

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Used with R15257 double tube clamp Hex, 3/8"-16 x 2", G5

1шт.

17

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Used with D74192 and D68846 clamps Hex, 3/8"-16 x 1 1/2", G5

1шт.

18

R15257

CLAMP

double tube, used on tractors with D82186 pump, see Fig. 141, for pump identification

1шт.

18a

D74192

CLAMP

equipment suction tube, used on tractors with D121753 pump, see Fig. 143 for pump identification

1шт.

18b

D68846

CLAMP

filter to case drain tube, used on tractors with D121753 pump, see Fig. 143 for pump identification

1шт.

18c

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR tube, if used

1шт.

18d

D67297

BLOCK

INSULATOR tube, if used

1шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

21

D132714

PIPE

TUBE, Serial Range: filter-tank

1шт.

22

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

charge suction tank

1шт.

23

218-1027

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

ADAPTER straight, equipment filter, used on tractors with D126666 filter, see Fig. 177 for filter identification

1шт.

23

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER straight, equipment filter, used on tractoris with D131330 filter, see Fig. 177 for filter identification, Incl. Ref. 23A

1шт.

23a

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

used with 218-5077 adapter

1шт.

24

D132712

TUBE ASSY.

TUBE, Serial Range: filter-valve

1шт.

25

49855

CLAMP

tube

1шт.

26

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

90 degree, Includes: Ref. 27

1шт.

28

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., equipment pump, used on tractors with D82186 pump, see Fig. 141 for pump identification

1шт.

28

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter equipment pump, used on tractors with D121753 pump, see Fig. 143 for pump identification, Incl. Ref. 29

1шт.

29

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

adatper

1шт.

30

D94327

HYD TUBE,1" OD x 22.6, 13.2" L

TUBE equipment suction, used on tractors with D82186 pump, see Fig. 141 for identification

1шт.

30

D124167

TUBE ASSY.

TUBE equipment suction, used on tractors with D82186 pump, see Fig. 143 for pump identification

1шт.

31

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

90 degree, from cooler

1шт.

32

D121695

HOSE

to cooler, 60", 1550 mm long

1шт.

33

D121823

HOSE

to cooler to tank 26-9/16", 675 mm long

1шт.

34

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

90 degree

1шт.

35

221-63

BUSHING

3/8" x 1" reducer

1шт.

36

REF

INSTRUCTION

PUMP tandem, parts list and mounting Fig. 139

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
