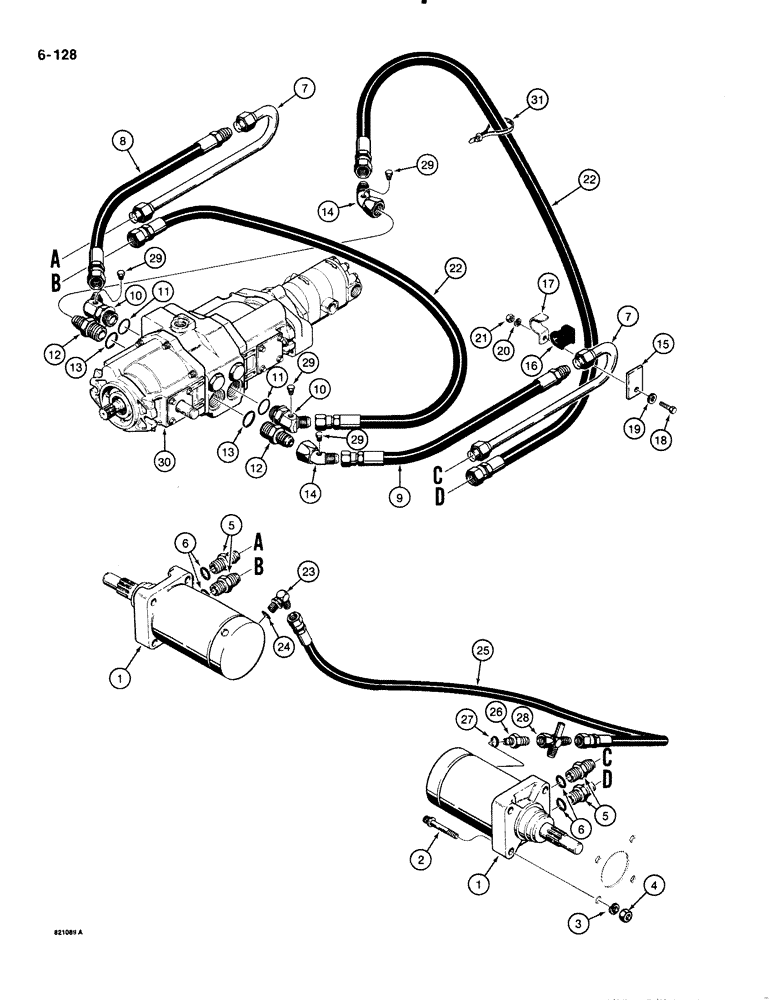

Запчасти Case IH 1835B (6-128) - HYDROSTATIC DRIVE MOTOR CIRCUIT (06) - POWER TRAIN

1

REF

INSTRUCTION

MOTOR hydrostatic drive, parts list Fig. 6-150

2шт.

2

166-91

12 PT SCREW,Flg, 1/2" - 13 x 2 1/2, Gr 8

BOLT hex head, 1/2" - 13 NC x 2-1/2"

8шт.

3

92-8

LOCK WASHER,1/2"

8шт.

4

129-556

NUT,1/2"-13, G8

8шт.

5

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, drive motors, Includes: Ref. 6

4шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

adapter

1шт.

7

D94323

HYD TUBE,0.75" OD x 15.87, 3" L

TUBE drive motors

2шт.

8

D94381

HOSE

hydraulic, 16-3/4", 425 mm long

1шт.

9

D94380

HOSE

hydraulic, 17-23/32", 450 mm long

1шт.

10

D94356

FITTING

ELBOW 45 degree, male, special, Includes: Ref. 11

2шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

elbow

1шт.

12

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER straight, pump, Incl. Ref. 13

2шт.

13

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

adapter

1шт.

14

D94357

ELBOW UNION

ELBOW adapter

2шт.

15

D94379

PLATE

spacer

2шт.

16

D74182

GROMMET,3/4" ID x 1.46" L

BLOCK isolation

2шт.

17

D74192

CLAMP

tube

2шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

19

D70868

WASHER,9.53mm ID x 19.05mm OD x 3.05mm Thk

special, 3/8"

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC, plated

2шт.

22

D122777

HOSE

hydraulic, 49-7/32", 1250 mm long

2шт.

23

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

motor, Includes: Ref. 24

1шт.

24

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

25

D121694

HOSE

hydraulic, 19-11/16", 500 mm long

1шт.

26

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER straight, Includes: Ref. 27

1шт.

27

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

28

D121814

FITTING

TEE adapter

1шт.

29

221-1849

PLUG

hex head, 1/8" NPT, 2 each used with Ref. 10 and 14

8шт.

30

REF

INSTRUCTION

PUMP tandem, parts list and mounting parts Fig. 6-138

1шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.
