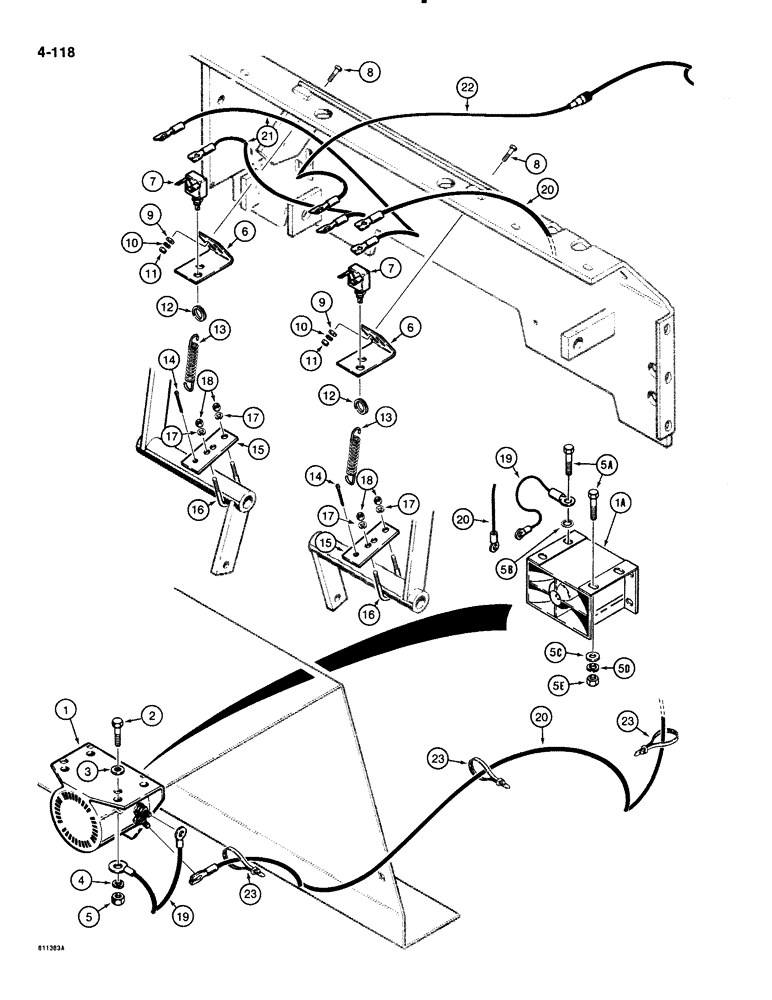

Запчасти Case IH 1835B (4-118) - BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

D75814

BUZZER

BACKUP ALARM round type, if used

1шт.

1a

D121972

ALARM

BACKUP ALARM rectangular type, if used

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Used with D75814 alarm Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

3

195-104

WASHER,3/8"

flat, , plated, used with D75814 alarm 3/8"

2шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Used with D75814 alarm 3/8"

2шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Used with D75814 alarm 3/8"-16, G5

2шт.

5a

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Used with D121972 alarm

4шт.

5b

193-82

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, , Used with D121972 alarm Int Tooth, 5/16"

1шт.

5c

195-521

WASHER,5/16", SAE

flat, 5/16", plated, used with D121972 alarm

4шт.

5d

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Used with D121972 alarm 5/16"

4шт.

5e

9635082

NUT,5/16" - 18, Gr 5

Used with D121972 alarm 5/16"-18, G5

4шт.

6

D90629

BRACKET

switch mounting

2шт.

7

D86365

SWITCH

backup alarm

2шт.

8

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

9

195-518

WASHER,1/4", SAE

flat, 1/4", plated

2шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

12

D86363

RING

spring

2шт.

13

D90627

SPRING

bar

2шт.

14

132-89

COTTER PIN,3/16" x 3/4"

Pin, Split (Cotter), 3/16" x 3/4"

2шт.

15

D90628

BAR

spring mounting

2шт.

16

F60581

BOLT

U-BOLT bar spring mounting

2шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

19

D70125

ELECTRICAL WIRE

WIRE 6", 152 mm

1шт.

20

D86438

ELECTRICAL WIRE

WIRE 54", 1372 mm

1шт.

21

D72939

ELECTRICAL WIRE

WIRE - 14", 356 mm

2шт.

22

D91859

FUSE

WIRE 20", 508 mm, with 14 amp fuse

1шт.

22a

223-15

FUSE,15 Amp, Type 3AG

15 amp, AGC, service Replacement for 14 amp fuse, not shown

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

3шт.
