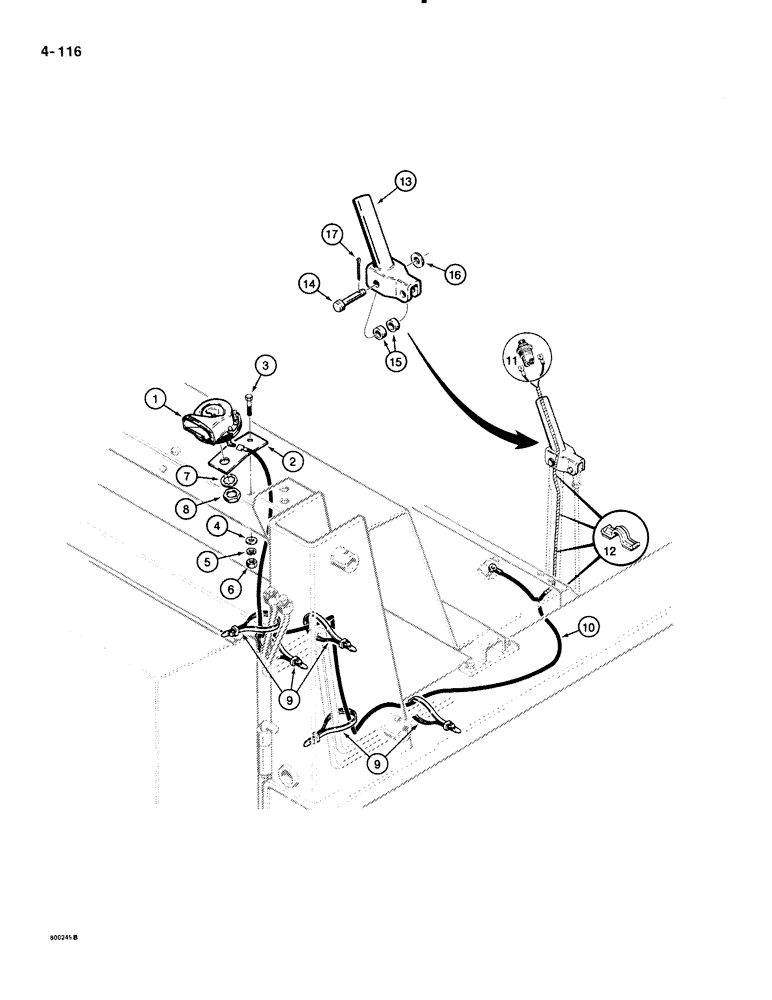

Запчасти Case IH 1835B (4-116) - HORN (04) - ELECTRICAL SYSTEMS

1

D123205

HORN

12 volt

1шт.

2

D70122

BRACKET

horn mounting

1шт.

3

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

4

195-521

WASHER,5/16", SAE

flat, 5/16", plated

1шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

6

9635082

NUT,5/16" - 18, Gr 5

1шт.

7

193-75

LOCK WASHER,7/8"

WASHER internal tooth lock, , plated 7/8"

1шт.

8

L30866

LOCK NUT

special

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.

10

D123752

HARNESS

horn

1шт.

11

D91440

SWITCH

BUTTON horn

1шт.

12

F93268

CLIP

harness

4шт.

13

D93384

HANDLE

control, right hand, used on models with horn, Replaces: D65261, Standard handle

1шт.

14

141-59

CLEVIS PIN,3/8" x 2 1/4"

handle

1шт.

15

D33551

BUSHING

SPACER handle

2шт.

16

195-525

WASHER,3/8", SAE

flat, 3/8", plated

2шт.

17

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.
