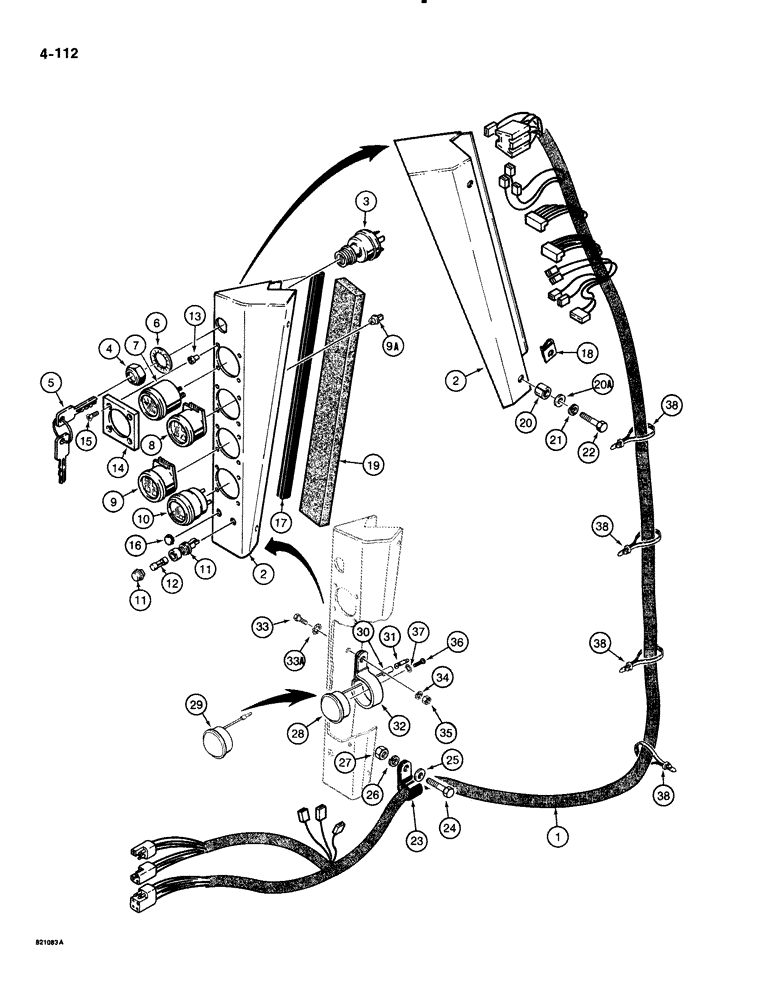

Запчасти Case IH 1835B (4-112) - ELECTRICAL SYSTEM, FRONT HARNESS, GAUGES, AND SWITCHES (04) - ELECTRICAL SYSTEMS

1

D123654

HARNESS

front

1шт.

2

D123910

PANEL

instrument

1шт.

3

D134737

IGNITION SWITCH

SWITCH ignition, includes two keys, Includes: Ref. 4-5

1шт.

4

A77314

NUT

switch mounting

1шт.

5

A77313

SET OF 2 KEYS

KEY ignition switch, set of two; metal without padding

1шт.

6

193-37

LOCK WASHER,Int Tooth, 1"

WASHER, LOCK, Int Tooth, 1"

1шт.

7

D121645

FUEL GAUGE

GAUGE fuel

1шт.

8

D123591

GAUGE

warning, upper

1шт.

9

D123592

GAUGE

warning, lower, Includes: Ref. 9A

1шт.

9a

N8320

BULB

D123592 and D123591 warning lamps

4шт.

Ref. #9A - bulb is a GE #658 - 24V

1шт.

10

D121644

GAUGE

HOURMETER engine

1шт.

11

A22874

HOLDER

fuse

1шт.

12

223-27

FUSE,20 Amp, Type 3AG

20 ampere

1шт.

13

D121600

ISOLATOR

cover mounting screw

16шт.

14

D121637

COVER

warning lamps and gauges

4шт.

15

179-164

SCREW,Cross Oval Hd, #6 - 32 x 7/8"

MACHINE SCREW Phillips head, No. 6 - 32 NC x 7/8", Teflon coated

16шт.

16

L18398

HOLE PLUG BUTTON,13/32"

PLUG , 10 mm diameter hole 13/32"

1шт.

17

D123920

CHANNEL

trim, instrument panel

1шт.

18

131-863

SPRING NUT,Tinn, U, 5/16"-18

U-type, 5/16" - 18 NC

2шт.

Ref #18 - Replaced by 131-124 or 131-134 03/21/96

1шт.

19

D123919

SEAL

instrument panel

1шт.

20

D76211

SPACER

instrument panel to ROPS frame

2шт.

20a

195-521

WASHER,5/16", SAE

flat, 5/16", plated

2шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

22

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

23

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

harness

1шт.

24

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

25

195-525

WASHER,3/8", SAE

flat , 3/8", plated

1шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

28

L103666

ALARM

engine oil pressure, General Constructors No. 16005051, no longer available, order D126995 for service, if used

1шт.

29

D126995

BUZZER

ALARM engine oil pressure, General Constructors No. 16005051-BT, if used

1шт.

30

223-125

TUBE

SHRINK TUBING alarm, used with L103666 alarm

1шт.

31

L11778

CONNECTOR, ELEC

CONNECTOR male, bullet, used with L103666 alarm

1шт.

32

D120561

CLAMP

alarm

1шт.

33

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

33a

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.

34

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

35

9635082

NUT,5/16" - 18, Gr 5

1шт.

36

182-81

SCREW,Slotted Pan Hd, #8-32 x 3/16"

MACHINE SCREW slotted pan head, No. 8 - 32 NC x 3/16"

1шт.

37

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, Ext, #8

1шт.

38

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

4шт.
