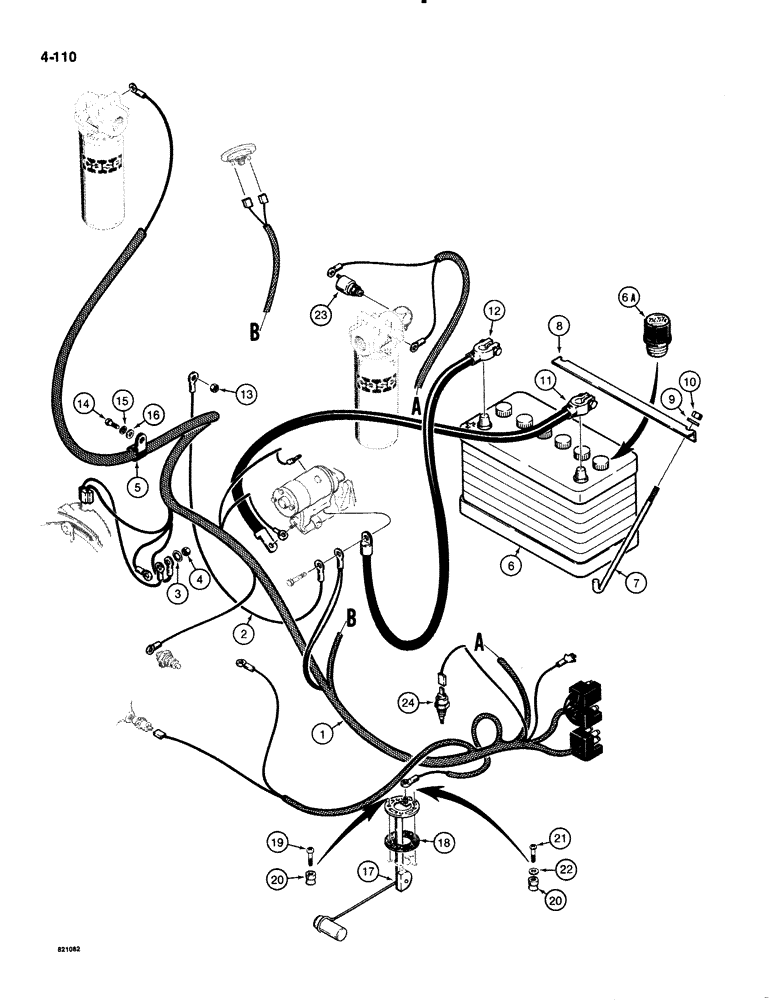

Запчасти Case IH 1835B (4-110) - ELECTRICAL SYSTEM, REAR HARNESS AND BATTERY (04) - ELECTRICAL SYSTEMS

1

D124245

HARNESS

rear, gasoline models

1шт.

1

D124244

HARNESS

rear, diesel models

1шт.

2

D87572

ELECTRICAL WIRE

WIRE ground, Serial Range: engine-frame

1шт.

3

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

4

825-1106

NUT,Hex, M6, Cl 8

hex, 6 mm - 1

1шт.

5

49854

CLAMP

harness

1шт.

6

T40362

BATTERY

12 volt, gasoline models, service replacement, must be used, with A60553 nonspill caps

1шт.

When replacing T40362 or A38411 battery, retain nonspill caps for service of new battery or order six new A60553 caps.

1шт.

6

A38411

DRY BATTERY

12 volt, diesel models, service replacement, must be used with, A60553 nonspill caps

1шт.

When replacing T40362 or A38411 battery, retain nonspill caps for service of new battery or order six new A60553 caps.

1шт.

6a

A60553

CAP

battery, nonspill

6шт.

7

D90467

BOLT

battery hold down

2шт.

8

D59706

ANGLE

battery hold down, gasoline models

1шт.

8

D84224

BRACKET

ANGLE battery hold down, diesel models

1шт.

9

195-525

WASHER,3/8", SAE

flat, 3/8", plated

2шт.

10

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self locking, 3/8" - 16 NC, plated, battery hold down

2шт.

11

D64166

CABLE

battery, negative terminal

1шт.

12

D89261

CABLE

battery, positive terminal, gasoline models

1шт.

12

D125843

CABLE

battery, positive terminal, diesel models

1шт.

13

25-146

JAM NUT,Jam, 3/8"-16, G5

hex, jam, 3/8" - 16 NC

1шт.

14

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

hex head, 1/4" - 20 NC x 5/8", plated

1шт.

15

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

16

195-518

WASHER,1/4", SAE

flat, 1/4", plated

1шт.

17

L110128

TRANSMITTER

SWITCH fuel level

1шт.

18

A11822

GASKET

fuel level switch

1шт.

19

182-553

SCREW,Cross Pan Hd, #10-32 x 5/8"

MACHINE SCREW pan Phillips head, No. 10 - 32 NF x 5/8", plated

1шт.

20

D123827

NUT

INSERT threaded, No. 10 - 32 NF

5шт.

21

D75465

SCREW,#10 - 32 x 5/8"

special

4шт.

22

D83885

WASHER

special

1шт.

23

D123864

SWITCH

transmission pressure

1шт.

24

D70163

SWITCH,1/4" - 18 NPT, 230 Degrees F

transmission temperature

1шт.
