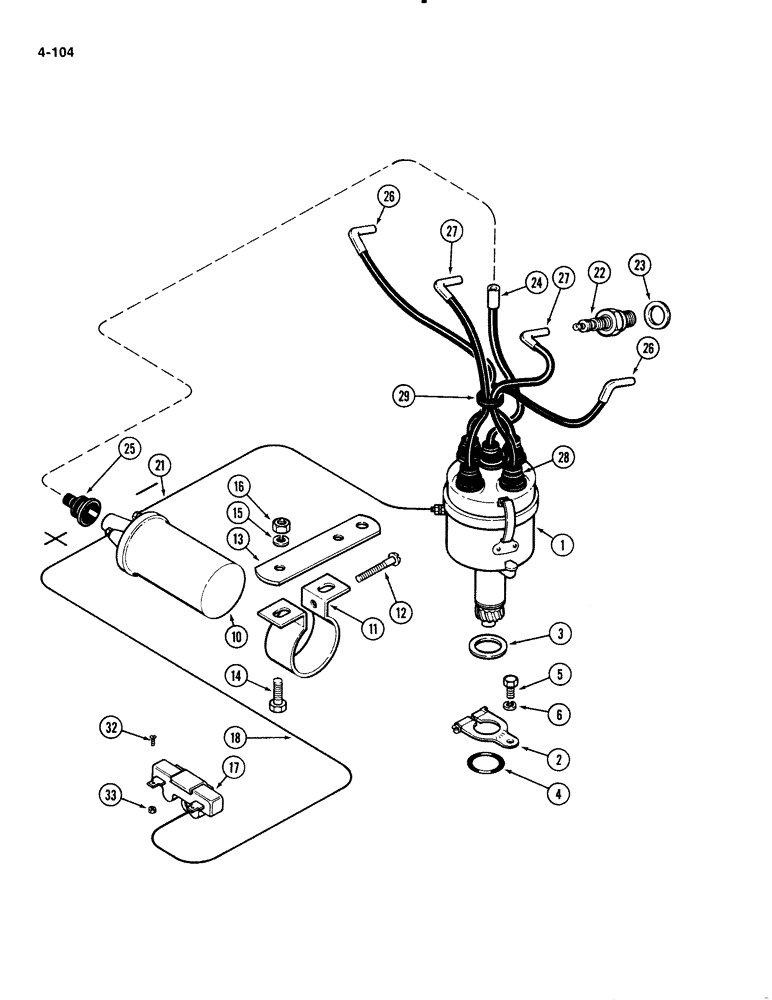

Запчасти Case IH 1835B (4-104) - SPARK IGNITION SYSTEM, 148B SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

DISTRIBUTOR ASSEMBLY engine, See Fig. 4-106

1шт.

2

A29989

ARM

ASSEMBLY advance

1шт.

3

A30080

THRUST WASHER

thrust, advance arm

1шт.

4

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

distributor to block

1шт.

5

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

6

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

10

A40778

COIL

ignition, 12 volt

1шт.

11

G46106

BRACKET

coil mounting

1шт.

12

187-540

SCREW round head self tapping, No. 10 x 1-1/2 inch

1шт.

13

G11705

BRACKET

STRAP coil support

1шт.

14

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

2шт.

17

A143357

RESISTOR

coil ballast, Prestolite 201021

1шт.

18

A150039

ELECTRICAL WIRE

WIRE resistor to coil, 7 inch white, 178 mm

1шт.

21

G13085

ELECTRICAL WIRE

WIRE coil to distributor, 12 inch, 305 mm

1шт.

22

G44840

SPARK PLUG

PLUG ASSEMBLY spark, Includes gasket

4шт.

22

A150638

SPARK PLUG

PLUG ASSEMBLY spark, radio suppression, Includes: Ref. 23

4шт.

23

G46839

GASKET

, Serial Range: plug-block

1шт.

24

A62857

ELECTRICAL WIRE

WIRE coil to distributor, 12-1/2 inch, 318 mm

1шт.

25

G46803

BOOT

NIPPLE, Serial Range: wire-coil

1шт.

26

A51509

CABLE

WIRE distributor to plug, 12 inch, 305 mm

2шт.

27

A51510

CABLE

WIRE distributor to plug, 8-3/4 inch, 222 mm

2шт.

28

A29338

COVER

NIPPLE, Serial Range: wire-distributor

5шт.

29

A30109

WASHER

RING wire harness

1шт.

32

173-278

SCREW,Sl Rnd Hd, #6 - 32 x 3/8", Brass

round head, No. 6 NC x 3/8 inch

1шт.

33

193-1003

NUT,Keps, w/LW,#6-32

hex Keps, No. 6 NC

1шт.
