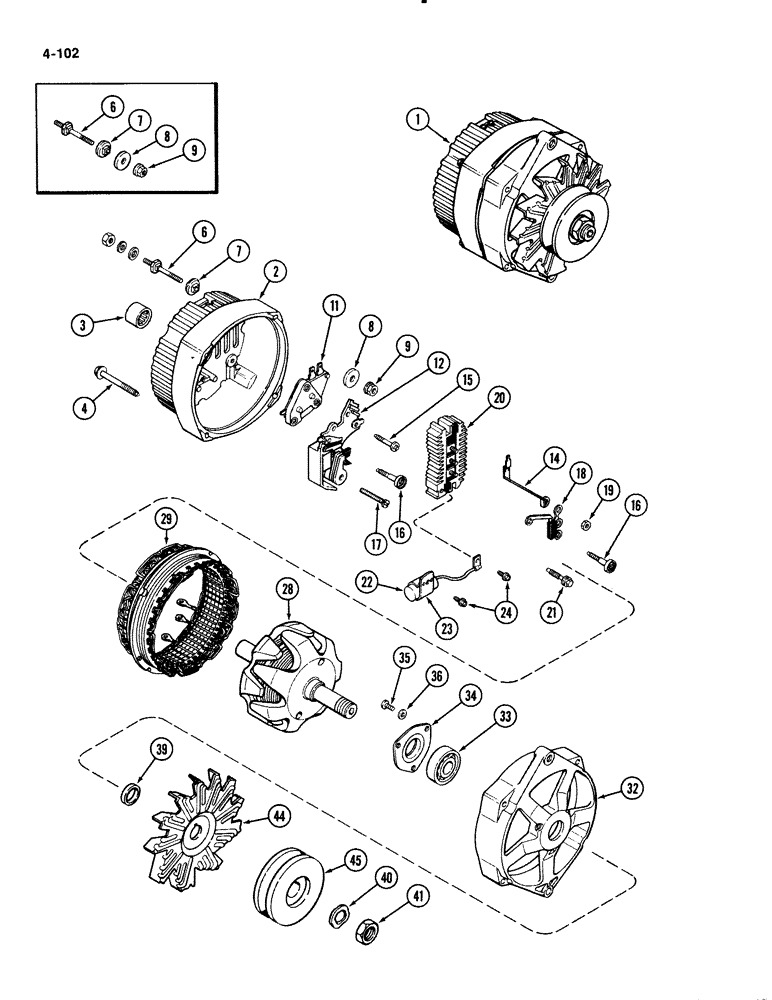

Запчасти Case IH 1835B (4-102) - L102693 ALTERNATOR, USES METRIC HARDWARE (04) - ELECTRICAL SYSTEMS

1

L102693

ALTERNATOR ASSEMBLY Delco-Remy No. 1103125, JI Case Installed, Order A47623 alternator, A43384 fan and A51561 pulley, Includes: Ref. 2-41

1шт.

A47623

ALTERNATOR

ALTERNATOR ASSEMBLY Delco-Remy No. 1103133, Used for repairs only, Order A46932, fIG. 4-100, Includes: Ref. 2-4

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

87297245

CORE-ALTERNATOR

Return Number, Alternator

1шт.

103802A1R

REMAN-ALTERNATOR

Reman For New P/N A47623

1шт.

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

2

A47595

FRAME

FRAME ASSELBLY lip ring end

1шт.

3

A47578

ROLLER BEARING,0.6694" ID x 0.937" OD x 0.73"

BEARING roller

1шт.

4

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

BOLT hex through, No. 10-24 x 1-3/4 inch, with washer

4шт.

5

A47597

TERMINAL CONNECTOR

TERMINAL KIT battery, Includes: Ref. 6-9

1шт.

6

NSS

NOT SOLD SEPARAT

STUD terminal

1шт.

7

NSS

NOT SOLD SEPARAT

INSULATOR

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER insulating

1шт.

9

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY

2шт.

11

A45213

REGULATOR

REGULATOR voltage

1шт.

12

A47042

HOLDER

HOLDER ASSEMBLY brush, Includes: Ref. No. A47987

1шт.

A47987

BRUSH, COMMUTATOR

BRUSH BRUSH alternator

2шт.

14

A47045

TERMINAL CONNECTOR

TERMINAL relay

1шт.

15

A47043

SCREW,#8 - 32 x 21"

SCREW brush holder, grounded

1шт.

16

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW brush holder, insulated

2шт.

17

182-558

SCREW,Slotted Pan Hd, #8-32 x 1 1/4"

SCREW brush holder attaching

1шт.

18

A48339

DIODE

DIODE trio

1шт.

19

129-16

NUT,#8-32

NUT, #8-32

3шт.

20

A45394

RECTIFIER

RECTIFIER BRIDGE alternator

1шт.

21

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW rectifier bridge attaching

1шт.

22

A47734

CAPACITOR

CAPACITOR alternator

1шт.

23

A45227

CLAMP

BRACKET capacitor mounting

1шт.

24

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW capacitor bracket and lead

2шт.

28

A47047

ROTOR

ROTOR ASSEMBLY alternator

1шт.

29

A45233

STATOR

STATOR ASSEMBLY alternator

1шт.

32

A46933

FRAME

FRAME drive end

1шт.

33

A49389

BEARING ASSY

BEARING ball, drive end

1шт.

34

A44433

PLATE

PLATE bearing retaining

1шт.

35

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

SCREW bearing plate retaining

3шт.

36

195-512

WASHER,#10

WASHER flat, 7/32 x 7/16 x 1/16 inch, 6 x 11 x 2 mm

3шт.

39

A49733

COLLAR

COLLAR rotor shaft

1шт.

40

R16171

SPRING WASHER

WASHER lock, pulley nut

1шт.

41

A25546

NUT

NUT pulley and fan retaining

1шт.

44

A43384

FAN

FAN ventilating

1шт.

45

A51561

PULLEY

PULLEY drive

1шт.
