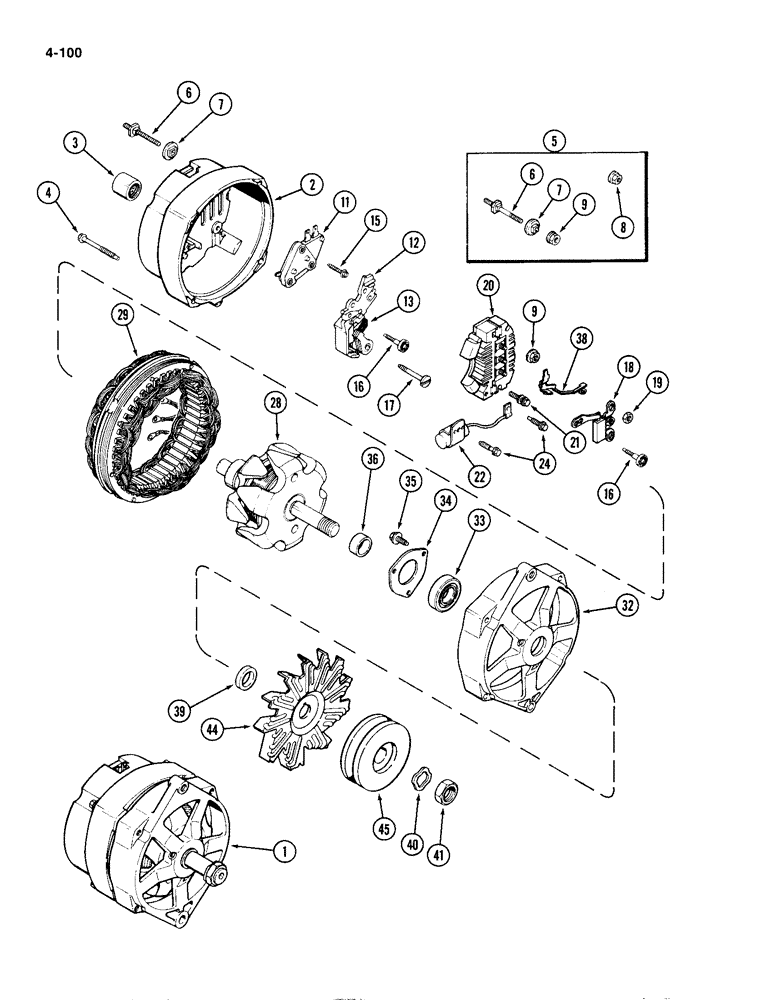

Запчасти Case IH 1835B (4-100) - A167153 ALTERNATOR (04) - ELECTRICAL SYSTEMS

A167153

ALTERNATOR

ALTERNATOR ASSEMBLY 63 ampere, Delco No. 11051604, JI Case Installed, Order A46932, A51560 and A51561

1шт.

1

A46932

ALTERNATOR

ALTERNATOR ASSEMBLY engine, Service only, Includes: Ref. 2-41

1шт.

1

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

1

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator 12 Volts 63 Ampere

1шт.

1

103798A1C

CORE-ALTERNATOR

Return Number

1шт.

1

87297244

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

87297245

CORE-ALTERNATOR

Return Number, Alternator

1шт.

1

103799A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volts 63 Ampere

1шт.

1

103799A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103801A1R

REMAN-ALTERNATOR

Reman For New PN A46932

1шт.

1

103801A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103802A1R

REMAN-ALTERNATOR

Reman For New PN A46932

1шт.

1

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

1

A186125

ALTERNATOR

Alternator, 14V, 65 Amp

1шт.

1

AR186125GV

ALTERNATOR

Value

1шт.

1

AR186125

REMAN-ALTERNATOR

Reman For New PN A186125

1шт.

1

AC186125

CORE-ALTERNATOR

Return Number

1шт.

2

A47595

FRAME

FRAME ASSEMBLY slip ring end

1шт.

3

A47578

ROLLER BEARING,0.6694" ID x 0.937" OD x 0.73"

BEARING roller

1шт.

4

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

BOLT hex through, No. 10-24 x 1-3/4 inch

4шт.

5

A47597

TERMINAL CONNECTOR

TERMINAL KIT battery, Includes: Ref. 6-9

1шт.

6

NSS

NOT SOLD SEPARAT

STUD terminal

1шт.

7

NSS

NOT SOLD SEPARAT

INSULATOR terminal

1шт.

8

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY terminal

1шт.

9

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY terminal

1шт.

11

A45213

REGULATOR

REGULATOR voltage

1шт.

12

A47042

HOLDER

HOLDER ASSEMBLY brush, Includes: Ref. 13

1шт.

13

A47987

BRUSH, COMMUTATOR

BRUSH BRUSH alternator

2шт.

15

A47043

SCREW,#8 - 32 x 21"

SCREW brush holder, grounded

1шт.

16

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW brush holder, insulated

1шт.

17

A47581

SCREW,#8 - 32 x 1.43"

SCREW brush holder, retaining

1шт.

18

A48339

DIODE

DIODE trio

1шт.

19

129-16

NUT,#8-32

NUT, #8-32

3шт.

20

A46942

ELEC CONNECTOR

RECTIFIER BRIDGE alternator

1шт.

21

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW rectifier bridge attaching

1шт.

22

A47734

CAPACITOR

CAPACITOR alternator

1шт.

24

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW capacitor bracket

2шт.

28

A46935

ROTOR

ROTOR ASSEMBLY alternator

1шт.

29

A46936

STATOR

STATOR ASSEMBLY alternator

1шт.

32

A46933

FRAME

FRAME drive end

1шт.

33

A49389

BEARING ASSY

BEARING ball, drive end

1шт.

34

R15101

PLATE

PLATE bearing retainer

1шт.

35

A46941

SCREW,Hex Washer, #10 - 24 x 0.52"

SCREW bearing plate retaining

3шт.

36

A48261

COLLAR

COLLAR rotor shaft, inner

1шт.

38

A46931

TERMINAL CONNECTOR

TERMINAL relay

1шт.

39

A49733

COLLAR

COLLAR rotor shaft, outer

1шт.

40

R16171

SPRING WASHER

WASHER lock, pulley nut

1шт.

41

A25546

NUT

NUT pulley and fan retaining

1шт.

44

A51560

FAN

FAN alternator ventilating

1шт.

45

A51561

PULLEY

PULLEY drive

1шт.
