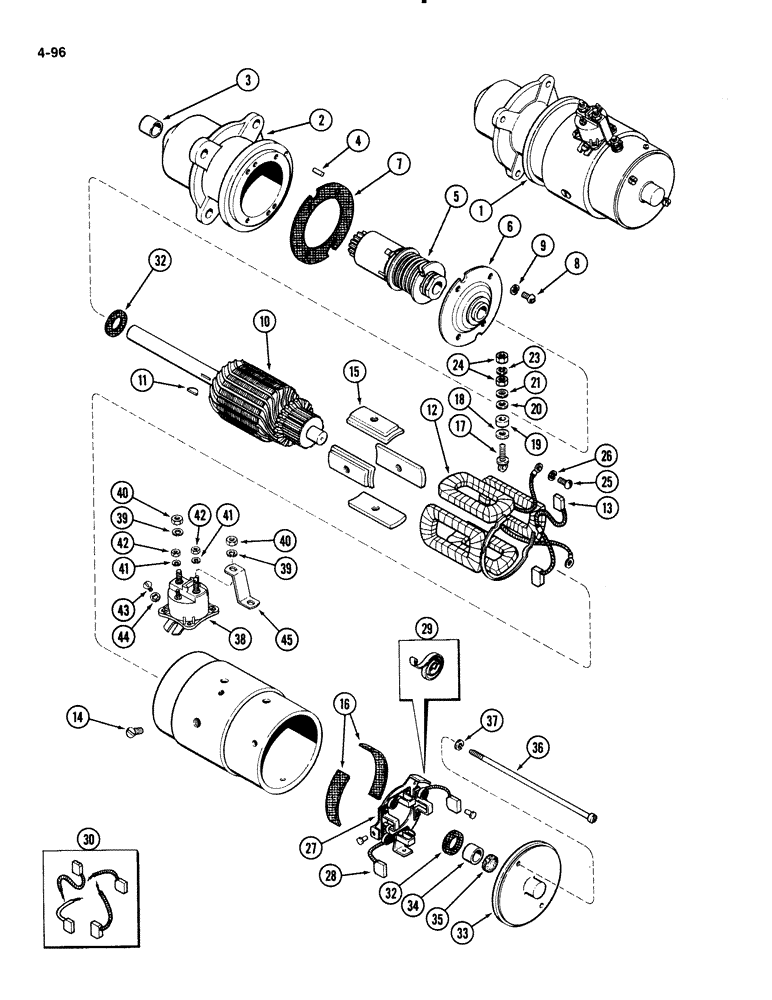

Запчасти Case IH 1835B (4-096) - 148B SPARK IGNITION ENGINE, D124795 STARTER (04) - ELECTRICAL SYSTEMS

1

A47462

REMAN-STARTER

STARTER ASSEMBLY engine, remanufactured

1шт.

1

A47463

CORE-STARTER

Return Part Number use this number to return starter core for credit

1шт.

1

D124795

STARTING MOTOR

STARTER ASSEMBLY engine, new, Prestolite, Replaces: A51910, Includes: Ref. 2-45

1шт.

1

104202A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104202A1C

CORE-STARTER

Return Part Number

1шт.

2

A25610

HOUSING

HOUSING ASSEMBLY drive end, Includes: Ref. 3-4

1шт.

3

A25611

BEARING

BEARING armature shaft

1шт.

4

NSS

NOT SOLD SEPARAT

PIN locating

1шт.

5

A40272

DRIVE

DRIVE ASSEMBLY starter

1шт.

6

A43257

BUSHING

PLATE ASSEMBLY intermediate bearing

1шт.

7

G46910

GASKET

GASKET bearing plate

1шт.

8

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

SCREW round head, No. 10-32 x 7/16 inch

4шт.

9

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

10

A44996

ARMATURE

SPARE PART ARMATURE starter

1шт.

11

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

WOODRUFF KEY, #6, 5/32" x 5/8", HT

1шт.

12

A25604

PACKAGE

COIL ASSEMBLY field, Includes: Ref. 13

1шт.

13

NSS

NOT SOLD SEPARAT

BRUSH coil, Order Ref. 30

2шт.

14

NSS

NOT SOLD SEPARAT

SCREW pole shoe

4шт.

15

NSS

NOT SOLD SEPARAT

SHOE pole

4шт.

16

NSS

NOT SOLD SEPARAT

INSULATION coil

2шт.

NLS

NO LONGER SERVICED

PLATE, LARGE TERMINAL KIT field stud, Includes: Ref. 17-26

1шт.

17

NSS

NOT SOLD SEPARAT

STUD field terminal

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER insulating inner

1шт.

19

NSS

NOT SOLD SEPARAT

BUSHING insulating

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER insulating, outer

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER steel

1шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

1шт.

25

182-545

SCREW,Slotted Pan Hd, #8-32 x 5/16"

SCREW pan head, No. 8-32 x 3/8 inch

1шт.

26

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

27

A25612

PLATE

PLATE ASSEMBLY brush carrier, Includes: Ref. 28-29

1шт.

28

NSS

NOT SOLD SEPARAT

BRUSH starter, Order Ref. 30

2шт.

29

A40275

SPRING

SPRING KIT brush, Set of 4

1шт.

30

A25603

BRUSH SET

BRUSH SET starter, Set of 4

1шт.

A40277

KIT

KIT thrust washer, Includes: Ref. 32

1шт.

32

NSS

NOT SOLD SEPARAT

WASHER 1/32 inch, 0.79 mm

4шт.

32

NSS

NOT SOLD SEPARAT

WASHER 3/64 inch, 1.19 mm

4шт.

33

A40274

HEAD

HEAD ASSEMBLY commutator end, Includes: Ref. 34-35

1шт.

34

NSS

NOT SOLD SEPARAT

BUSHING armature shaft

1шт.

35

NSS

NOT SOLD SEPARAT

FELT oiler

1шт.

36

A25601

SCREW

BOLT through

2шт.

37

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

38

A48923

SOLENOID

SOLENOID ASSEMBLY starter, Includes: Ref. 39-42

1шт.

39

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

40

129-122

NUT,5/16"-24, G5

NUT, 5/16"-24, G5

2шт.

41

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

42

129-37

NUT,#10-32

NUT, #10-32

1шт.

43

174-93

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

SCREW round head, No. 10-32 x 1/4 inch

2шт.

44

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

45

A48922

CONNECTOR, ELEC

CONNECTOR CONNECTOR, Serial Range: solenoid-field

1шт.
